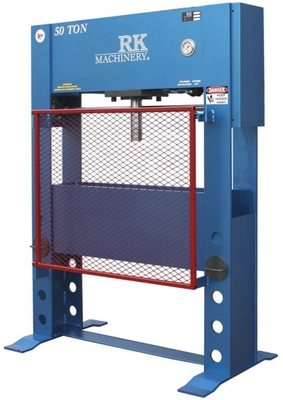

RK HYDRAULIC H-FRAME PRESS, MODEL HFP-50T XW

FEATURES
Electric/Hydraulic operation provides smooth, consistent pressing action
Open sides to facilitate work on long pieces
Flat ram nose can be easily changed to allow the user to adapt the press to a specific job
Quality Baldor motor, low speed
Low speed pump – quiet dependable operation

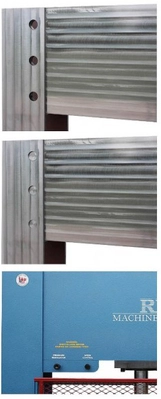

Self-locking table design eliminates lateral movement
Powered moveable workhead for off-center work allows operator to position the cylinder from left to right with the touch of a lever
Hydraulic power-lift for vertical displacement of table

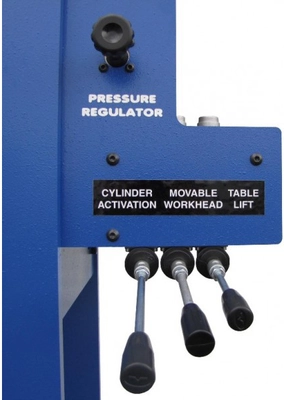

Pressure regulator to limit the ram pressure
Cylinder activation is fingertip controlled, the more the hand lever is engaged the more the ram movement is accelerated. This allows the operator to control the proper speed for the task
High capacity 10 GAL. hydraulic oil reservoir
Low pressure hydraulic system maintains lower oil temperatures, resulting in higher efficiency and safer operation
Double-acting cylinder permits pulling as well as pressing ram action
Extra wide 42″ instead of 32″ between uprights

Stroke Length: 12"

Max. Distance Ram to Table: 32"

Distance between Frames left to right: 54"

Distance between frames front to back: 10"

Cylinder Bore: 6"

Ram Speed: 20 IPM (Pressing), 24 IPM (Return)

Motor: 5 HP, 230V, 1 Phase

Weight: 1,800 lbs

Dimensions: 50"L x 88"W x 101"H

F.O.B.: Mississauga, ON
