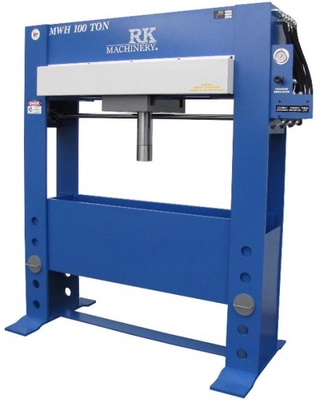

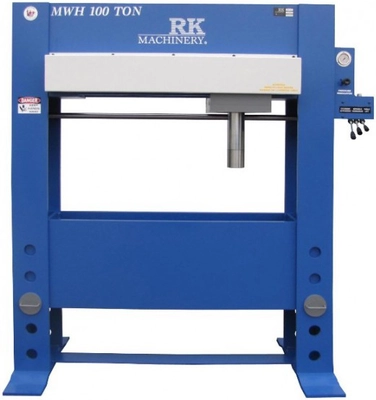

RK HYDRAULIC H-FRAME PRESS, MODEL HFP-100T XW

Capacity: 100 Ton
FEATURES
Electric / Hydraulic operation provides smooth, consistent pressing action
Open sides to facilitate work on long pieces

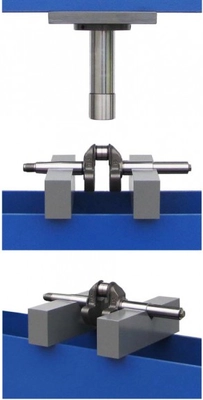

Flat ram nose can be easily changed to allow the user to adapt the press to a specific job
Quality Baldor motor, low speed
Low speed pump – quiet, dependable operation

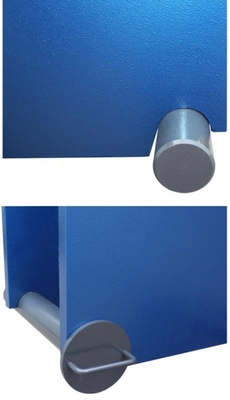

Self-locking table design eliminates lateral movement
Powered movable workhead for off-center work allows operator to position the cylinder from left to right with the touch of a lever
Hydraulic power-lift for vertical displacement of table

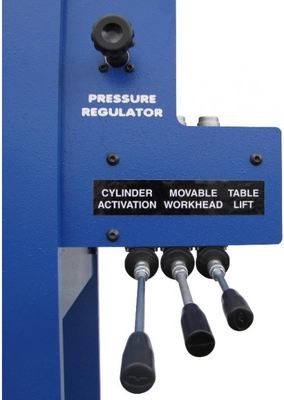

Pressure regulator to limit the ram pressure
Cylinder activation is fingertip controlled, the more the hand lever is engaged the more the ram movement is accelerated, allowing the operator to control the proper speed for the task
High capacity 15 Gallon hydraulic oil reservoir
Low pressure hydraulic system maintains low oil temperatures, resulting in higher efficiency as safer operation

Stroke Length: 12"

Bore of Ram: 8"

Max. Distance Ram to Table: 30"

Distance between Frames left to right: 54"

Distance between frames front to back: 13"

Ram Speed: 20 IPM (Pressing), 26 IPM (Return)

Motor: 10 HP, 575/3/60

Weight: 3,400 lbs

Dimensions: 50"L x 88"W x 103"H

F.O.B.: Mississauga, ON
