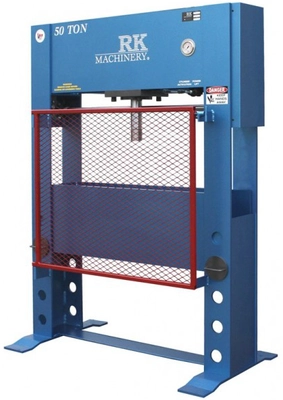

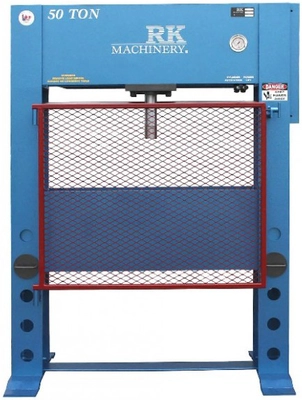

RK HYDRAULIC H-FRAME PRESS, MODEL HFP-50T

Capacity: 50 Tons
FEATURES
Electric / Hydraulic operation provides smooth, consistent pressing action
Open sides to facilitate work on long pieces

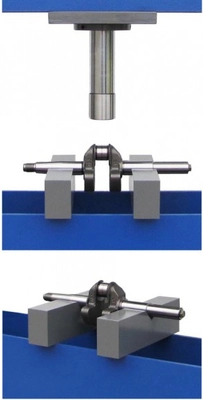

Flat ram nose can be easily changed to allow the user to adapt the press to a specific job
Quality Baldor motor, low speed
Low speed pump – quiet, dependable operation

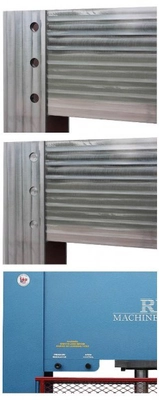

Self-locking table design eliminates lateral movement
Double-acting cylinder permits pulling as well as pressing ram action
Hydraulic power-lift for vertical displacement of table

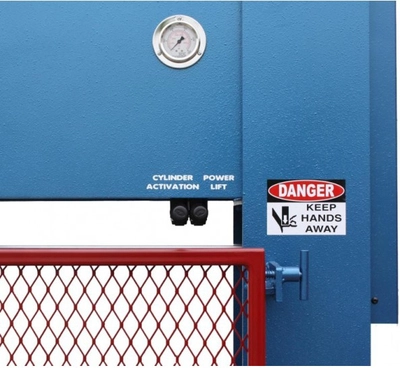

Cylinder activation is fingertip controlled, the more the hand lever is engaged the more the ram movement is accelerated, allowing the operator to control the proper speed for the task
High capacity 10 Gallon hydraulic oil reservoir
Low pressure hydraulic system maintains low oil temperatures, resulting in higher efficiency as safer operation

Stroke Length: 12"

Max. Distance Ram to Table: 32"

Distance between Frames left to right: 42"

Distance between frames front to back: 10"

Cylinder Bore: 6"

Ram Speed: 20 IPM (Pressing), 24 IPM (Return)

Motor: 5 HP, 230 V, Single Phase

Weight: 1,200 lbs

Dimensions: 48"L x 62"W x 88"H

F.O.B.: Mississauga, ON
