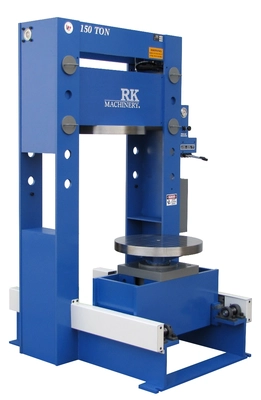

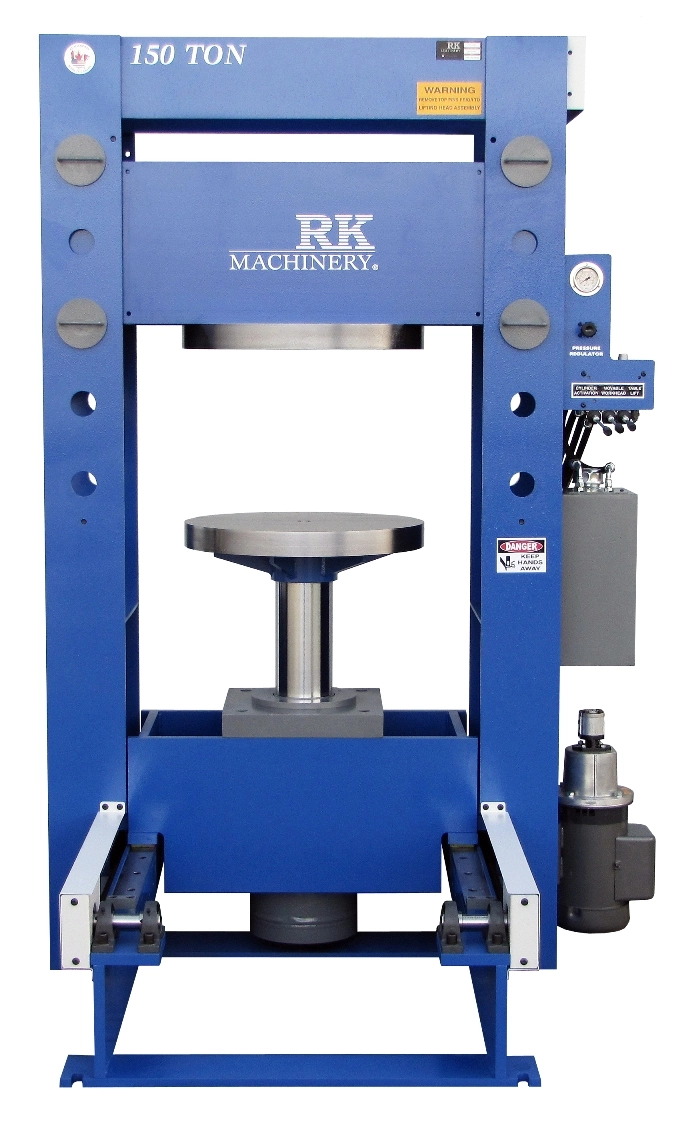

USED RK PRESSES FTP-150 RI

STANDARD FEATURES

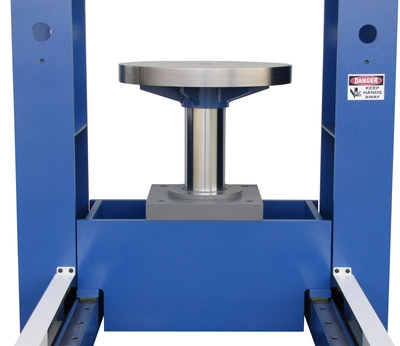

Roll-in table for easy loading and unloading outside of the pressing area
Large cylinder rod provides platen stability and longer seal life
Low pressure hydraulic system maintains lower oil temperatures, resulting in higher efficiency and safer operation
Double-acting cylinder permits pressing as well as return

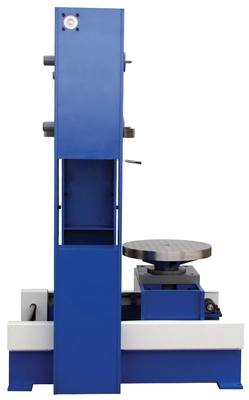

Hydraulic power-lift for vertical displacement of head assembly, 16” travel

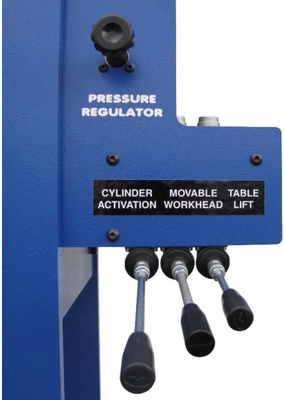

Cylinder activation is fingertip controlled, the more the hand lever is engaged the more the ram movement is accelerated. This allows the operator to control the proper speed for the task
Pressure regulator to limit the ram pressure
High capacity 6 GAL. hydraulic oil reservoir
All hydraulic and mechanical parts are standard in the industry, and available throughout North America.

MODEL: FTP-150 RI

POWER: 5 HP, 1 phase

BORE: 10"

CYLINDER STROKE: 12"

ROD: 6"

RAM SPEED: -PRESS: 7 IPM    -RETURN: 11 IPM

CAPACITY: 150 TONS

WEIGHT: 5,200 LBS

DIMENSIONS (LxWxH): 66" x 70" x 102"
