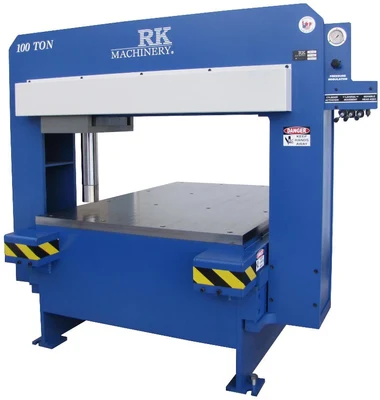

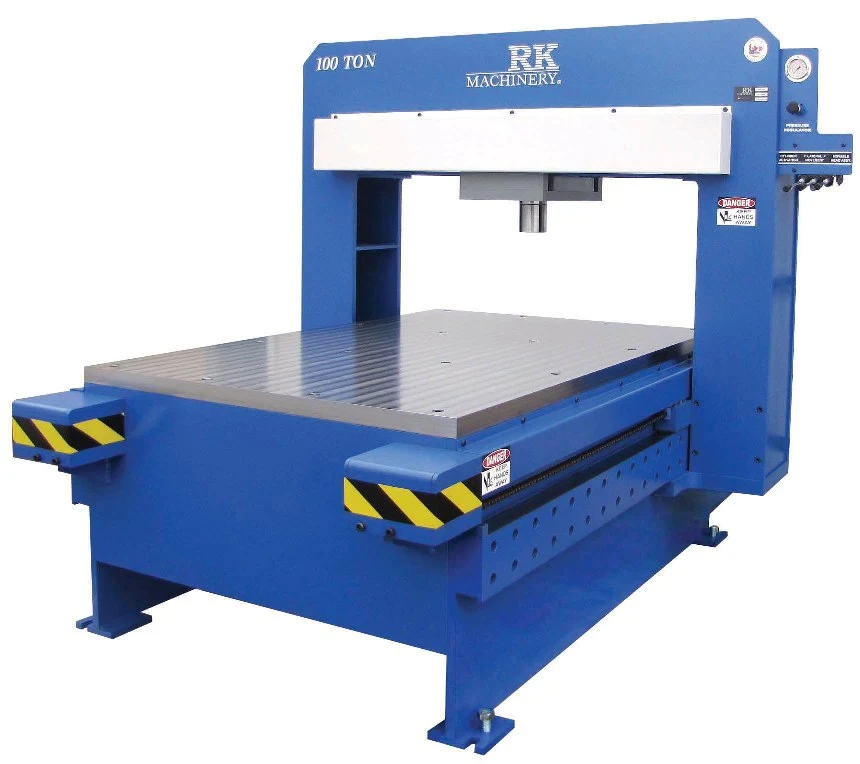

USED RK PRESSES GSP-100 46
Overview
STANDARD FEATURES:
Powered moveable workhead for off-center work allows operator to position the cylinder from left to right and front to back with the touch of a lever.

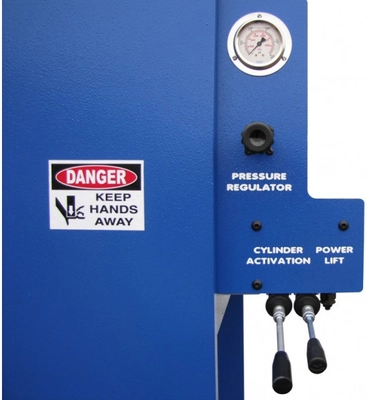

Cylinder activation is fingertip controlled, the more the hand lever is engaged the more the ram movement is accelerated. This allows the operator to control the proper speed of the task.
Pressure regulator to limit the ram pressure

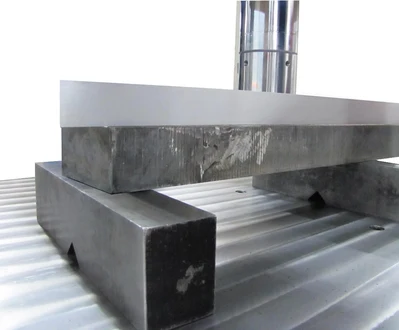

Flat ram nose can be easily changed to allow the user to adapt the press to a specific job
Low pressure hydraulic system maintains lower oil temperatures, resulting in higher efficiency and safer operation
All hydraulic and mechanical parts are standard in the industry, and available throughout North America.
OPTIONS:
Moveable pedestal with height adjustment for ease and comfort of operator
Specs
MODEL: GSP-100 46
POWER: 10 HP, 3 phase
TABLE: 48" x 72"
BORE: 8"
STROKE: 12"
RAM SPEED: -PRESS: 20 IPM RETURN: 26 IPM
CAPACITY: 100 TONS
WEIGHT: 10,000 LBS
DIMENSIONS (LxWxH): 88" x 108" x 80"
