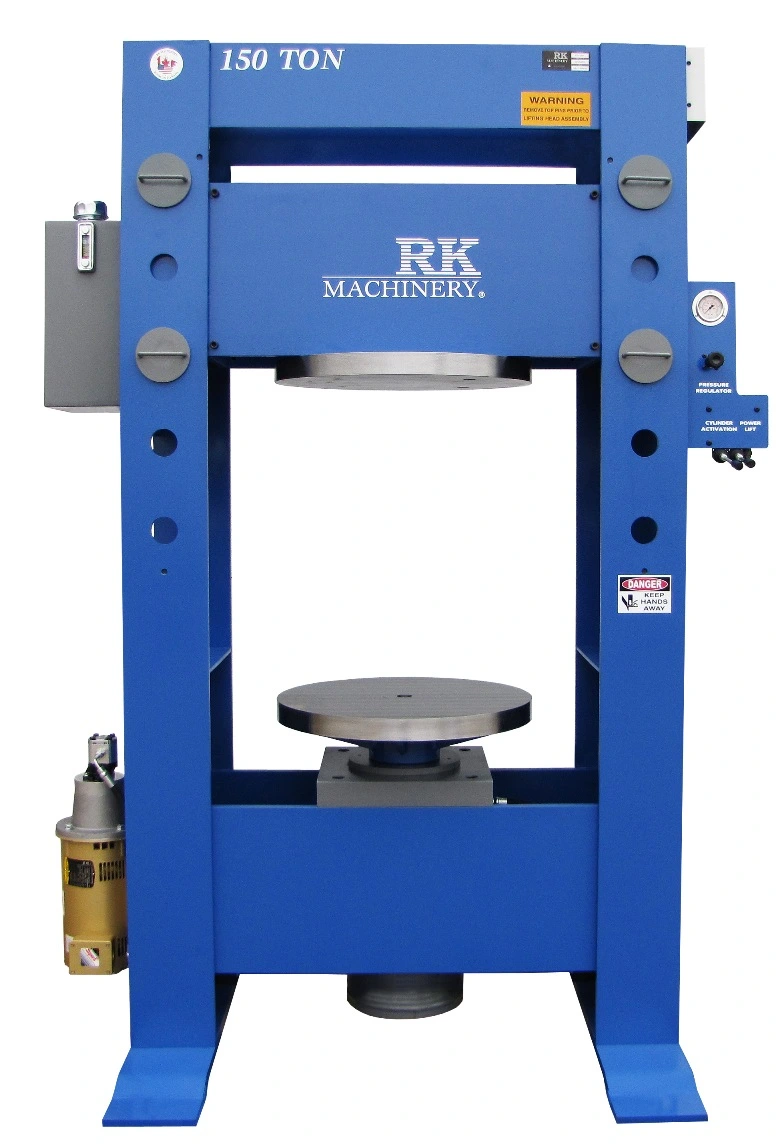

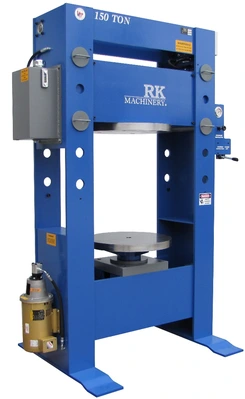

USED RK PRESSES FTP-150

STANDARD FEATURES
Large cylinder rod provides platen stability and longer seal life
Low pressure hydraulic system maintains lower oil temperatures, resulting in higher efficiency and safer operation
Double-acting cylinder permits pressing as well as return
Hydraulic power-lift for vertical displacement of head assembly, 16” travel

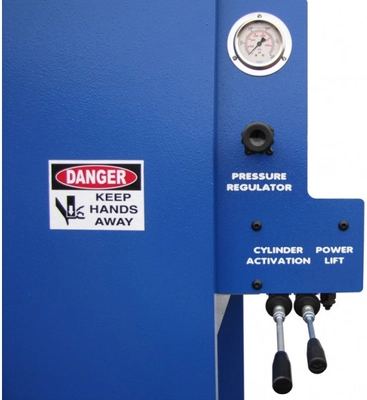

Cylinder activation is fingertip controlled, the more the hand lever is engaged the more the ram movement is accelerated. This allows the operator to control the proper speed for the task
Pressure regulator to limit the ram pressure
High capacity 6 GAL. hydraulic oil reservoir
All hydraulic and mechanical parts are standard in the industry, and available throughout North America

MODEL: FTP-150

POWER: 5 HP, 230 1 phase

BORE: 10"

CYLINDER STROKE: 12"

ROD: 6"

RAM SPEED: -PRESS: 7 IPM -RETURN: 11 IPM

CAPACITY: 150 TONS

WEIGHT: 4,600 LBS

DIMENSIONS (LxWxH): 58" x 76" x 103"
