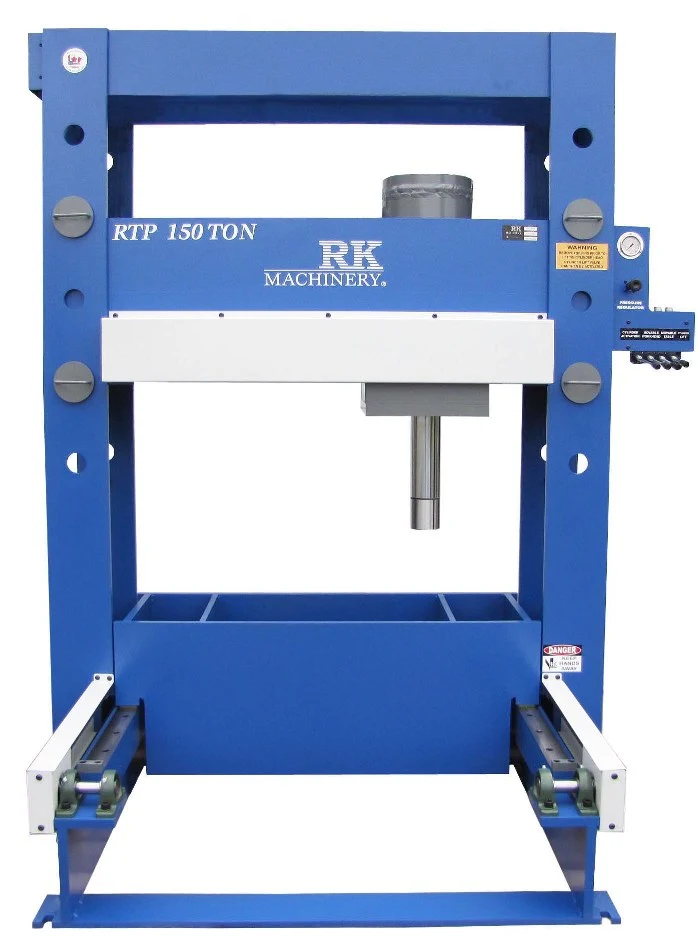

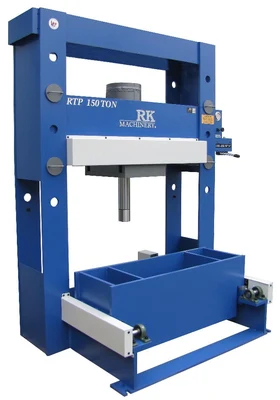

USED RK PRESSES RTP-150

OPTIONS
STANDARD FEATURES
Powered movable table for ease of loading & positioning workpiece under cylinder
 Powered movable workhead for off-center work allows to position the cylinder from left to right with the touch of a lever
Hydraulic power-lift for vertical displacement of head assembly

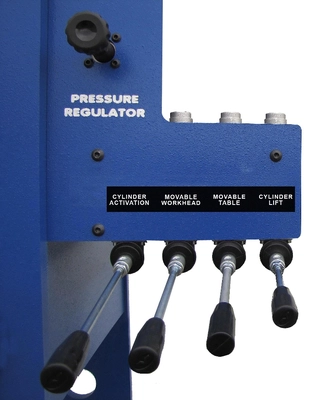

Cylinder activation is fingertip controlled, the more the hand lever is engaged, the more the ram movement is accelerated. This allows the operator to control the proper speed for the task
Pressure regulator to limit the ram pressure

MODEL: RTP-150

POWER: 10 HP, 3 Phase

BORE: 10"

STROKE: 16"

RAM SPEED: - Advance: 24 IPM - Press: 6 IPM - Return: 28 IPM

CAPACITY: 150 Tons

WEIGHT: 4,400 LBS

SHIPPING DIMENSIONS (LxWxH): 65"x84"x105"
