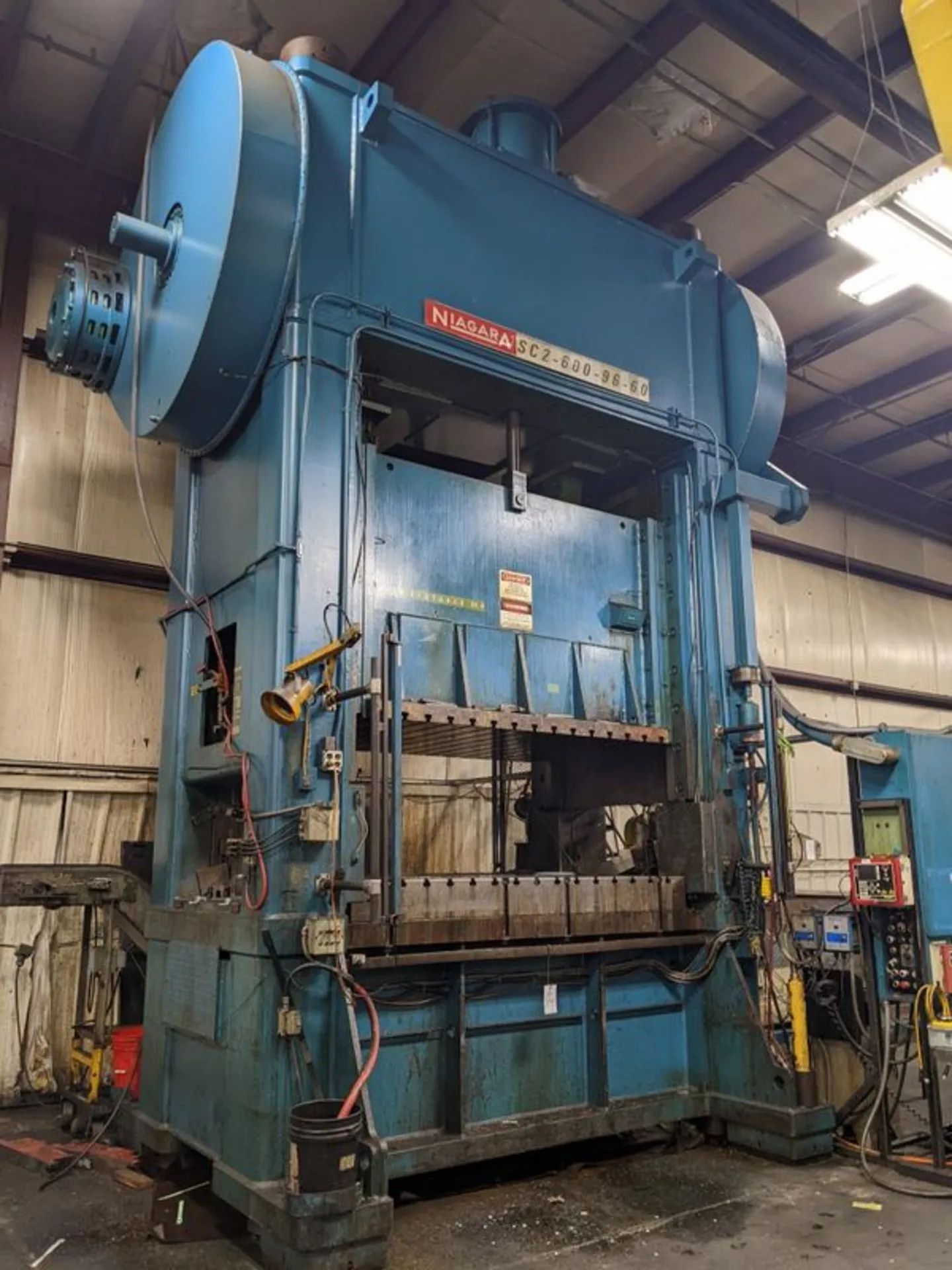

600 Ton Niagara Twin End Backshaft Driven Mechanical Press, Bed area: 96" x 60" , Stroke length: 12", 20-40 SPM, 44" Shut Height over bed, Floor standing design
| Tonnage | 600 T | 544.311 t |
| Stroke | 12" | 304.8 mm |
| Shut Height | 44" | 1,117.6 mm |
| Bed area (Left to right) | 96" | 2,438.4 mm |
| Bed area (Front to back) | 60" | 1,524 mm |
| SPM min. | 20 strokes/min. | 20 strokes/min. |
| SPM max. | 40 strokes/min. | 40 strokes/min. |
| Adjustment | 16" | 406.4 mm |
| Windows Width | 39" | 990.6 mm |
Model Number: SC2-600-96-60
Tonnage Capacity: 600 Tons @ ½” off bottom
Serial Number: 52438
Bed Area: 96” x 60”
Slide Area: 96” x 60”
Stroke: 12”
Strokes per Minute: 20-40
Shut Height: 44” over bed
Slide Adjustment: 16”
Windows: 39” wide x 24” high
Floor to top of bed: 58” bottom of vibromount to top of bed
Overall Height: 22’7” floor to top of counterbalances
Footprint Dimensions: 139” LR x 112” FB
Overall Weight: 178,000# approx..
Floor Standing Design
Air Clutch and Brake
Air Counterbalances
Palm Buttons
Voltage: 480/60/3
Motors and Controls
Wintriss Smart Pac Press Control
Light Curtains
9” thick t-slotted Bolster Plate
Dual Ross Air Valve
Recirculating Lubrication System
Hydraulic Tie Rod Nuts
8 Point Gibbing
T-Slotted Bolster and Ram
Vibration Isolation Levelers
Floor Mounted Design
