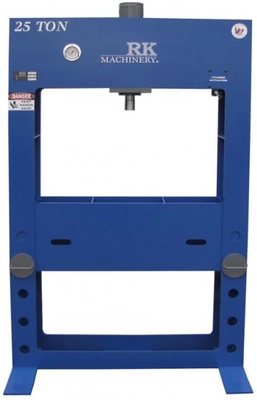

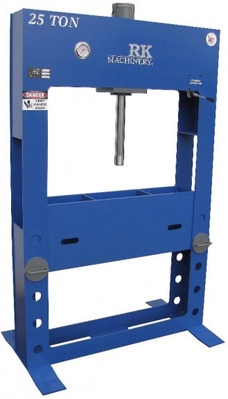

RK HYDRAULIC H-FRAME PRESS, MODEL HFP-25T

Capacity: 25 Ton
FEATURES

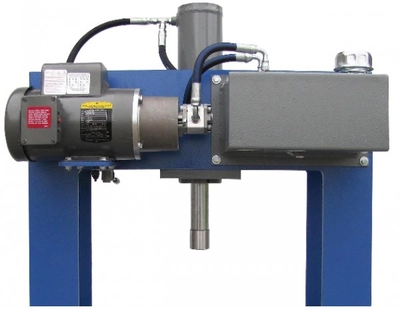

Electric / Hydraulic operation provides smooth, consistent pressing action
Open sides to facilitate work on long pieces

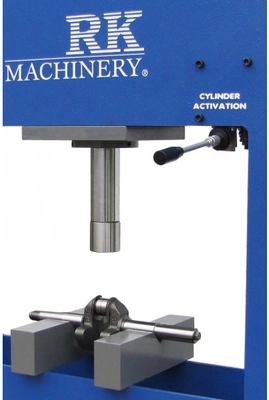

Flat ram nose can be easily changed to allow the user to adapt the press to a specific job
Low speed pump – quiet, dependable operation
Double-acting cylinder permits pulling as well as pressing ram action
Cylinder activation is fingertip controlled, the more the hand lever is engaged the more the ram movement is accelerated, allowing the operator to control the proper speed for the task
5 Gallon hydraulic oil reservoir
Low pressure hydraulic system maintains low oil temperatures, resulting in higher efficiency as safer operation
All hydraulic and mechanical parts are standard in the industry, and available throughout North America

Stroke Length: 12"

Max. Distance Ram to Table: 37"

Distance between Frames left to right: 36"

Distance between frames front to back: 7.5"

Cylinder Bore: 4"

Ram Speed: 10 IPM (Pressing), 13 IPM (Return)

Motor: 1.5 HP, Single Phase

Weight: 600 lbs

Dimensions: 42"L x 52"W x 84"H

F.O.B.: Mississauga, ON
