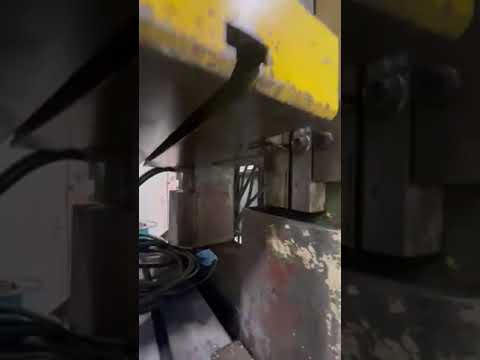

400 Ton Bliss Straight Side Mechanical Press, 84" x 48" bed, 12" stroke, 30.5" Shut Height, 10" Adjustment, 30 SPM
| Tonnage | 400 T | 362.874 t |
| Stroke | 12" | 304.8 mm |
| Shut Height | 30.5" | 774.7 mm |
| Bed area (Left to right) | 84" | 2,133.6 mm |
| Bed area (Front to back) | 48" | 1,219.2 mm |
| SPM min. | 30 strokes/min. | 30 strokes/min. |
| SPM max. | 30 strokes/min. | 30 strokes/min. |
| Adjustment | 10" | 254 mm |
| Windows Width | 31" | 787.4 mm |
Capacity: 400 US Tons
Model Number: SC2-400-84-48
Serial Number: DM-9036
Year of Manufacture: 1980
Bed Area: 84” x 48”
Slide Area: 84” x 48”
Stroke: 12”
Adjustment: 10”
Shut Height: 30.5” SDAU
Strokes per Minute: 30
Windows: 31” wide x 20” high
Floor to top of Bolster: 46” (Includes the 8” bolster)
Bolster Plate: 8” thick T-Slotted
Overall Height: 18’6” floor to highest point of press
Floor Standing
Air Clutch and Brake Assembly
Air Counterbalances
Hydraulic Tie Rod Nuts
T-Slotted Ram and Bolster
Trabon Recirculating Lubrication System
Command Stamp Reflex Integration Press Control
Imco Tonnage Monitor
Knockouts in Slide
8 Point Gibbing
Single/Inch/Continuous
Motors and Controls
