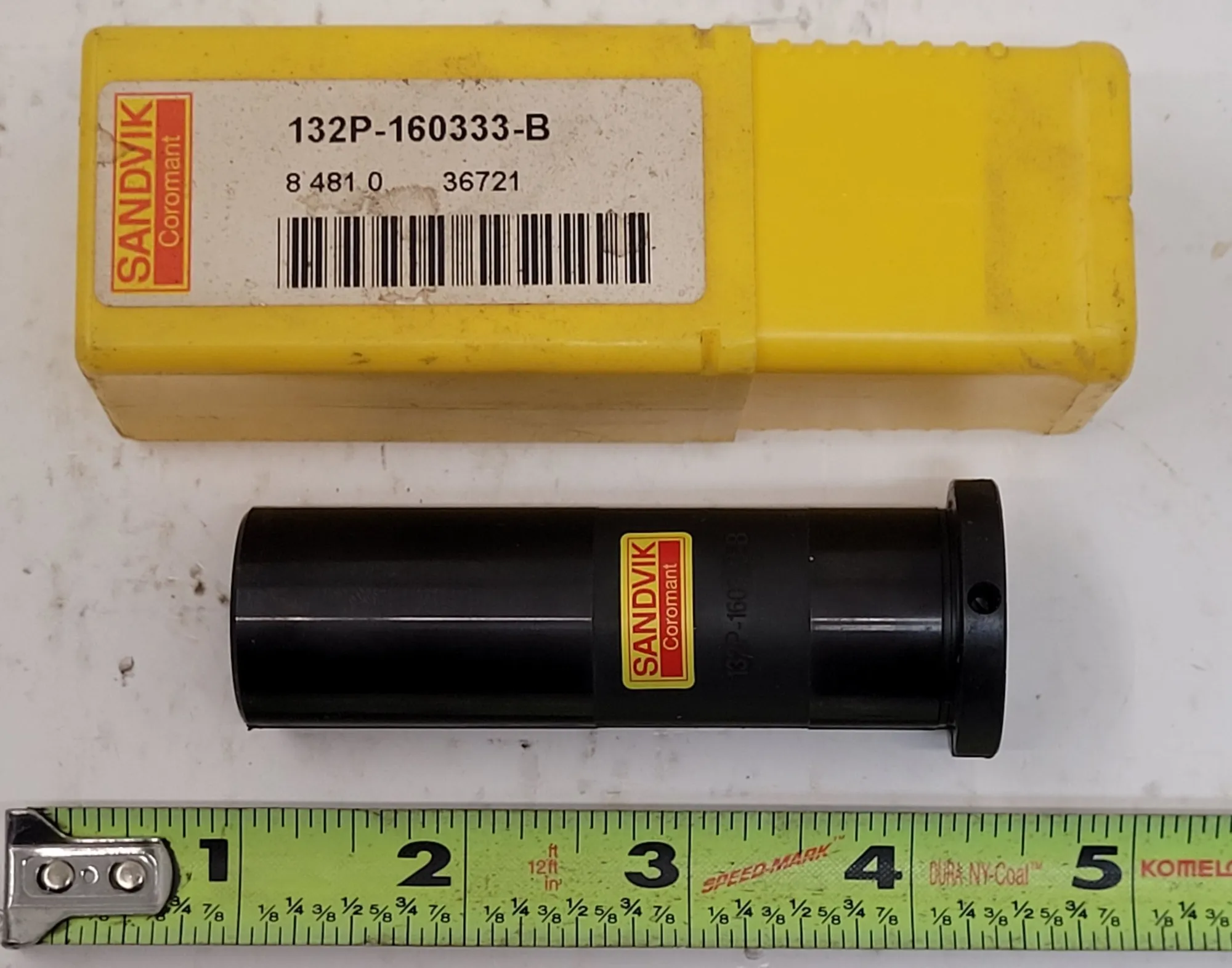

NEW Sandvik Coromant 132P-160333-B
Overview
Description
New Sandvik Coromant 132P-160333-B Cylindrical Sleeve available! Ideal for precise tooling with a 1" DCONMS and 0.1875" DCONWS. Featuring axial concentric coolant entry and exit, ensuring optimal performance with an overall length of 3.3465".
Specifications
Sandvik Coromant 132P-160333-B Cylindrical Sleeve
Still in Box!
Brand: Sandvik Coromant
Part Number: 132P-160333-B
Tool Type: Cylindrical Sleeve
Location aid property: Yes
Connection diameter machine side(DCONMS): 1 inch
Connection diameter workpiece side(DCONWS): 0.1875 inch
Functional length(LF): 0.1969 inch
Overall length(OAL): 3.3465 inch
Body diameter(BD): 1.2362 inch
Body length(LB): 0.1969 inch
Coolant entry style: axial concentric entry
Coolant exit style: axial concentric exit
Coolant pressure: 290.0755 lbf/in2
Connection - machine side: Cylindrical shank (ISO9766 drill shank with flange) -inch: 1
Connection - workpiece side: Cylindrical clamping (sleeve) -inch: 3/16
