USED 1980 VERSON S2-300-96-54T
Overview
Description

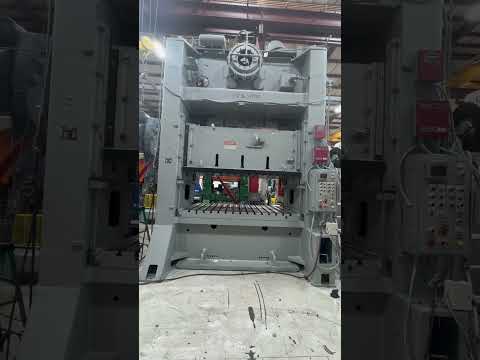

300 TON VERSON STRAIGHT SIDE ECCENTRIC GEARED MECHANICAL PRESS, 96" x 54" bed area, 12" stroke, 30 SPM, Mechanically Rebuilt slide assembly, Clutch Assembly, Counterbalances, and Crown Assembly. Replaced all bushings, bearings, seals, packings, clutch liners, etc..
Specifications
| Tonnage | 300 T | 272.156 t |
|---|---|---|
| Stroke | 12" | 304.8 mm |
| Shut Height | 39" | 990.6 mm |
| Bed area (Left to right) | 96" | 2,438.4 mm |
| Bed area (Front to back) | 54" | 1,371.6 mm |
| SPM min. | 30 strokes/min. | 30 strokes/min. |
| SPM max. | 30 strokes/min. | 30 strokes/min. |
| Adjustment | 8" | 203.2 mm |
| Windows Width | 37" | 939.8 mm |
Model Number: S2-300-96-54T
Serial Number: 27335
Year of Manufacture: 1980
Bed Area: 96” x 54”
Slide Area: 96” x 54”
Stroke: 12”
Strokes per Minute: 30
Shut Height: 33” over bed SDAU
Bolster Plate: 6” thick T-Slotted
Slide Adjustment: 8”
Windows: 37” wide
Overall Height: 18’4” from floor to top of motor
Overall Weight: 94,000 #
Floor Standing
Equipped With
Air Clutch and Brake
Air Counterbalances
Palm Buttons
Voltage: 480/60/3
T-slotted bolster and ram
Motors and Controls
Updated Clutch/Brake Control
Dual Ross Air Valve
Recirculating Lubrication System
