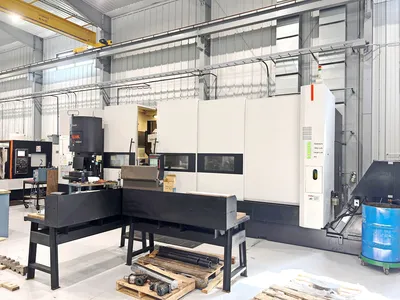

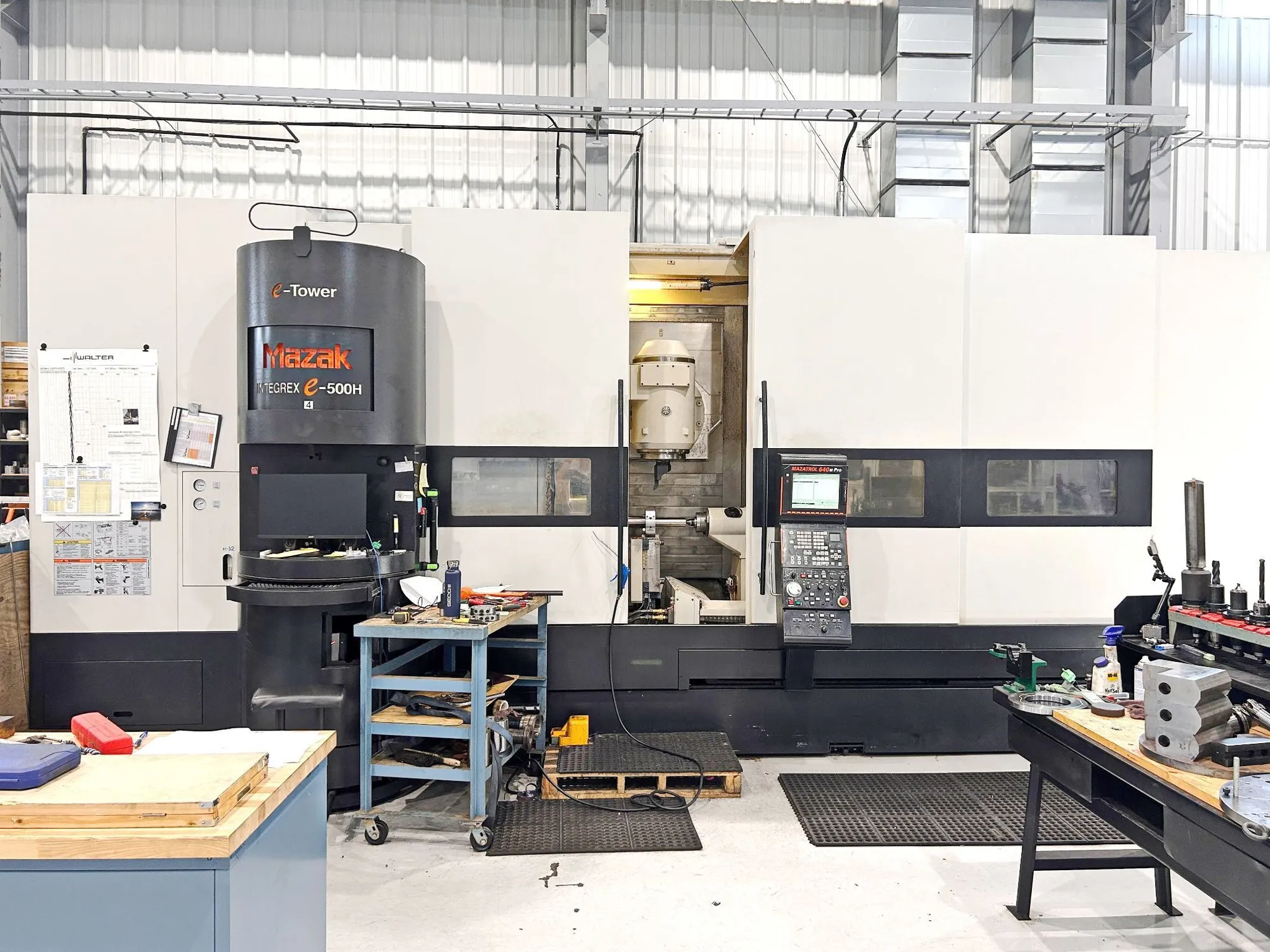

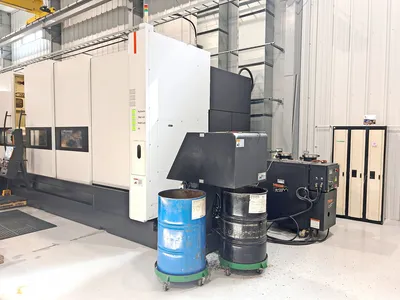

2006 Mazak Integrex E-500H 5-Axis Multi-Tasking Machining Center, High-Pressure Coolant, 15" Chuck, Milling Spindle, B-Axis, Programmable Tailstock, 80-Tool Magazine, Steady Rest, Laser Measurement System, Chip Conveyor
| Swing | 32.28" | 819.91 mm |
| Max Turning Dia | 32.28" | 819.91 mm |
| Chuck | 15" | 381 mm |
| X-Axis | 34.25" | 869.95 mm |
| Y-Axis | 19.69" | 500.13 mm |
| Z-Axis | 122.91" | 3,121.9 mm |
| B-Axis | -30° ~ 210° | -30° ~ 210° |
| C-Axis | 360° | 360° |
| W-Axis | 117.72" | 2,990.1 mm |
| Power | 40 hp | 29.8 kW |
| Power (Milling Spindle) | 50 hp | 37.3 kW |
| RPM | 3,300 RPM | 3,300 RPM |
| RPM (Milling Spindle) | 10,000 RPM | 10,000 RPM |
| # ATC | 80 | 80 |
| # Axis | 5 | 5 |
| Spindle Bore | 4.1" | 104.14 mm |
| Spindle Nose | A2-11 | A2-11 |
| Rapid Traverse (X/Z) | 1,575 in/min. | 40 m/min. |
| Rapid Traverse (Y) | 1,575 in/min. | 40 m/min. |
| Rapid Traverse (B) | 30 RPM | 30 RPM |
| Rapid Traverse (C) | 20 RPM | 20 RPM |
| Dimensions | 316.54" X 181.10" X 126.77" | 316.54" X 181.10" X 126.77" |
| Weight | 63,051 lb | 63,051 lb |

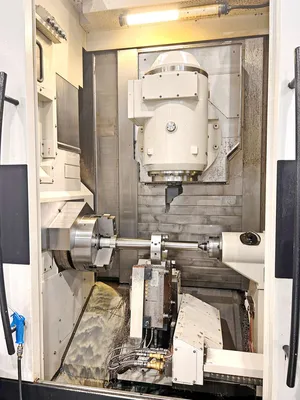

10000 rpm milling spindle
Mazak Super Flow high-pressure coolant
Through spindle coolant prep (1000 psi)
B-axis
15" through hole chuck
High/low chuck pressure system
Programmable tailstock
80-tool magazine
Automatic tool eye
Steady rest
Laser measurement systems
Mazak monitoring system
Chip conveyor
