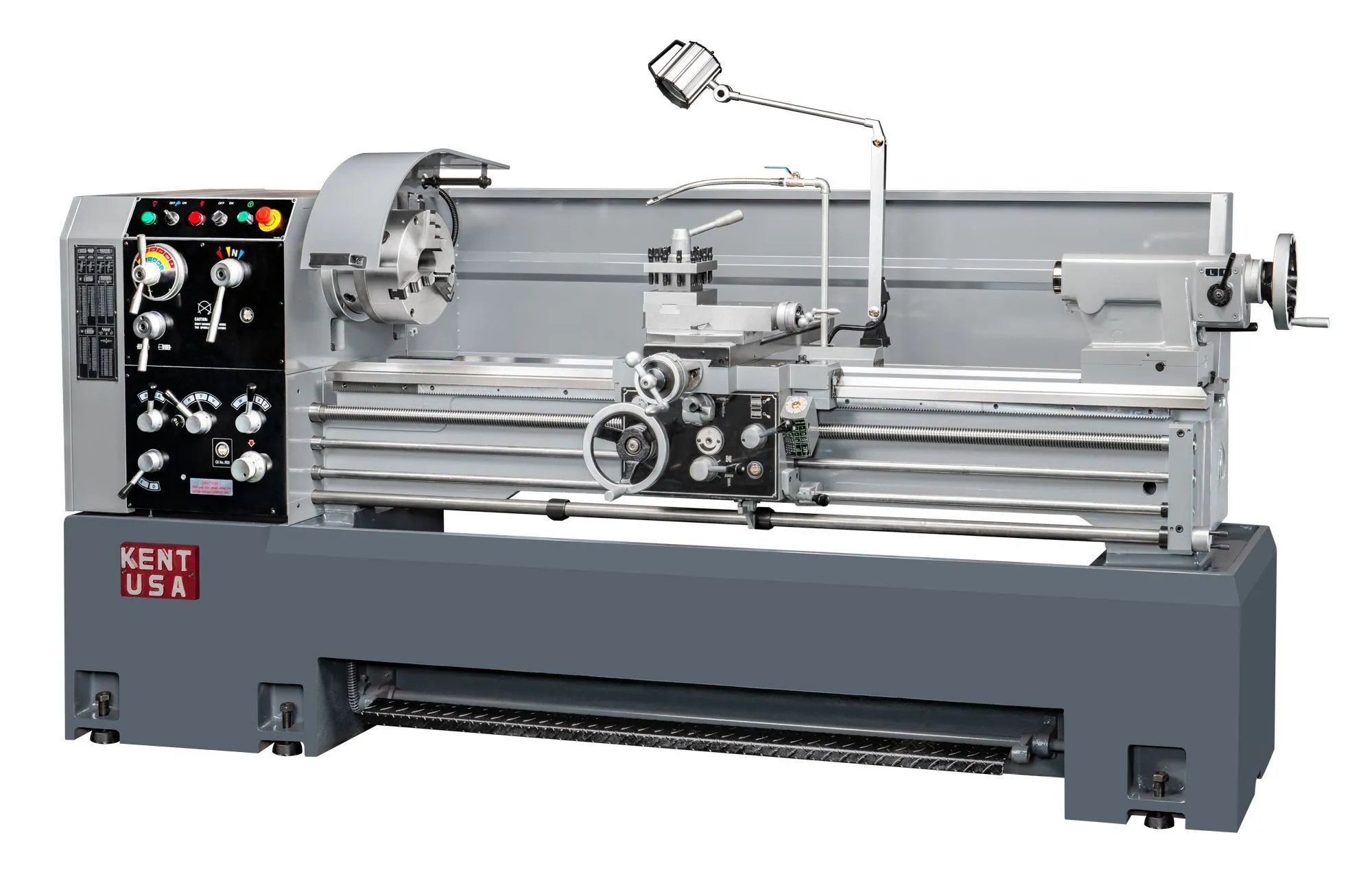

NEW KENT USA CS-1860

Utah, United States
1,463Listings|6Followers
Overview
Precision Lathes

Kent USA precision lathes are designed for turning medium to heavy workpieces with tighter tolerances. These reliable workhorses feature heavy-duty construction throughout to cut big and heavy workpieces. Our precision lathes are built with a solid full-length casting base. In addition, front-loading chip tray for easier cleaning, adjustable overload feed clutches, and quick reversal feed from apron – all of which come standard.

Specs
Swing
18.1"
459.74 mm
Centers
60"
1,524 mm
Threading
2-112 TPI
2-112 TPI
Taper
#5 MT
#5 MT
Power
7.5 hp
5.6 kW
RPM
0 RPM
0 RPM
Dimensions
104 in x 44 in x 62 in
104 in x 44 in x 62 in
Weight
4180 lbs
4180 lbs
Equipped With

5 HP Spindle Motor, 12-Speeds
Precision Spindle with 3 Point Support
2” Spindle Through Hole
Hardened and ground spindle gears and shafts; hardened and ground bedways
Solid Full Length Casting Base; Full-length Safety Foot Brake
Spindle Jog Button Control
One-shot/Auto Lubrication for Apron, Carriage, and Bed Ways
Multi-position Adjustable Feed Position Stops
Dual Inch/Metric Calibrated Tailstock Quill
