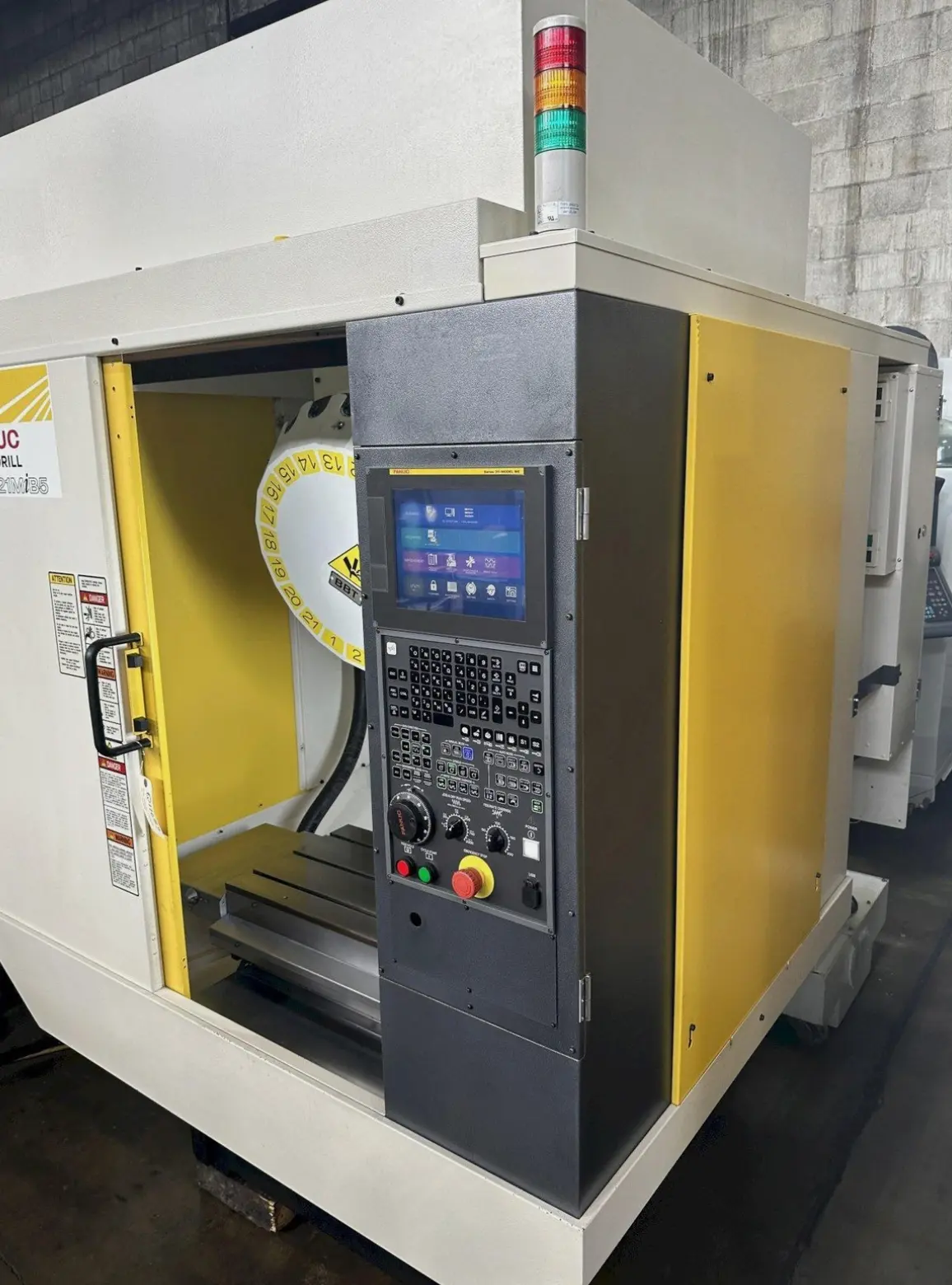

Used vertical machining center with 3-axis, 25.6"x15.75" table, 24,000 RPM spindle, 21 tool ATC, and Fanuc 31i-B5 control. Equipped with Renishaw probe, mist collector, and coolant tank.
| X | 19.7" | 500.38 mm |
| Y | 15.7" | 398.78 mm |
| Z | 12.9" | 327.66 mm |
| RPM | 24,000 RPM | 24,000 RPM |
| # ATC | 21 | 21 |
| Taper | BT30 | BT30 |
| Table-W | 15.75" | 400.05 mm |
| Table-L | 25.6" | 650.24 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
# Axis 3
Table Size 25.6" x 15.75"
Table Load Capacity 661 LBS
X-Axis (Longitudinal Travel) 19.7"
Y-Axis (Cross Travel) 15.7"
Z-Axis (Vertical Travel) 12.9"
Max/Min Clearance Tabletop to Spindle Nose 22.8" / 9.84"
Feed Rates, All Axes 1,181 IPM
Rapid Traverse Rate, All Axes 2,125 IPM
Max Spindle RPM 24,000 RPM
Spindle Taper BT30
Automatic Tool Changer Capacity (ATC) 21
Tool Change Time 1.6 Sec
Electrics 220/3/60
Approximate Machine Dimensions 63" x 63" x 90"
Approximate Machine Weight 4,850 LBS
Fanuc Series 31i-B5 CNC Control, 24000 RPM Spindle, Renishaw OMP40-2 Part Probe, Mist Collector, Coolant Tank.
