USED MCKAY 1272

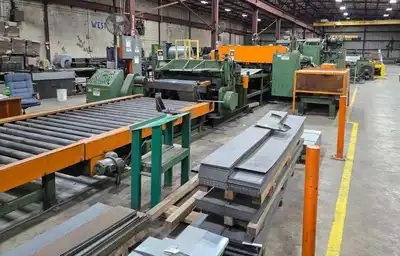

72" x 0.105" x 25,000# McKay/Wysong Cut-to-Length Line

Consisting of the following:

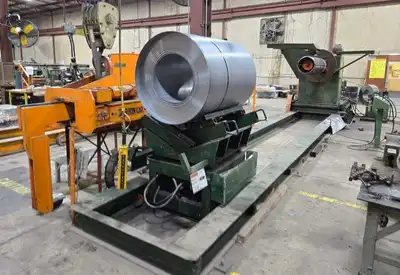

-Coil Car:
Above Ground
25,000# Capacity

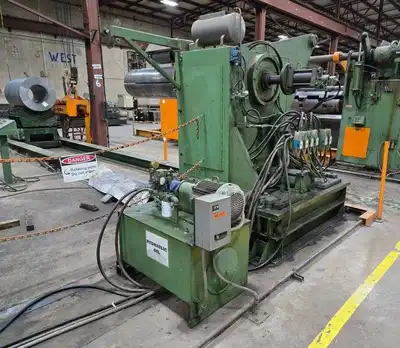

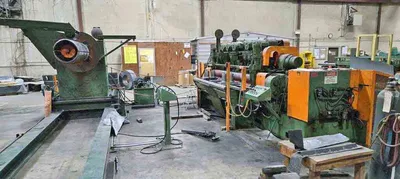

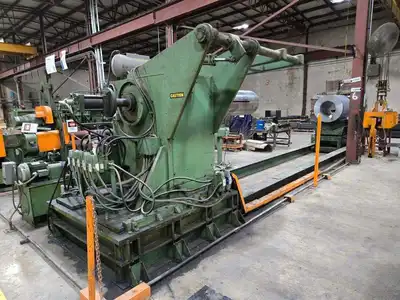

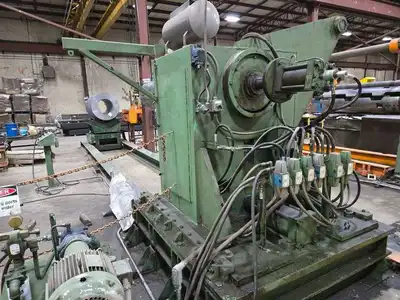

-Uncoiler:
25,000# Capacity
68" Face Mandrel
Hydraulic Expansion
Hydraulic Motor Threading Drive
Holddown Roll
Sliding Base
Brake is missing

-Entry Unit:
Passline Roll
Edge Guides, Manual Handwheel Adjustment

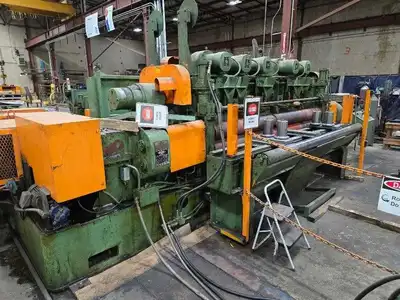

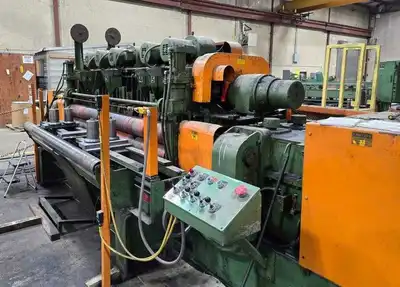

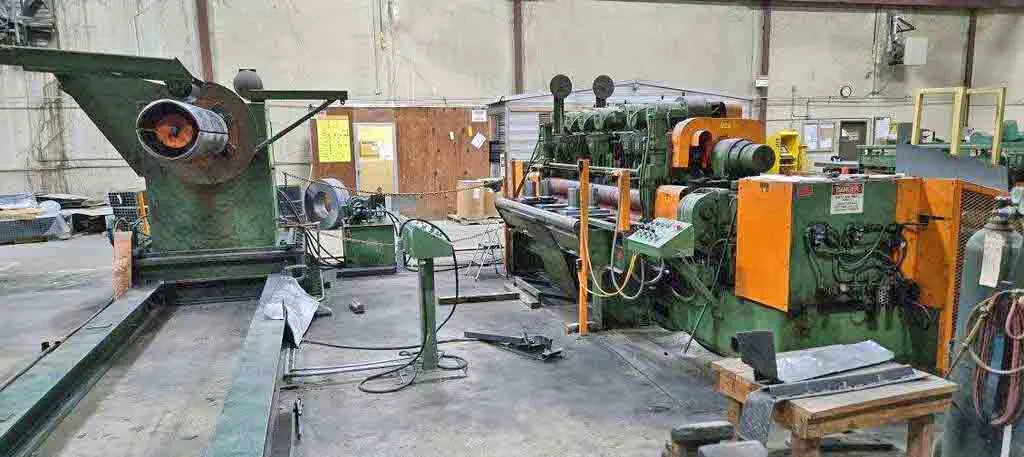

-Leveler: Mckay
S/N: 6683
17 Rolls (9 over 8)
(1 Top Roll Removed at exit end)
2.0" Dia. x 112" Face Rolls
Entry Driven Pinch Rolls
5 Flights of Motorized Backups
50 HP AC Motor, 1760 RPM, 208-230/460 V
Belt Drive to Leveler
5 HP Reliance DC Motor, 1750/2300 RPM, 500 V
Philadelphia Right Angle Reducer w/57.7:1 ratio
Belt Drive to Leveler
Passline: 39"
Overall Size: Leveler - 280" L x 83" W x 100" High; 38,000 lbs.
DC Drive - 101" L x 54" W x 39" High; 1,392 lbs.
AC Drive - 100" L x 53" W x 44" High

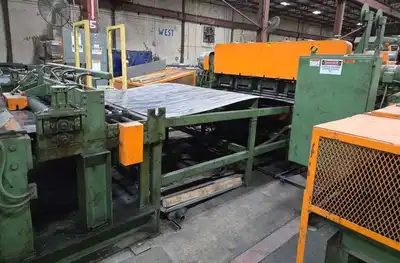

-Hump Table:

-Driven Pinch Rolls:
Entry Side Guides

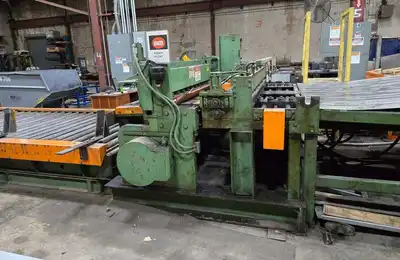

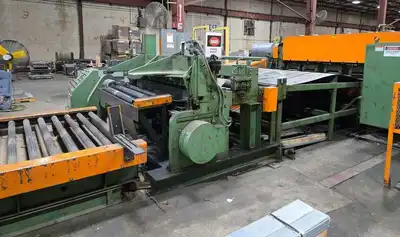

-Shear: Wysong
Model 1272
S/N: P3-517
Capacity: 72" Wide x 0.105" (Mild Steel)
Strokes Per Min.: 60
5 HP AC Motor

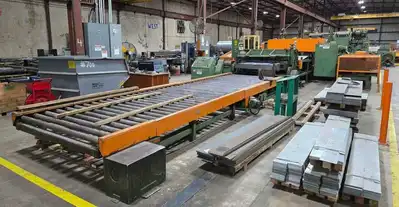

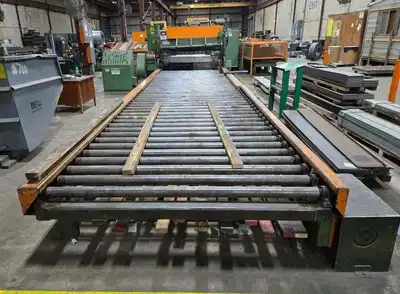

-Exit Powered Conveyor:
72" Wide x 10 Ft Long
Scissors Lift Raise/Lower

-Exit Powered Conveyor:
72" Wide x 14 Ft Long

-Line Direction: Left to Right

-Line is removed and in Storage; Toledo, OH.
