3.500" x 0.135" AEF Tube Mill

-3.5" x 3.5" Square
-3" x 5" Rectangle (tooling in Mill)
-Line Direction: Right to Left
-Material Thickness: 0.135"

Consisting of the following:

-Dahlstrom Coil Car:
AC Motor Drive
AC Motor Jack Screw Lift
Floor Mounted Rails

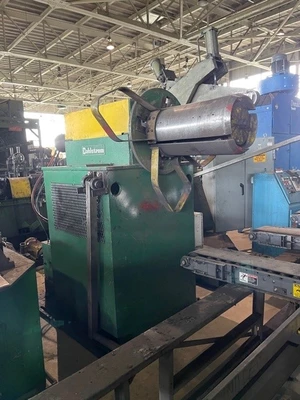

-Dahlstrom Uncoiler:
18" Wide with 4 Keepers
AC Gear Motor with Clutch Drive
Hydraulic Expansion 16" to 22" ID
72" Coil O.D.
Self-Contained Hydraulic Power Unit
15,000 lb. Weight Capacity

-Free Standing Overarm Holddown:
Loop Control Arm

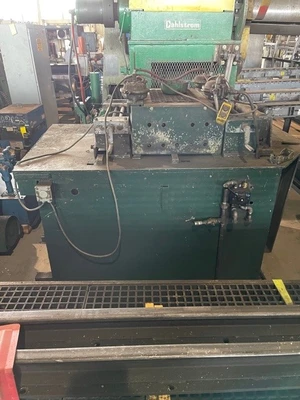

-Dahlstrom Straightener:
5 Roll - 2 over 3
Dual Entry Pinch Roll
Side Guides

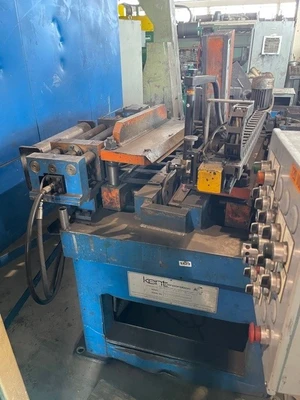

-Kent Shear End Welder:
Model: 20-250-DSAA
20" Strip Width
0.250" Strip Thickness
Entry and Exit Squaring Guides
Dual Hydraulic Strip Clamps on Bias
Hydraulic Blanking Shear
Miller Square Wave 250

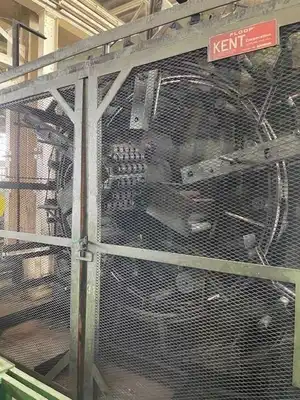

-Kent Vertical Floop Accumulator:
Model: BEC 3122
16" Maximum Strip Width

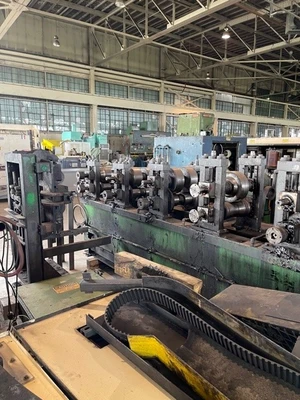

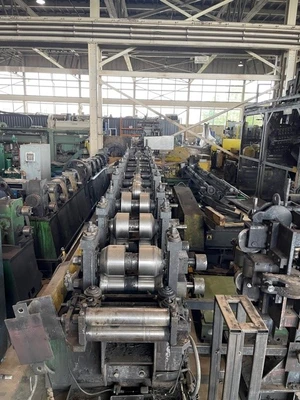

-AEF Forming Mill:
Entry Side Guides
Pass Line Roll
11 Stands
Bottom Drive
14" Roll Space
24" Horizontal Spacing
8" Vertical Adjustment (last 3 Stands)
4 Roll Weld Box
Scarfing Tool
Scarf Recoiler - AC Drive

-150 HP AC Main Drive Motor

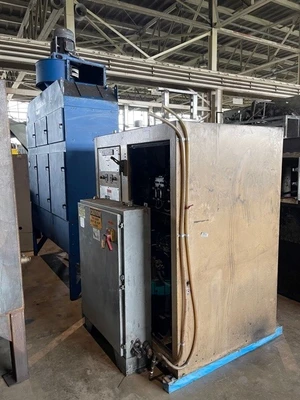

-Thermatool VT 200 Welder:
375KV Transformer
480V

-10' Long Coolant Trough:

-AEF Sizing Stand:
1 Driven Stand
14" Roll Space
Pinch Roll
Single Side Turkshead
6" x 6" Max. Opening

-Free Standing Turkshead:
6" x 6" Max. Opening

-Flying Cutoff Saw:
Hydraulic Clamp - Dual Vise
AC Motor Drive
Hydraulic Cylinder Die Accelerator

-(2) 45' Long Conveyor Runout Sections:
40' Long Discharge Table
8' Deep
Belt Type Top

-(2) 40' Long Stacking Tables

-Removed and in storage: Toledo, OH.
