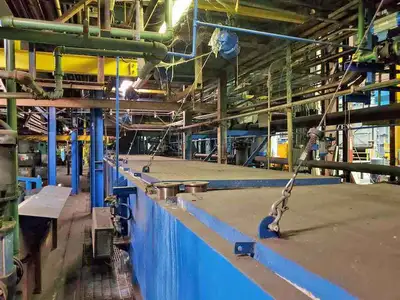

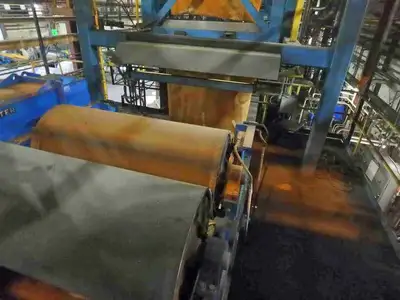

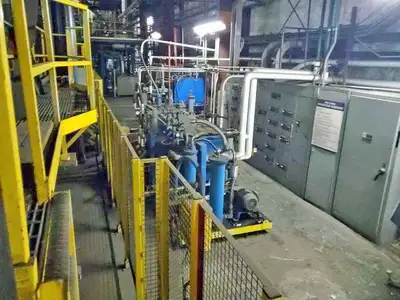

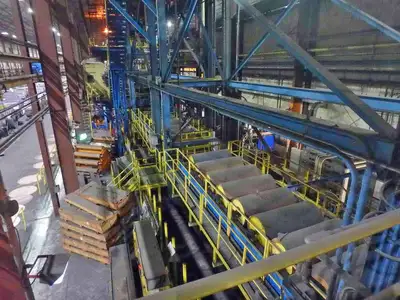

Paint Line, Hunter-GFG

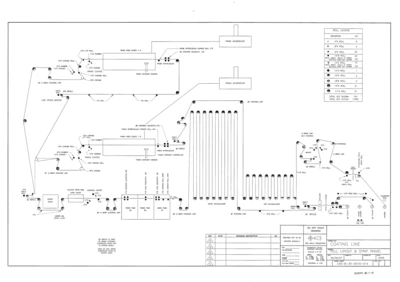

Hunter-GFG Paint Line

Material: Aluminum
Line Speed: 125 FPM Min, 500 FPM Max.
Entry Section Speed: 125 FPM Min, 650 FPM Max.
Exit Section Speed: 125 FPM Min, 650 FPM Max.
Thread Speed: 50 FPM Min, 150 FPM Max.
Strip Gauge: 0.008" Min, 0.072" Max.
Strip Width: 30" Min, 60" Max.
Coil Weight: 50,000 lbs.

Horsepower:
Payoffs #1 and #2: 80 HP
Bridles #1, #2, #3, #3A and #4: 125 HP
Rewind: 150 HP
Entry Coil O.D.: 40" Min, 96" Max.
Exit Coil O.D.: 96" Max.

Core: 20" ID x 22.5" OD x 84" L

Line Tensions:
Payoffs: 1000 PSI
Entry Accumulator: 1500 PSI
Ovens: 5500 PSI
Exit Accumulator: 1500 PSI
Rewind: 2000 PSI

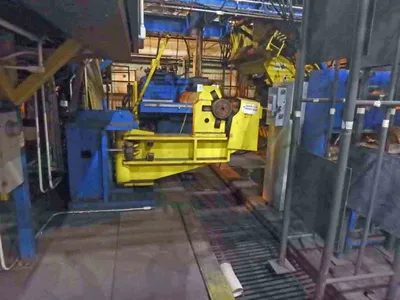

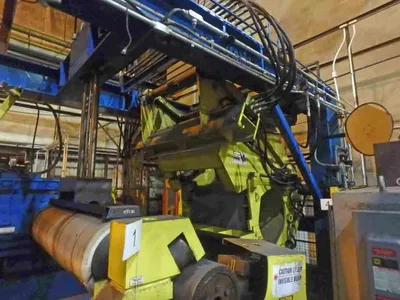

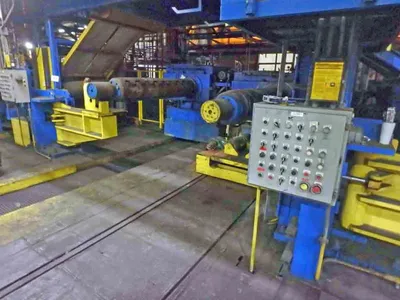

Unwinder: Dual Payoff 50,000 lb. Capacity

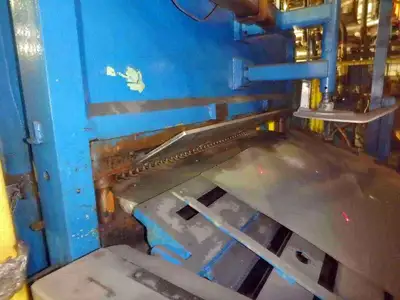

Shears: Hydraulic Down Cut

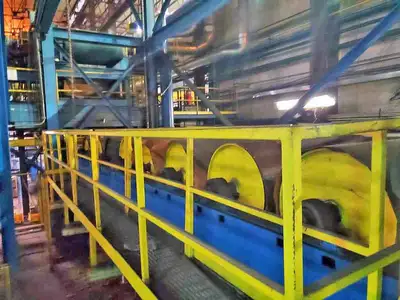

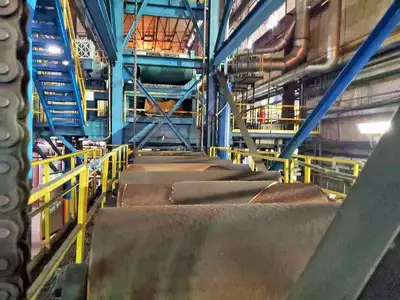

Bridles: Two Roll DC Driven

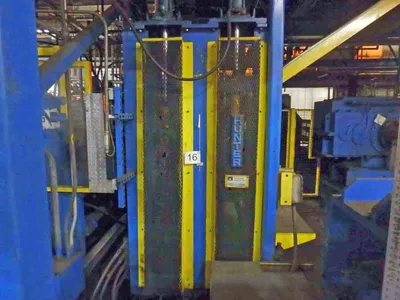

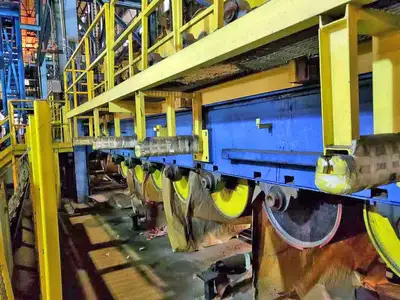

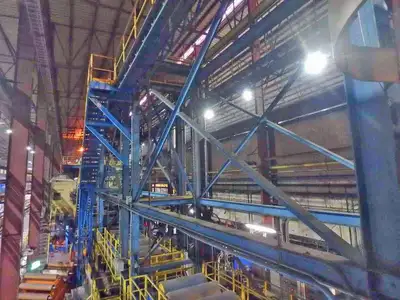

Strip Accumulators: Hydraulic Floating Type with 450 Feet Storage
Cleaning & Rinsing: Caustic Cleaning and Water Rinse
Conversion Coat: Chemical Dry-In-Place Coater
Conversion Coat Drying: Gas Fired Infrared Oven

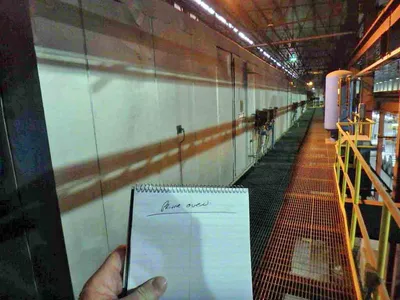

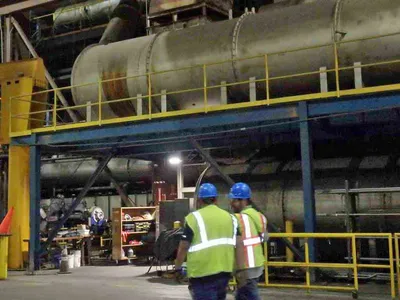

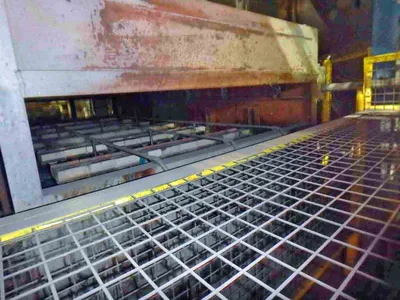

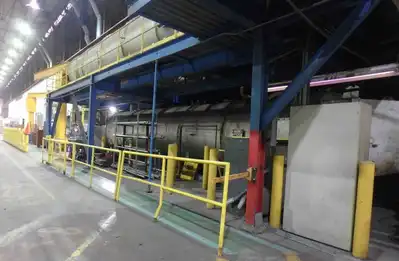

Prime Organic Film Curing Oven: Recirculated Heat from after burner heat
recovery system, 4 zones.

Finish Organic Film Curing Oven: Recirculated Heat from after burner heat
recovery system, 5 zones.

Film Thickness: Infrared Thickness Detection System
Waxer, DOS Center: Roll Applied Waxer

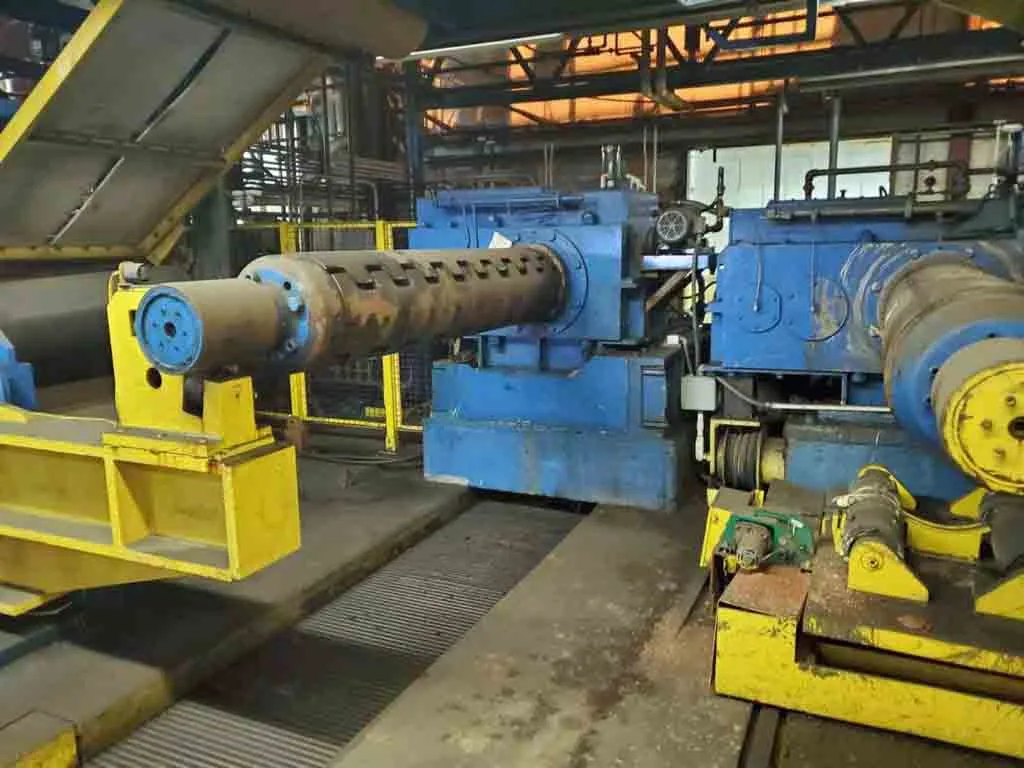

Payout: Dual 20"/24" Payoff Mandrels

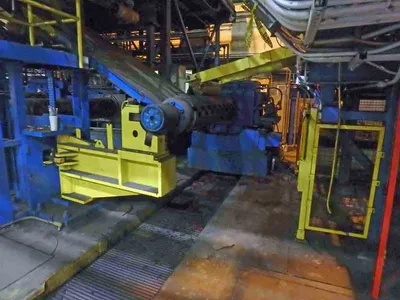

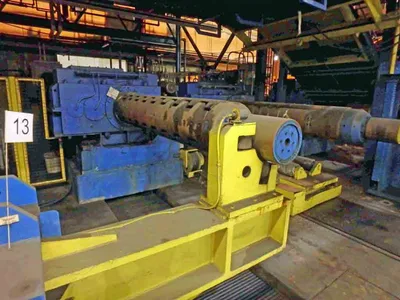

Rewinder: One 16"/20" Winder Mandrel
Coil Size Payout: 20"/24" ID x 60" Wide x 98" OD

Coil Size Rewind: 16"/20" ID x 60" Wide x 96" OD

Gauge: 0.072"

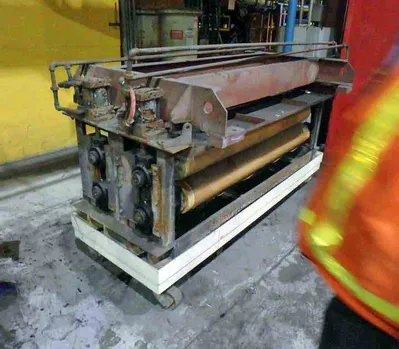

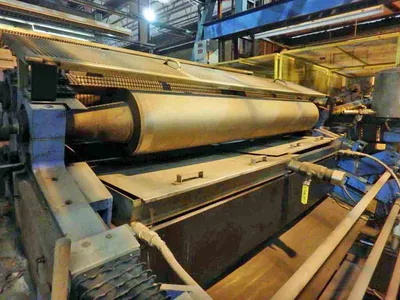

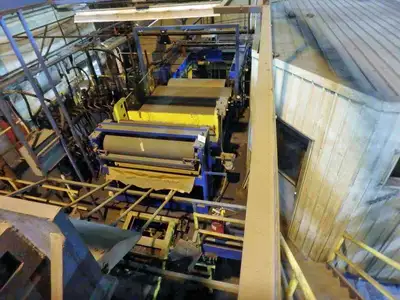

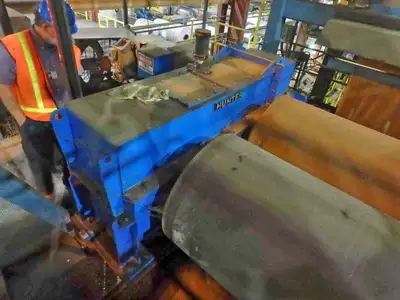

Prime Coater: 3 Roll Doubleheaded Reverse Roll.
DC Driven Motor

Finish Coater: 2 Roll Doubleheaded Reverse Roll
Shuttle Hear (4 Heads)
Hydraulic Driven Motors

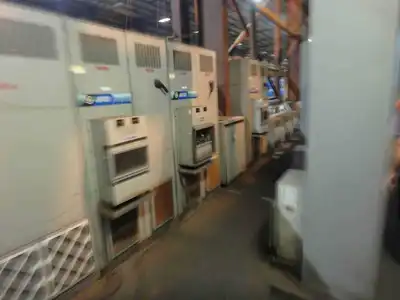

Control System: GE 90-30 & Series 6 PLC's

Drives: GE Drives

Line is Installed
