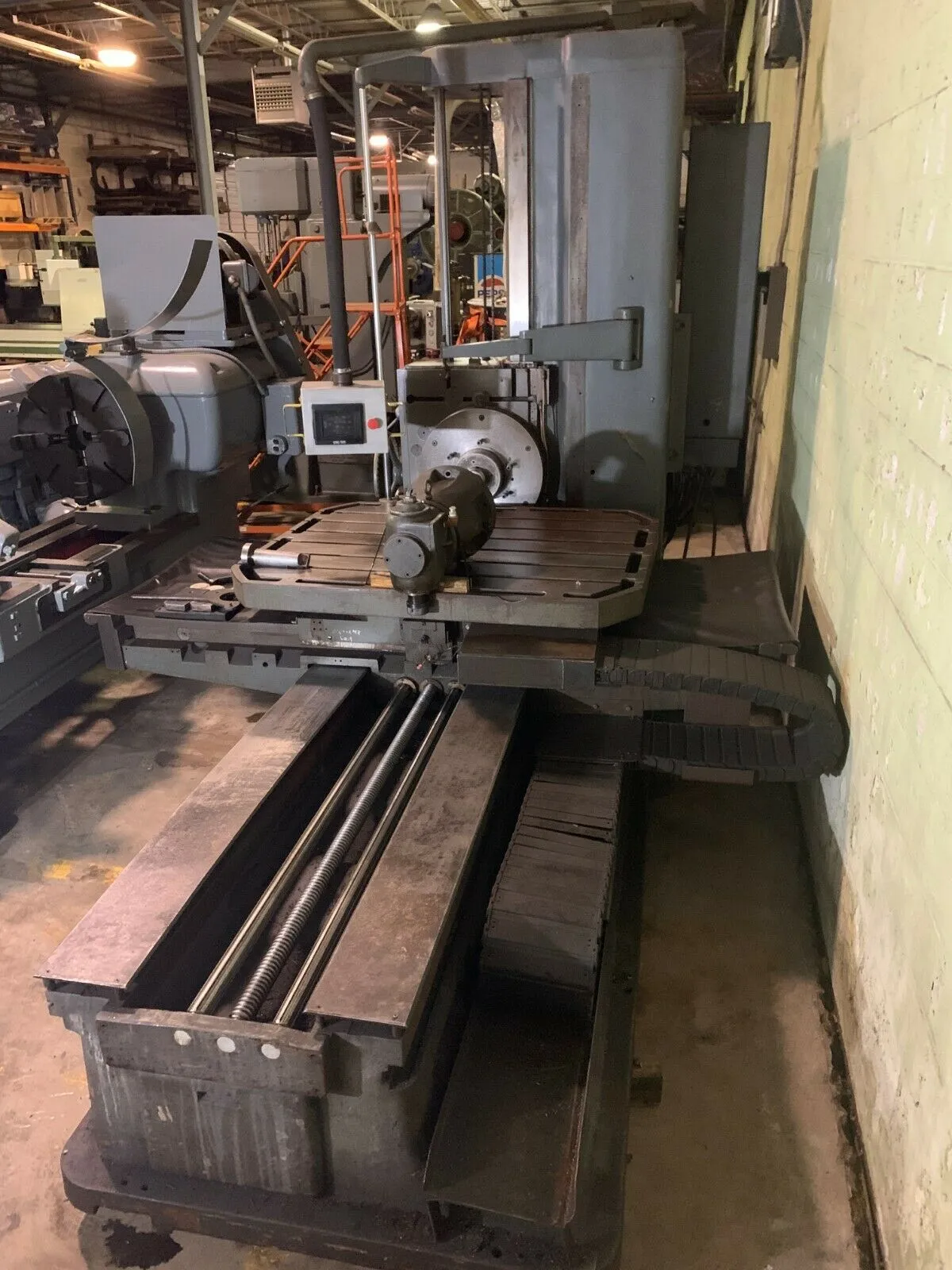

USED 1998 SUPERMILL AL-92

Supermill AL-92 4”Table Type 48” x 60”Horizontal Boring Mill

4" Bar

Table 48" X 60" Rotary

Travels: 72" Longitudinal & 52" Cross

48" Max Height of Spindle Over Table

Spindle Travel 28-1/2"

Morse Taper #6 Spindle

18 Speeds 11-1450 RPM

Threads Per Inch 1.5 to 80

18 HP Spindle 220/440

5 HP Feed 220/440

Table weight capacity 3Ton

Swivel Vertical Head with Cat 50 Taper

CTC Interactive PowerStation upgrade being operated on MMI platform.

ACU-RITE DRO 3 Axis

Upgraded Auto Lube

Upgraded Hydraulic

Shipping Dimensions15’ X 9” x 12’ H

Weight 31,000 Lbs

Swivel Vertical Head with Cat 50 Taper
CTC Interactive PowerStation upgrade being operated on MMI platform.
ACU-RITE DRO 3 Axis
Upgraded Auto Lube
Upgraded Hydraulic
