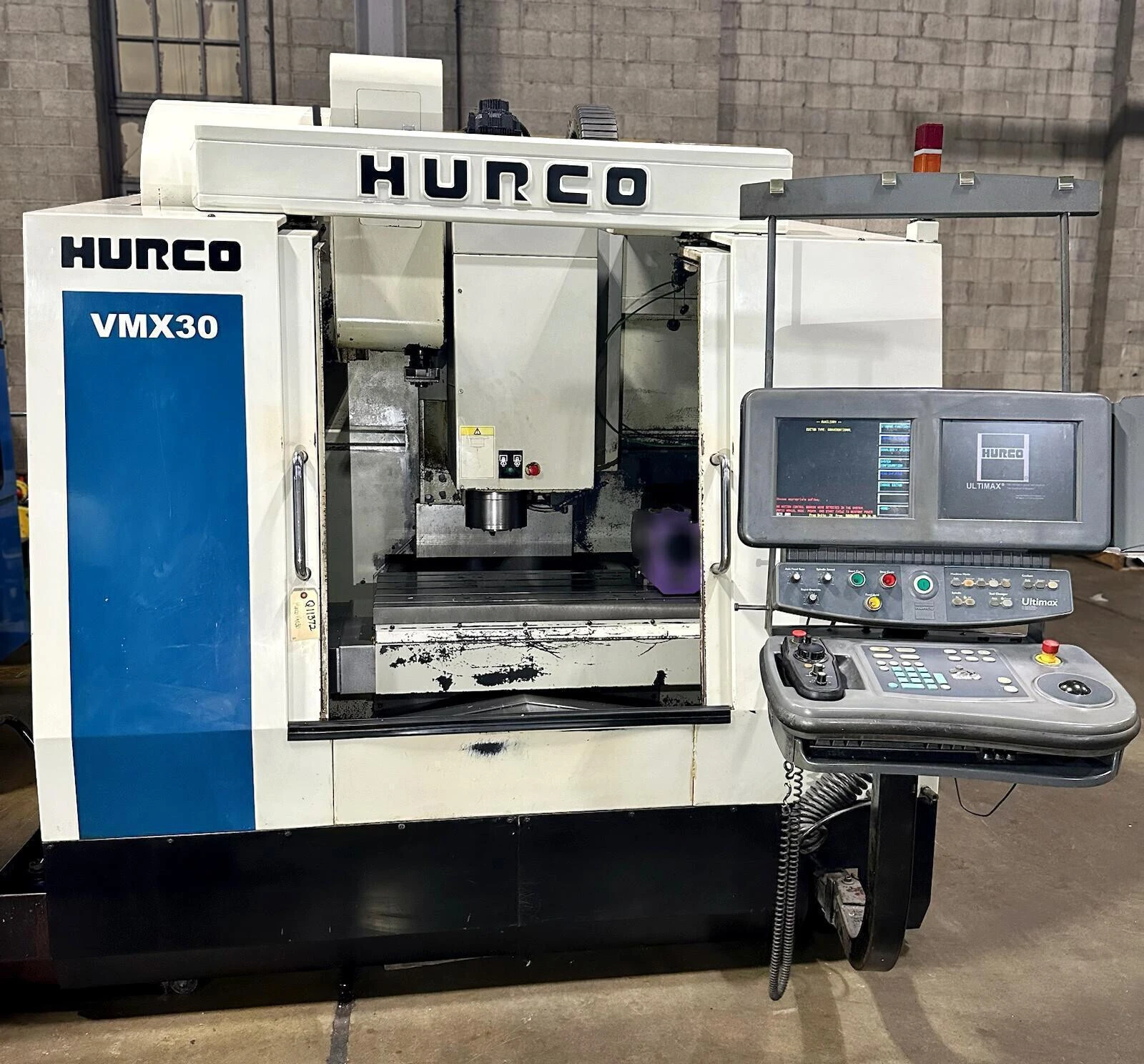

Used Vertical Machining Center offers a 30"x20"x24" XYZ range, 17.7 hp power, and 10,000 RPM. Includes Hurco Ultimax CNC, 24 ATC, metal way covers, and chip auger.
| X | 30" | 762 mm |
| Y | 20" | 508 mm |
| Z | 24" | 609.6 mm |
| Power | 17.7 hp | 13.2 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 24 | 24 |
| Taper | 40 | 40 |
| Table-W | 20" | 508 mm |
| Table-L | 40" | 1,016 mm |
| # Axis | 3 | 3 |
| Weight | 10,000 LBS | 10,000 LBS |
Max/Min Clearance Table Top to Spindle Nose 30" / 6"
Feed Rates, All Axes 300 IPM
X-Axis Rapid Traverse Rate 1181 IPM
Y-Axis Rapid Traverse Rate 1181 IPM
Z-Axis Rapid Traverse Rate 787 IPM
Automatic Tool Changer Style Side-Mount
Electrics 230/3/60
Approximate Machine Weight 10,000 LBS
Hurco Ultimax CNC Control, 24-Station Automatic Tool Changer, Metal Way Covers, Chip Auger, Coolant System.
