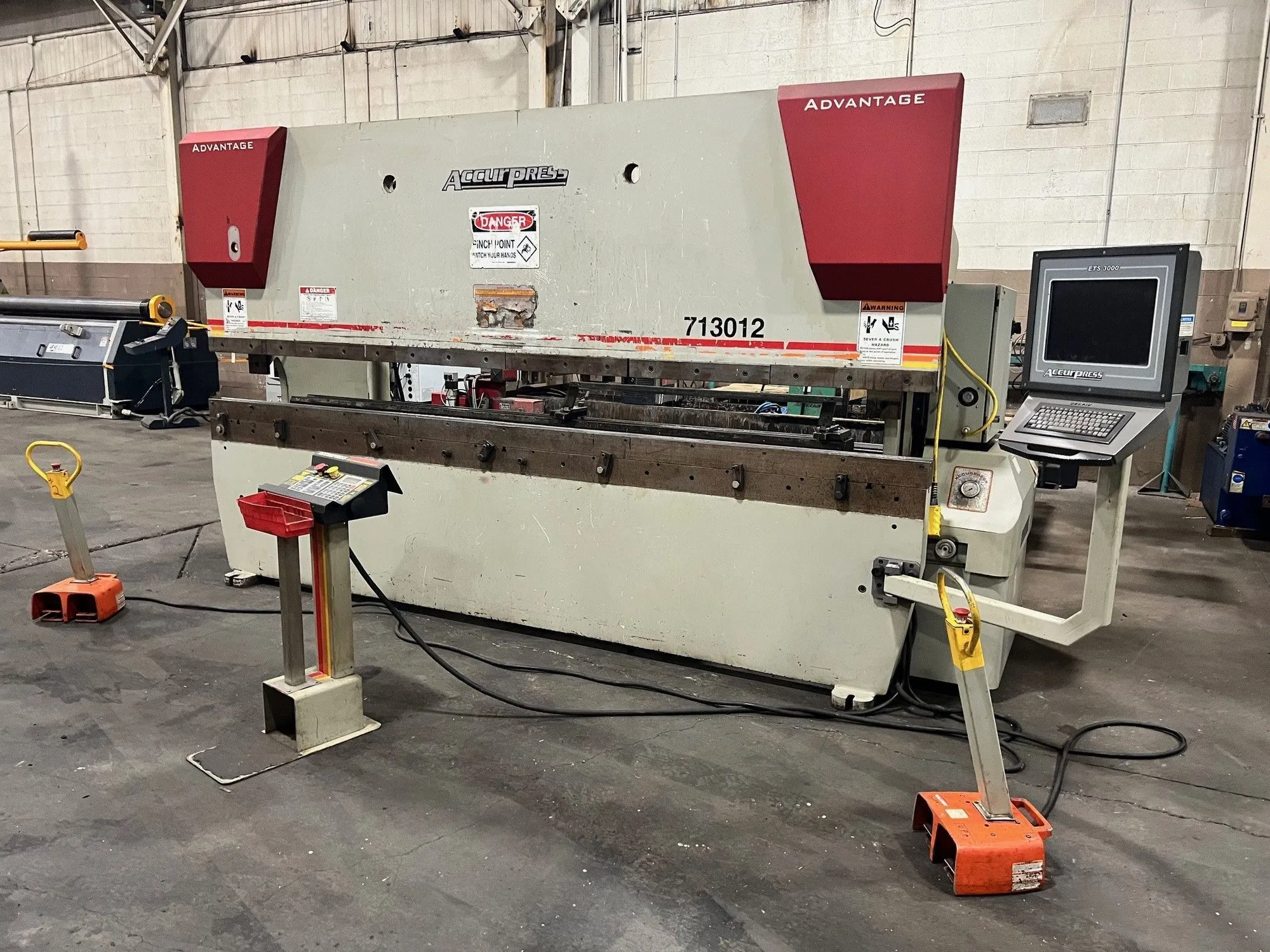

USED 2007 ACCURPRESS ADVANTAGE 713012
Overview
Description
Explore this 2007 Accurpress Advantage 7-130-12 Press Brake offering 130-ton capacity, 12 ft bed, and 2-axis CNC. Features include ETS 3000 CNC control, dual ram feedback, and a hydraulic oil cooler. Ideal for precision hydraulic braking tasks.
Specifications
| Tonnage | 130 T | 117.934 t |
|---|---|---|
| Type | HYD | HYD |
| Overall Length | 12' | 3.7 m |
| Between Housings | 124" | 3.1 m |
| Stroke | 8" | 203.2 mm |
| # Axis | 2 | 2 |
| Dimensions | 167" x 53" x 86" | 167" x 53" x 86" |
| Weight | 17000 | 17000 |
Brand: Accurpress
Model: Advantage 7-130-12
Tonnage: 130 tons
Length of bed: 144"
Distance between housings: 124"
Bed height: 34"
Bed cap width: 4.5"
Ram stroke: 8"
Open height: 14"
Closed height: 6"
Throat depth: 10"
Fast approach speed: 115 IPM
Slow bend speed: 24 IPM
Fast return speed: 180 IPM
Main motor: 15 H.P.
Voltage: 220 volt 3 phase
Dimensions: 167" x 53" x 86"
Weight: 17,000 Lbs.
Equipped With
Advantage package, dual ram feedback, ram tilt indicator
ETS 3000 CNC control
Accurpress CNC single axis backgauge with manual R axis and two backgauge fingers
dual portable foot pedals
Portable ETS 100 foot pedestal with LCD display and palm buttons
Hydraulic oil cooler
Tonnage control
Flush floor design
