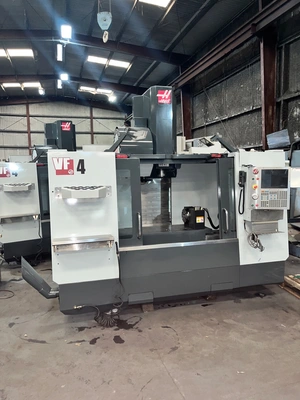

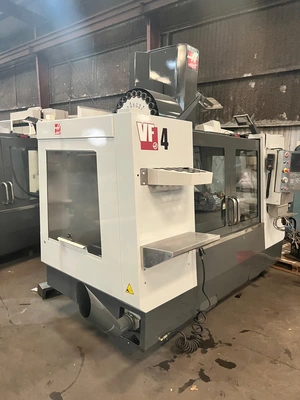

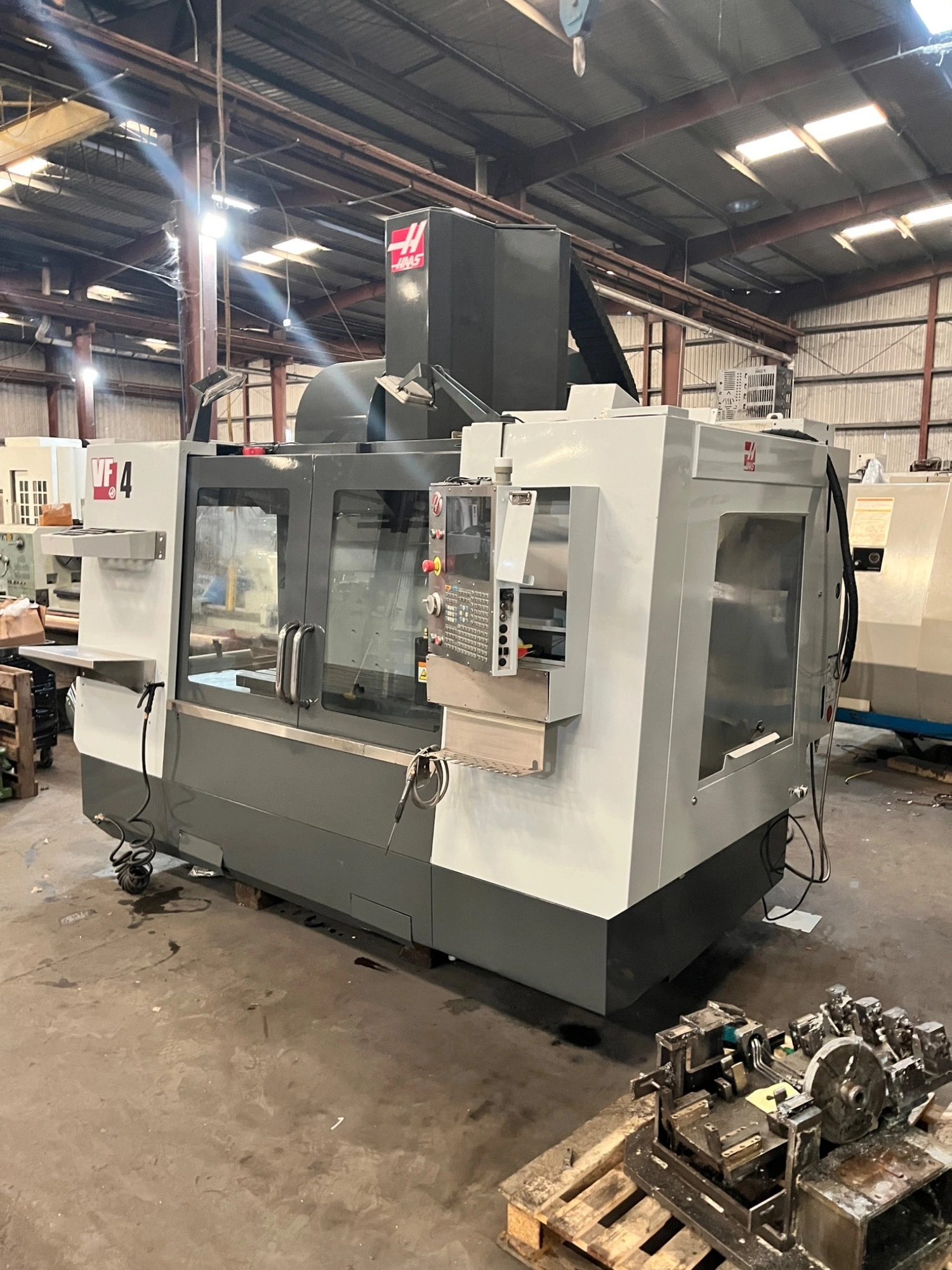

HAAS VF-4 Vertical Machining Center, 2014 model, in used condition. Features 50" X-axis, 20" Y-axis, 25" Z-axis, 30 HP, 8100 RPM, 18"x52" table, CT40 taper, and 24+ 1 ATC. Ideal for precision manufacturing.
Lots of Options: Remote Mpg , Side Mount Tool Changer , 4th Axis , Haas 210 Rotary Table , Chip Auger , Programmable Coolant , Extra Tooling , High Intensity Lighting.
| X | 50" | 1,270 mm |
| Y | 20" | 508 mm |
| Z | 25" | 635 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 8,100 RPM | 8,100 RPM |
| # ATC | 241 | 241 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 18" | 457.2 mm |
| Table-L | 52" | 1,320.8 mm |
| # Axis | 4 | 4 |
Brand: Haas
Model: VF4
Year: 2014
Shipping Weight: 13,500 Lbs
Shipping Dimensions: 152″ x 102″ x 109″
Specifications:
Travels: 50″ (x), 20″ (y), 25″ (z)
Feedrates: 1000 In/min Rapid Traverse, 650 In/min Max Cutting
Spindle Nose to Table: 29″ (max), 4″ (min)
Table Size: 52″ x 18″
Max Weight on Table: 3500 lbs (evenly distributed)
Spindle HP: 30
Max Speed: 8100 rpm
Max Torque: 90 ft-lb @2000 rpm
Taper: CAT 40
Bearing Lubrication: Air/Oil Injection
Cooling: Liquid Cooled
Tool Positions: 24
Max Tool Diameter: 3.5″
Max Tool Weight: 12 lbs
Tool to Tool Average: 4.2 Seconds
Electrical: 208-280 Volts, 3 Ph
Air Requirements: 4 SCFM, 100 PSI
Equipped With:
Side Mount Tool Changer (24+1 Tools), 4th Axis Drive and Wiring, , Programmable Coolant Nozzle, Chip Auger,

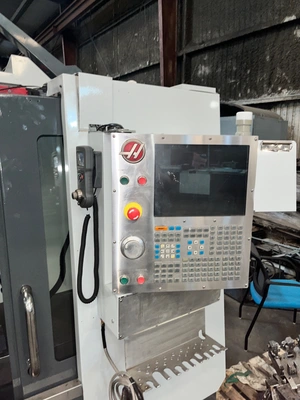

Remote Hand Jog Handle
55 Gallon Coolant System with Coolant Level Detection .
High Intensity Lighting,

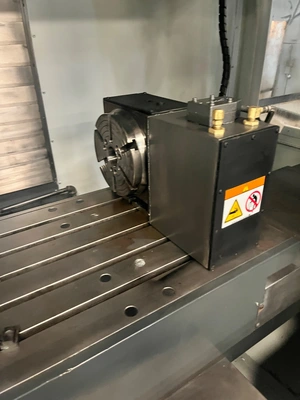

*** HRT 210 mm Rotary Table,
