Specifications:
Core Specifications:
Feature Specification
Capacity: 50 tons
Ram Travel: 4″
Screw Travel: 7″
Width Between Uprights 32-3/4″ (approx. 32.75″)
Width Between Table Channels 7-1/4″ (approx. 7.25″)
Minimum Ram-to-Table Distance 5″
Maximum Ram-to-Table Distance 40″
Horizontal Workhead Travel 20-3/4″
Overall Height 85″
Footprint (Base) 43-1/2″ × 36″ (L × W)
Weight ~810 lb
Key Features & Included Accessories:
Rapid Ram Return: Ram returns immediately when the release valve is opened and can be stopped at any point by closing it.
By-Pass Hole: Prevents excessive ram extension.
Rapid Screw Traverse: Quick manual adjustment by handwheel for efficient operation.
Adjustable Table: Self-locking hoist allows easy vertical repositioning of the table.
Movable Workhead: Roller-mounted on ball bearings to allow off-center positioning.
Standard Equipment Included:
Frame
Two forged steel V-blocks
Two forged steel table plates
Flat ram nose and V-ram nose
Pressure gauge
Self-locking table hoist
Description:
What It Does

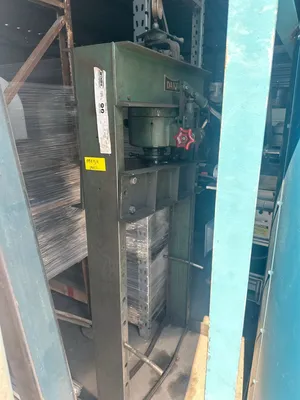

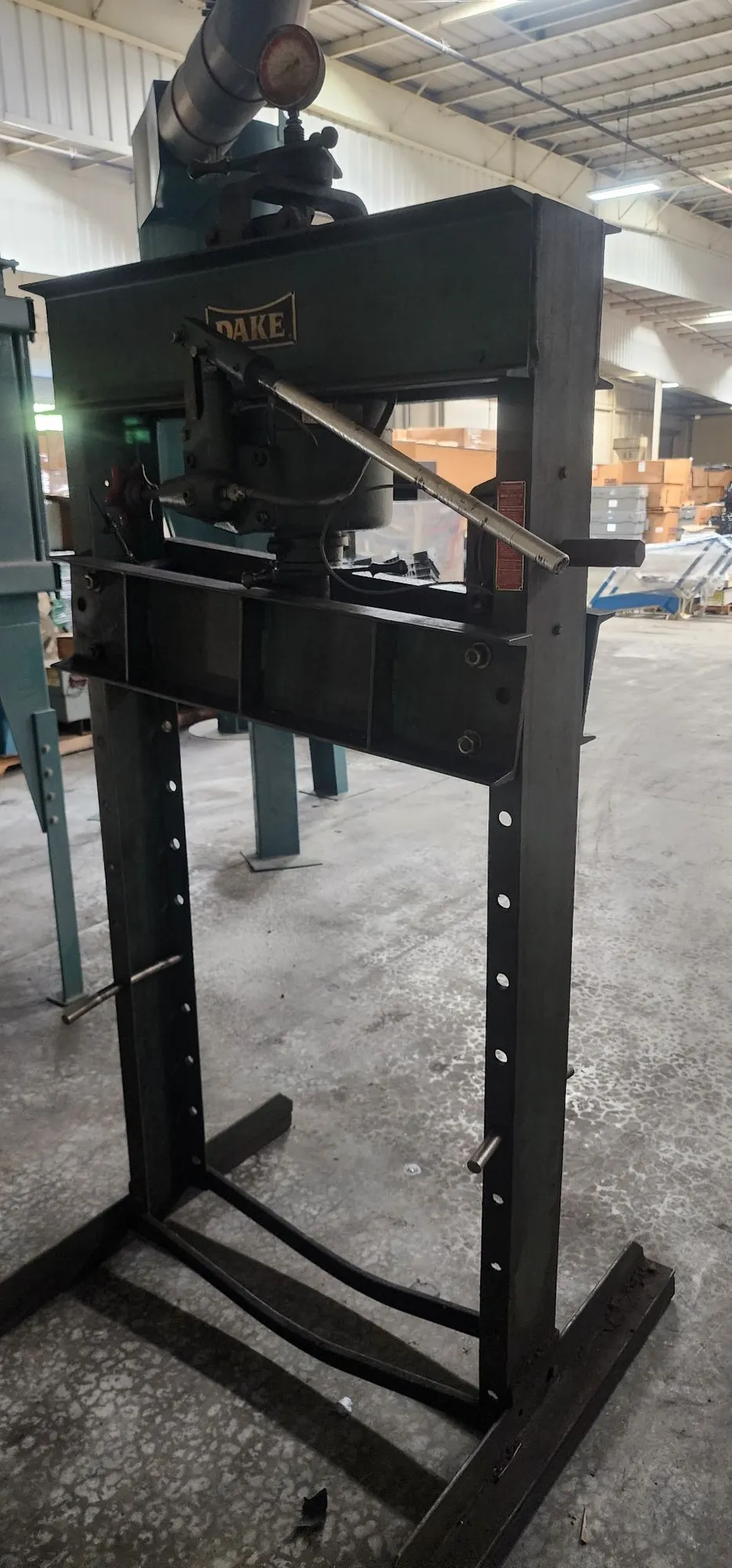

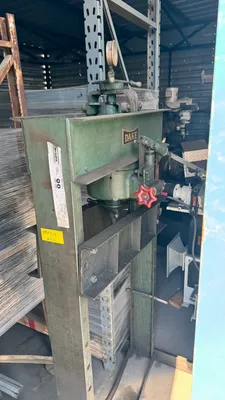

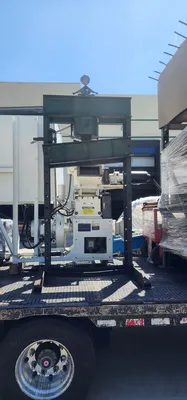

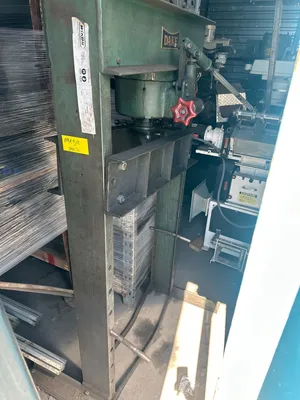

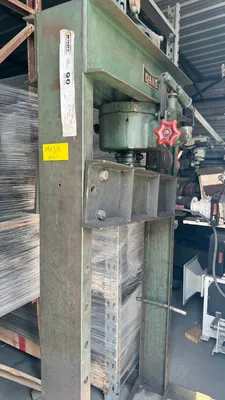

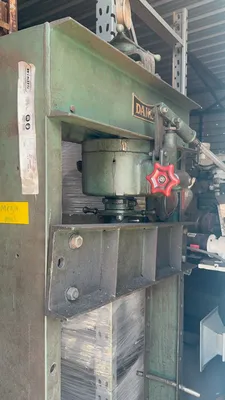

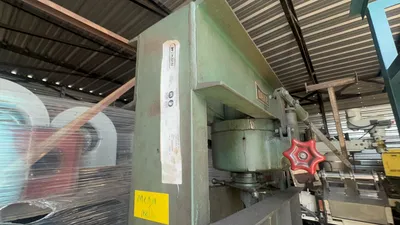

The DAKE 50H is a 50-ton capacity hand-operated hydraulic H-frame press designed for precision pressing, bending, straightening, and forming tasks. It combines manual screw adjustment with powerful hydraulic operation, giving operators flexibility, control, and consistent results in industrial and maintenance applications.
⚙️ Key Specifications
Model: 50H
Serial No.: 187123
Capacity: 50 tons
Ram Travel (Hydraulic Stroke): 4″
Screw Travel (Manual Adjustment): 7″
Horizontal Workhead Travel: 20-3/4″
Width Between Uprights: 32-3/4″
Width Between Table Channels: 7-1/4″
Min. Ram-to-Table Distance: 5″
Max. Ram-to-Table Distance: 40″
Overall Height: 85″
Base Footprint: 43-1/2″ × 36″
Weight: ~810 lbs
Operation: Hand pump with rapid return
Included Accessories:
Pressure gauge
Two forged steel V-blocks
Two forged steel table plates
Flat ram nose & V-ram nose
Self-locking table hoist
🔧 Functions & Capabilities
Press fitting bearings, bushings, and gears
Straightening shafts, bars, and structural components
Bending and forming flat stock or plate
Punching and shearing (with optional tooling)
Aligning and assembling mechanical components
Movable workhead for off-center operations
💡 Common Applications
Component assembly & disassembly
Metal forming and shaping
Straightening bent or twisted parts
Heavy-duty maintenance & repair work
Custom fabrication projects
🏭 Used In Industries Like
Manufacturing & fabrication
Automotive repair & restoration
Heavy equipment maintenance
Aerospace & defense
Agriculture equipment service
Rail & marine repair facilities
📌 Summary Description
The DAKE 50H is a rugged, versatile, and precise 50-ton hand-operated hydraulic press, ideal for shops that need consistent power and control without relying on electric or air systems. With its dual travel system (manual screw and hydraulic ram), adjustable table height, and horizontally movable head, it can handle a wide range of part sizes and shapes. Built with a welded steel frame and high-quality hydraulic components, the 50H is engineered for decades of dependable service in demanding industrial environments.
The DAKE 50H is a robust, hand-operated hydraulic H-frame press with a solid 50-ton pressing capacity. It’s built for flexibility and ease of use—featuring rapid adjustments, a movable head, and adjustable table height. Weights in at about 810 lbs, it stands 85 inches tall and handles workpieces up to 40 inches from the ram.
