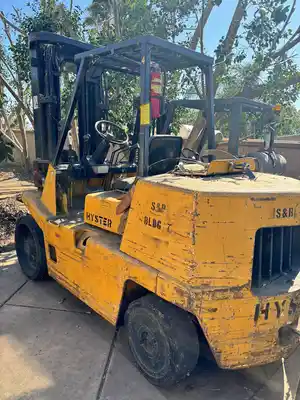

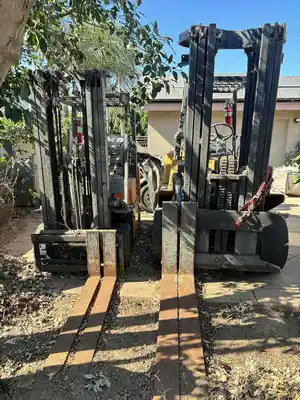

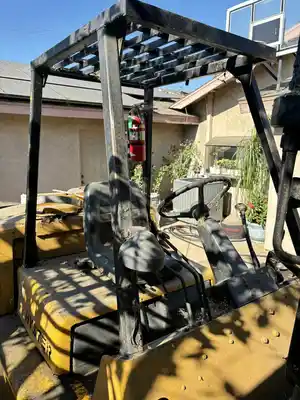

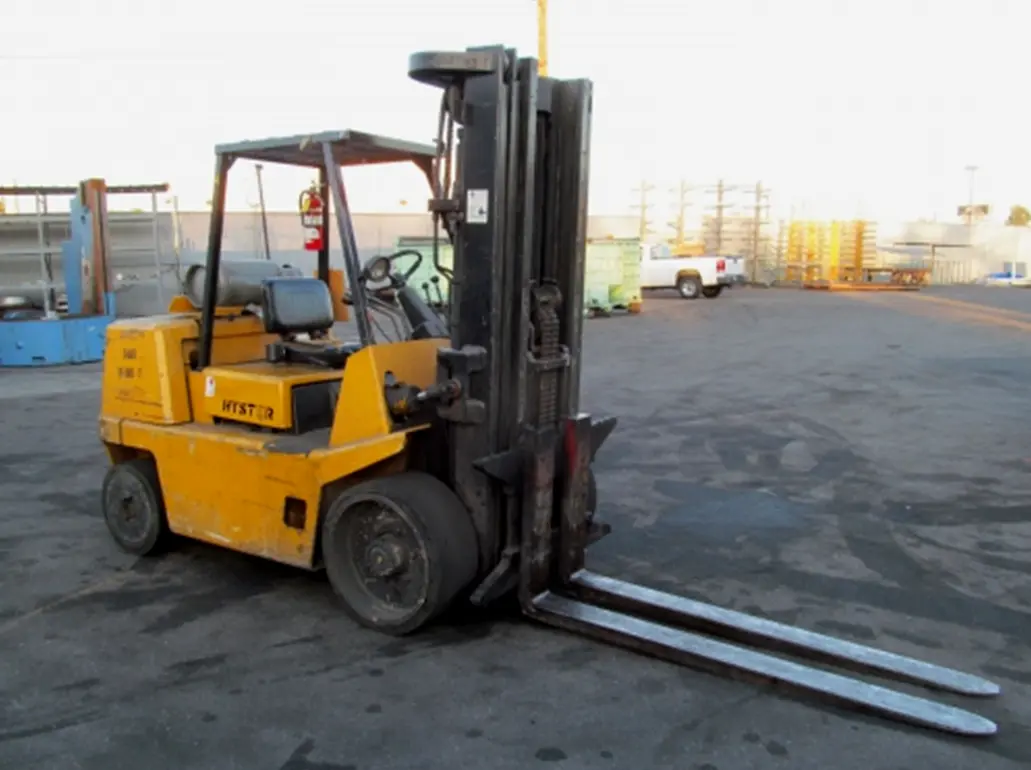

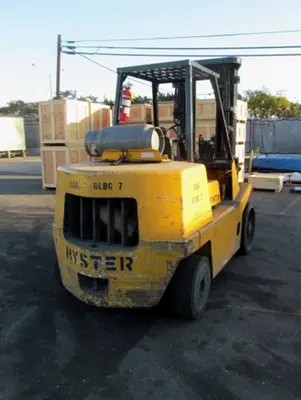

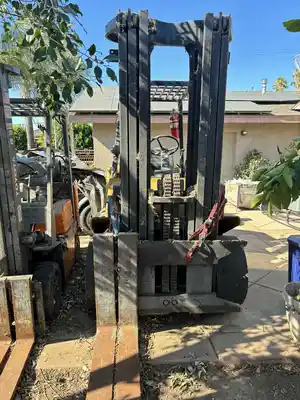

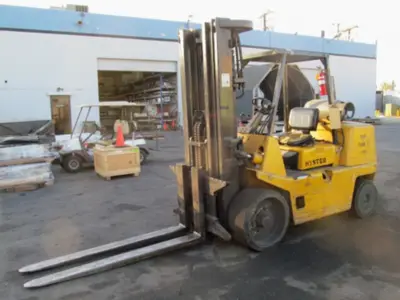

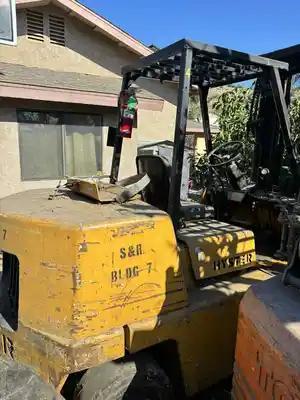

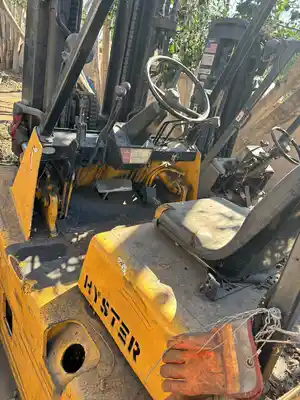

USED HYSTER S135XL2

Specifications:
General Description

• Model: S135XL

• Series: C024 (Industrial-grade internal combustion cushion tire)

• Fuel Type: LPG (Liquid Propane Gas)

• Configuration: Cushion tire, counterbalanced forklift

• Serial Prefix: B024D... (indicates C024 series, ~2007–2010)

• Frame: Heavy-duty welded steel chassis

• Overhead Guard: Full cage with fire extinguisher mount

________________________________________

📐 Key Specifications

• Rated Capacity: 13,500 lbs (6,123 kg) @ 24" load center

• Lift Height (Standard 2-stage mast): ~133" max

• Mast Lowered Height: ~89" (varies by mast)

• Length to Fork Face: ~115.3"

• Overall Width: ~56.6"

• Turning Radius: ~101.8"

• Fork Size: Typically 42"–48"

________________________________________

⚙️ Engine & Powertrain

• Engine: GM 4.3L V-6 (LPG or diesel depending on config)

• Horsepower: ~91 HP (68 kW)

• Transmission: Powershift (2F/2R standard, optional 3F/2R DuraMatch™)

• Drive: Rear-wheel with differential

• Travel Speed: ~12.0–12.5 mph (no load)

________________________________________

📏 Hydraulics & Brake System

• Hydraulic Functions: Lift, tilt, side-shift (optional)

• Hydraulic Tank Capacity: ~19.8 gallons (75 liters)

• Brakes: Oil-cooled, wet disc brakes

• Cooling: Sealed system with large core radiator

________________________________________

🔋 Fuel & Fluids

• Fuel Capacity (LPG tank): Standard 33 lb cylinder mount

• Diesel Option: ~17.4 gallons tank (if equipped)

• Engine Oil: 6.3 qt capacity (approx.)

• Transmission Fluid: 12 qt capacity (approx.)

________________________________________

📦 Tires & Weight

• Tire Type: Cushion (solid rubber)

• Front Tires: ~28×12–22

• Rear Tires: ~22×12–16

• Unloaded Weight: ~19,200 lbs (8,709 kg)

• Max Loaded Weight (depending on configuration): ~32,700 lbs

________________________________________

🔧 Operator Features

• Onboard computer: Pacesetter VSM™

• Adjustable steering column

• Analog gauges (fuel, oil, temp, hour meter)

• Ergonomic seat and pedal layout

• Optional cab enclosure or weather protection kits

________________________________________

🏭 Ideal Applications

• Warehousing & logistics

• Heavy manufacturing

• Steel, plastics, or lumber handling

• Indoor smooth-surface material transport

• Distribution centers
