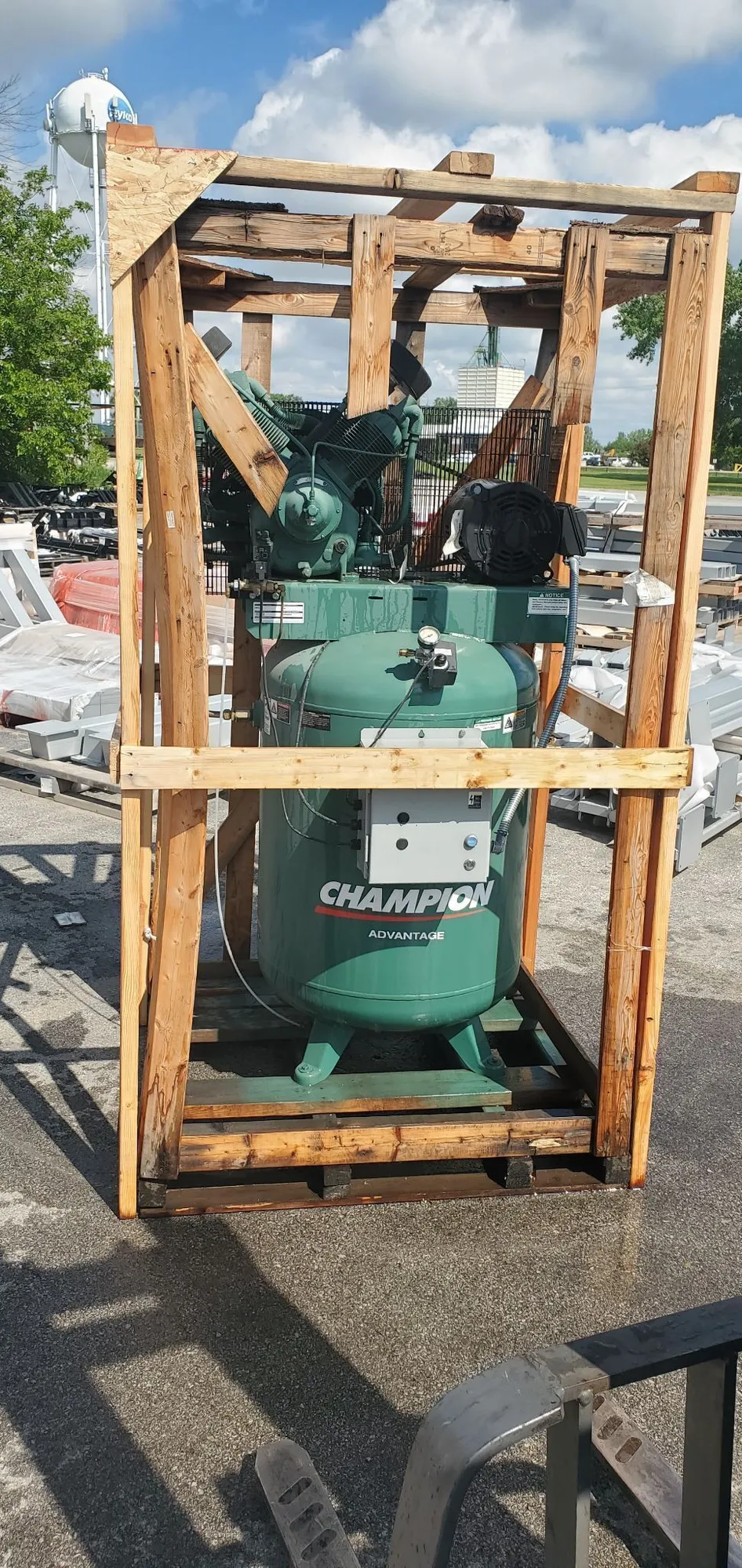

NEW CHAMPION VR10-12 ADVANTAGE

The Champion VR10-12 is a reciprocating air compressor with a 120-gallon tank capacity and a heavy duty two-stage pump. It's an ideal size for small business such as car washes, paint shops, and other industrial shops that require significant power and functionality with a compact footprint. The VR10-12 is vertically mounted, which is helpful in equipment rooms that don't have a lot of extra space. This compressor has a reputation for being reliable and easy to maintain, provided you keep up with routine oil changes.

Technical Specifications
Tank Capacity: 120 gallons
Motor: 10 horsepower
Phase: 3
PSI Rating: 175
RPM: 718
CFM Delivery: 33.8
Tank Position: Vertical
Voltage: 230
Dimensions: 43" x 30" x 81"
Weight: 895 lbs
Type: Reciprocating, stationary (not portable)
Champion SKU: VR10-12
Features
Heavy Duty 2 Stage, Splash Lubricated Air Compressor Pump
Multi-Finned Cylinders
Integral Cylinder Head
Intercoolers for Cooling Between Stages
Reliable High Flow Disc Valves
Oversized Main Bearings
Balanced Crankshaft
Oil Level Site Glass
Centrifugal Unloader for Loadless Starting
Durable cast-iron construction
ASME Code Air Receiver: Pressure Relief Valve, Service Valve, Drain Valve, Pressure Gauge
Oversized Inlet Filter
Mounted Control Panel
Automatic Electric Timed Drain
Vibration Isolators
Low-Oil Stop Control
