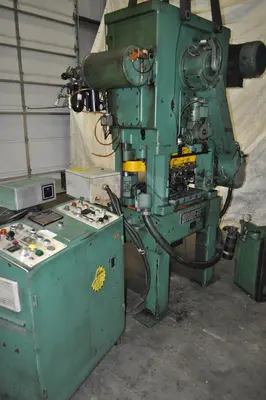

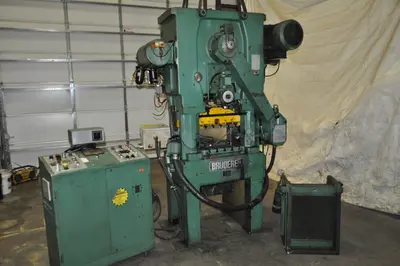

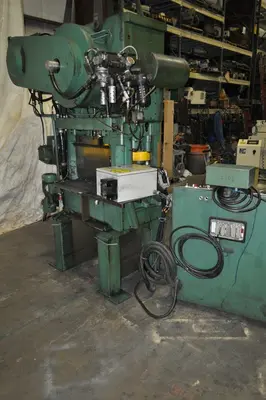

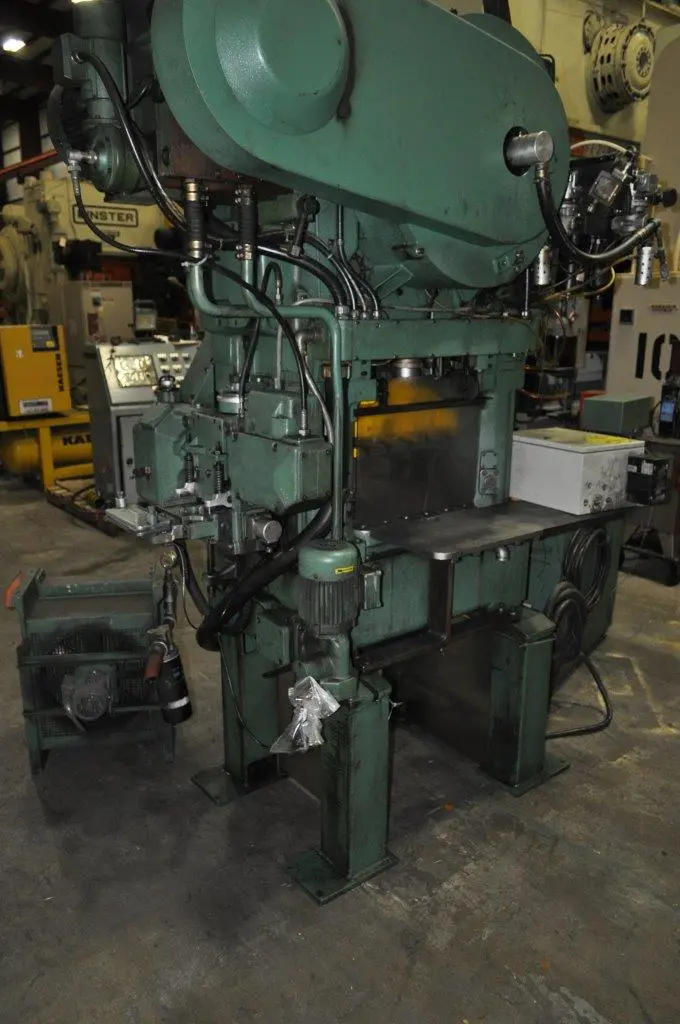

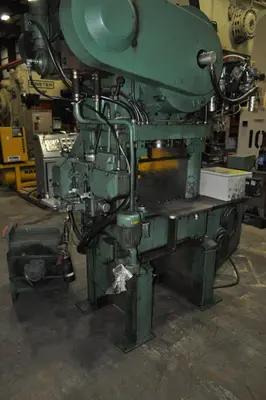

USED BRUDERER BSTA 30 II

Air Clutch + Brake

TOP Driven Design

Behr Oil Cooler

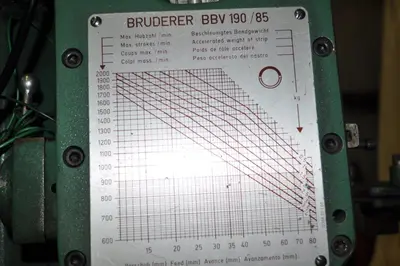

6.3” BBU 190/85 Feeder, 0.160” thick x 3.35” stroke

MODEL: BSTA 30 II

CAPACITY: 30 TON

SERIAL#: 2048

STROKE LENGTH: ½” – 1 ½ (adjustable)

VARIABLE SPEED: 875 – 1500 SPM

SHUT HEIGHT (SDAU): 9.17”

DIE HEIGHT ADJUSTMENT (MOTORIZED): 2”

SLIDE AREA (L-R, F-B): 18” x 14 ½”

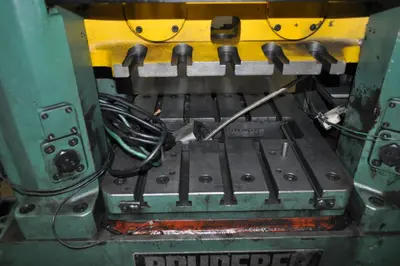

BED AREA (L-R, F-B): 21” x 20 ½”

MAIN DRIVE MOTOR: 25 HP, 230/460/3/60

YEAR: NEW 1985 approx.

DIMENSIONS (LxWxH): 111” x 52” x 98”

LOCATION: Monclova, OHIO
