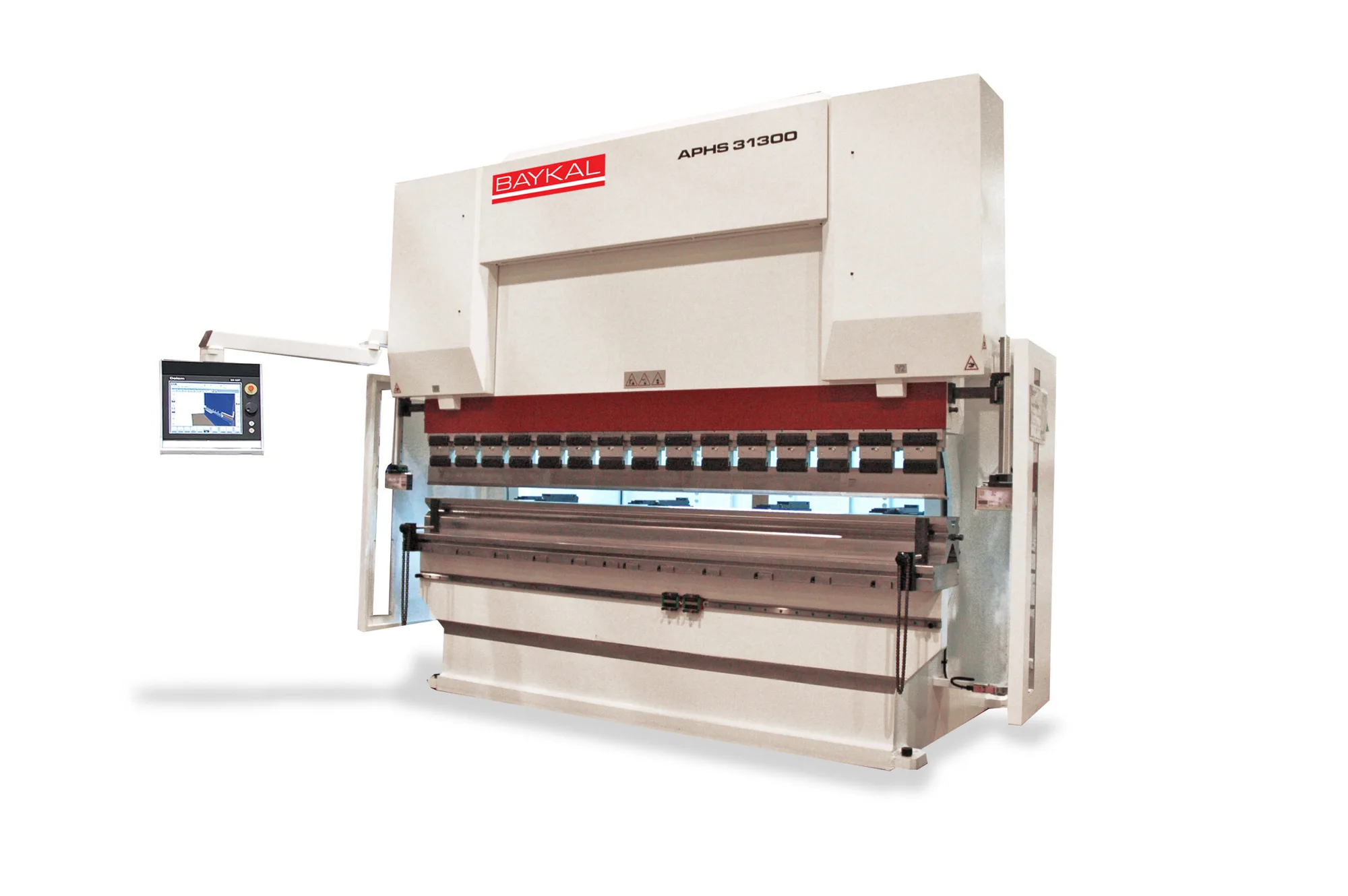

Baykal Hydraulic Press Brakes

PRODUCT HIGHLIGHTS
Complementary Tooling – Precision ground European Tooling supplied with each machine.
Safety Code- CSA Z-142 compliant. Designed to meet a PRE-Start Health & Safety Review  (PSR)
Engineering – All machine designs go through a detailed Finite Element Analysis (FEA) Baykal uses NASTRAN engineering software that was designed, developed  for  NASA. This is the only software that NASA uses for FEA of all their spacecraft!
Quality Components – Hoerbiger Valves, German product (locally available) – Delem Control: The most widely used Press Brake control in the world. Used in most European Precision Press Brakes ….making it easy to find operators.
Machines are equipped with upper ram tool holders that allow the use of both North American and European Precision Ground tooling.
Intermediate subplate between ram and die holders allows for easy maintenance and set-up of tooling.
Rigidly welded, monoblock steel frame for minimum deflection under load
Downstroking bending beam with two cylinders made from high-quality forged steel and precisely honed
Ram travel fully supported in low friction fiber slideways
Full electronic synchronisation with proportional valve technology assuring maximum bend accuracy and repeatability through constant monitoring and correction of beam parallelism by a CNC system
Stroke-depth measurement through high-precision linear scales
CNC-controlled backgauge on ballscrew spindles with DC drive
Block-type European hydraulics
Compactly-wired electrical box with ventilation
Delem 66T CNC Touch Screen Control
Full conformity with EC Machinery Directive for safety and certified CE marking
