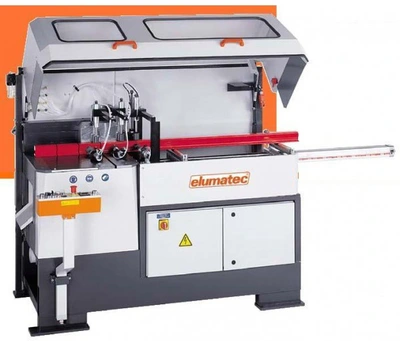

USED ELUMATEC SA 142/35
Overview
Description
FEATURES
Suitable for high-volume cutting of aluminum profiles for window manufacturing and industrial applications
Material Infeed (incremental) protects the surface of the workpiece by means of a single-stage lifting system
1, 2 or 3 storkes are possible by means of a selection switch
Accurate material infeed by 2 horizontal clamping cylinders
Saw cuts at angles up to 45º due to the tilting possibility of the saw head (optional)
Large cutting capacity for wide profile sections
Equipped with saw blade
Pivoting range 90º – 45º infinitely adjustable (optional)
Compressed air supply – 7 bar
Air consumption per working cycle 50/ without mist spray, 64 /with mist spray
Other Models available: SA 142/36
Specifications
MODEL: SA 142/35
SAW BLADE DIAMETER: 500 mm
SPINDLE SPEED: 2800 RPM
POWER SUPPLY: 230/400/3/50
POWER OUTPUT: 4 kW
DIMENSIONS (LxWxH): 112" x 55" x 62"
WEIGHT: 1,698 LBS
