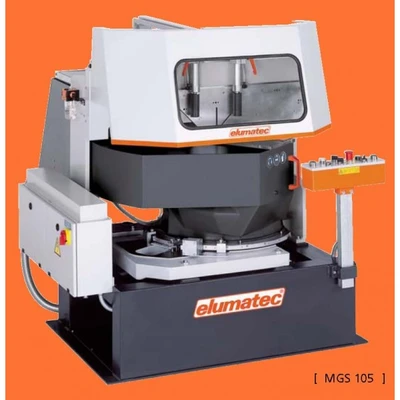

USED ELUMATEC MGS 105

FEATURES
Free access for optimum loading/unloading of profiles
Patented saw arm suspension creates a cutting pressure towards the back fence which provides safe clamping of the workpiece
Automatically opening safety of hood
Pulsed coolant system
Equipped with saw blade
Pivoting range manual, to the left and to the right up to 22,5º with digital display E111
Tilting range pnematic from 90º to 45º
Air consumption per working cycle 20/ without mist spray, 32 /with mist spray
Compressed air supply – 7 bar

MODEL: MGS 105

SAW BLADE DIAMETER: 420 mm

SPINDLE SPEED: 2800 RPM

POWER SUPPLY: 230/400/3/50

POWER OUTPUT: 4 kW

DIMENSIONS (LxWxH): 59" x 55" x 74"

WEIGHT: 1,411 LBS
