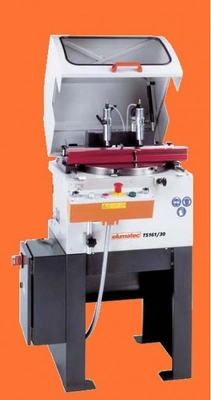

USED ELUMATEC TS 161/30

FEATURES
Fast and accurate cutting cycles are achieved by the short upward saw stroke
Wide angle cutting range. Up to 45º to the left and up to 0º to the right
Special pivoting mechanism with integrated round table enables working from the front at any angle position
Back fence is adjustable to allow the most effective use of the saw blade capacity for wide + flat profiles
Manual upward saw stroke
Pneumatic material clamping (vertical)
Pulsed coolant system
Air filter, regulator
Equipped with saw blade + machine base
Pneumatic Sawing feed
Safety Hood

MODEL: TS 161/30

SAW BLADE DIAMETER: 280 mm

SPINDLE SPEED: 3200 RPM

POWER SUPPLY: 230/400/3/50

POWER OUTPUT: 0.74 kW

DIMENSIONS (LxWxH): 25.6" x 29.5" x 52"

WEIGHT: 215 LBS
