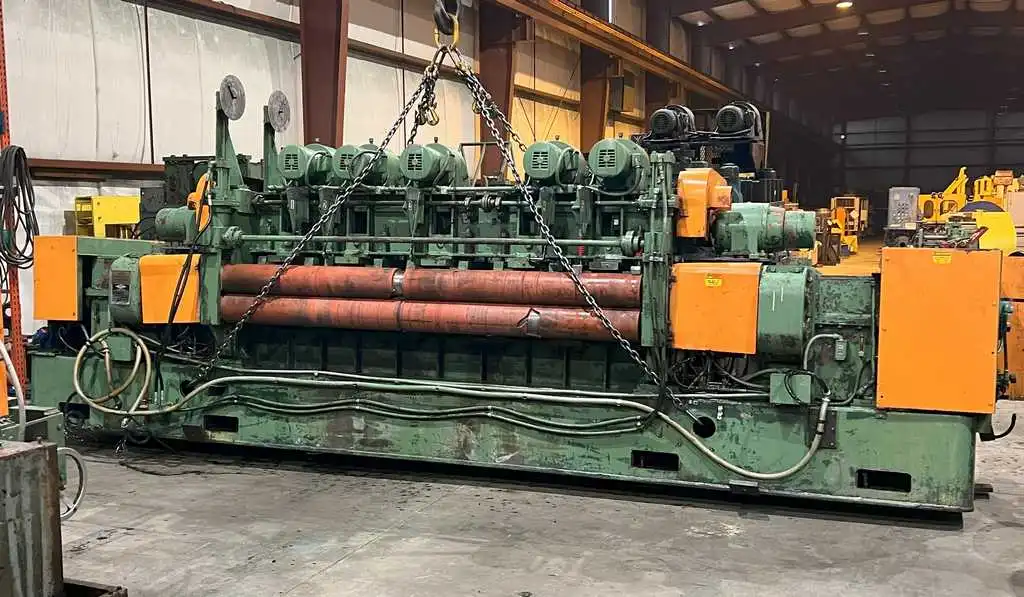

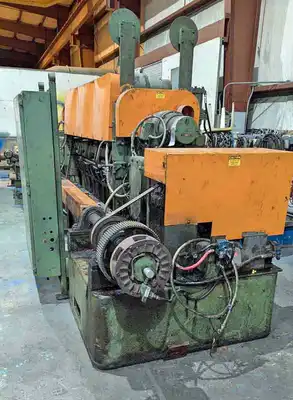

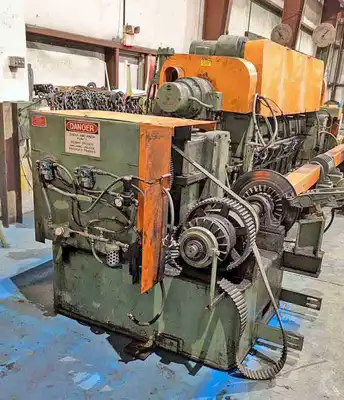

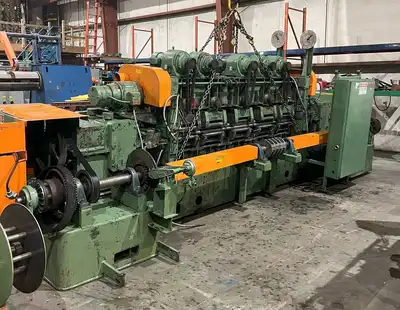

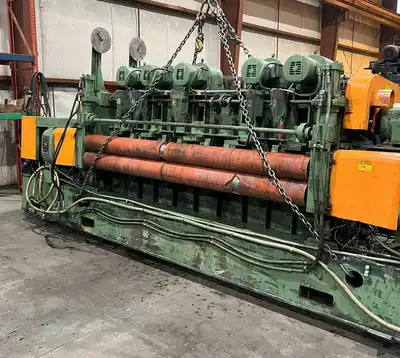

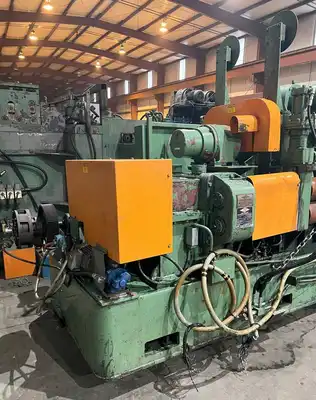

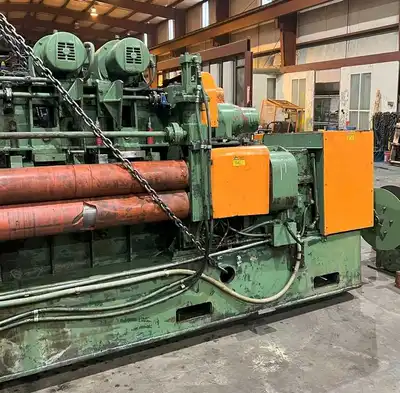

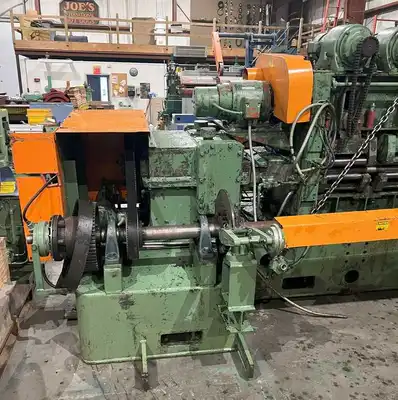

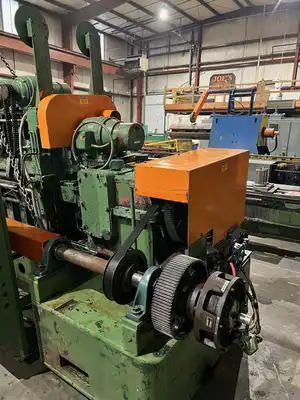

McKay Leveler
-17 Rolls (9 over 8)
(1 Top Roll Removed at exit end)
-2.0" Dia. x 112" Face Rolls
-Entry Driven Pinch Rolls

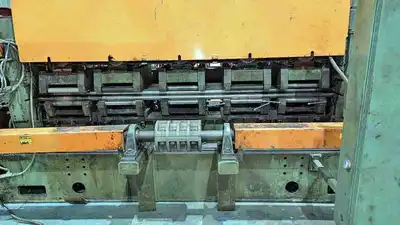

-5 Flights of Motorized Backups
(approximately 84" from center to center of #1 and #5 Backups)

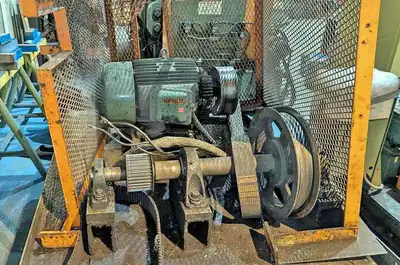

-50 HP AC Motor, 1760 RPM, 208-230/460 V
Belt Drive to Leveler

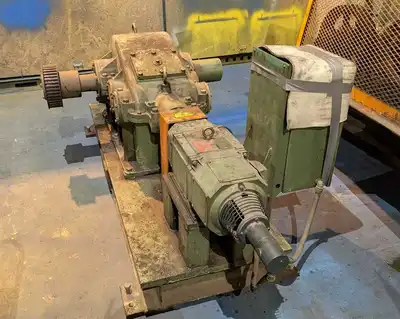

-5 HP Reliance DC Motor, 1750/2300 RPM, 500 V
Philadelphia Right Angle Reducer w/57.7:1 ratio
Belt Drive to Leveler
-Passline: 39"
-Overall Size: Leveler - 280" L x 83" W x 100" High; 38,000 lbs.
DC Drive - 101" L x 54" W x 39" High; 1,392 lbs.
AC Drive - 100" L x 53" W x 44" High
-In Storage: Toledo, OH
