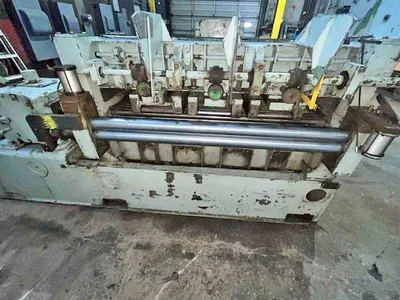

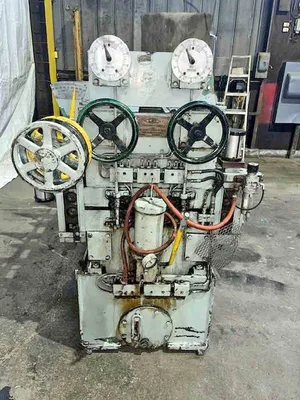

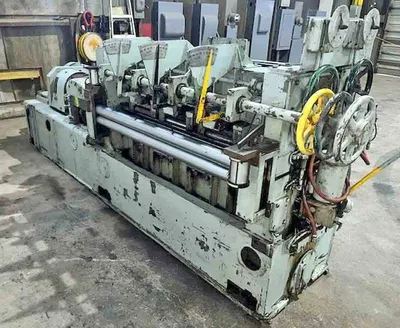

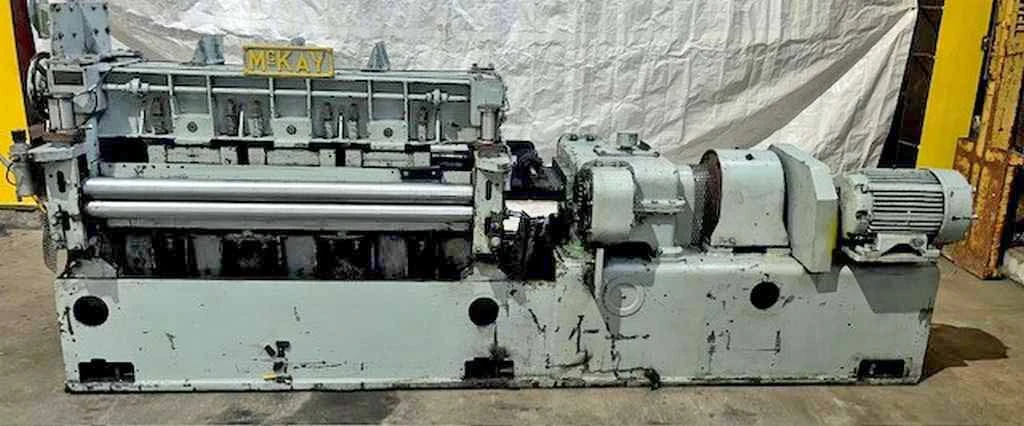

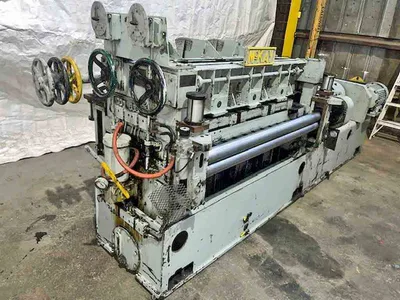

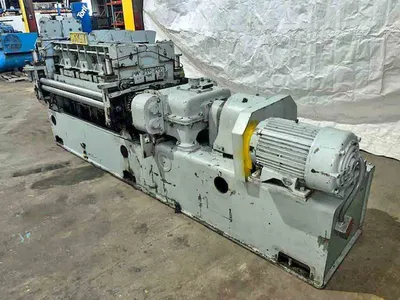

McKay Leveler
-Capacity: 48" x 0.030" Mild Steel (approx.)

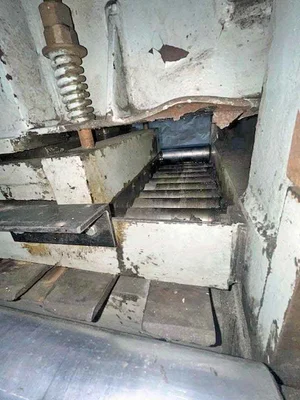

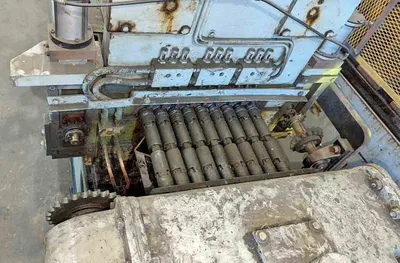

-17 Work Rolls, 9 over 8
-54" Face x 2.0" Dia. Rolls (approx.)
-Entry and Exit Pinch Rolls
Bottom Rolls Driven
Air Cylinder Loaded

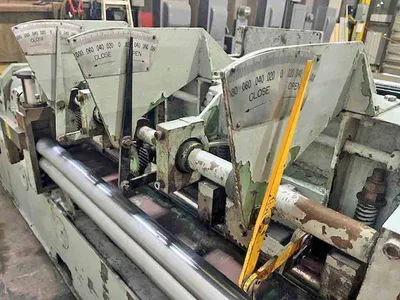

-3 Flights of Backups w/Manual Handwheel Adjustment

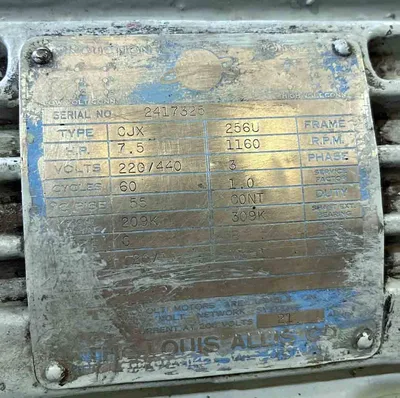

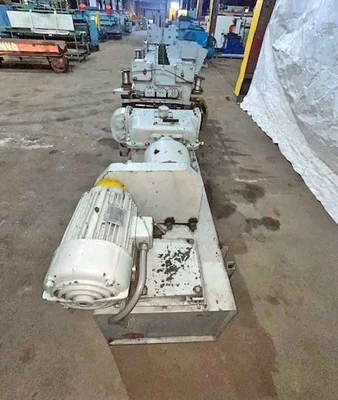

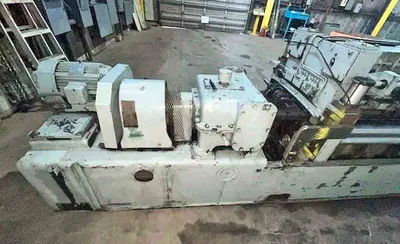

-7.5 HP Louis Allis AC Motor, 1160 RPM, 220/440 V
-Falk Reducer w/3.288:1 ratio
-Belt Drive w/2:1 ratio
-Line Speed: Approx. 90 FPM Max. (with existing motor)
-Passline: 32"
-Overall Size: 151" L x 42" W x 60" High
-In Storage: Toledo, OH
