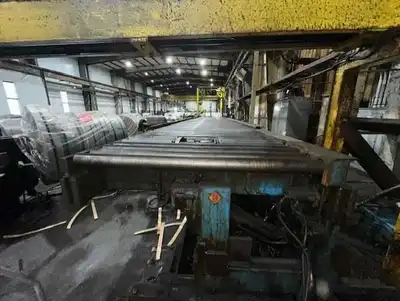

15,000# x 72" Pro Eco Banding Line Components
Overview
Specifications
Pro Eco Banding Line Components
-Maximum Weight: 15,000 lbs.
-Maximum Coil O.D.: 72"
Consisting of:

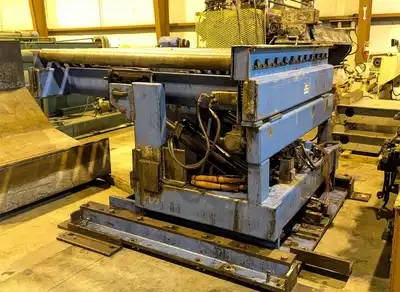

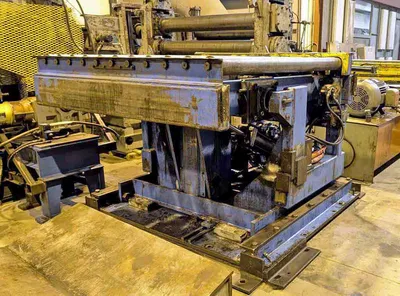

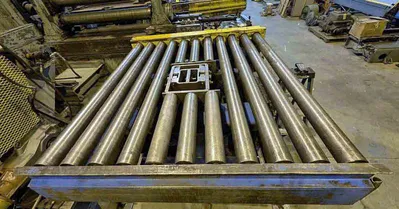

-Downlayer:
Roll Face: 72"
Roll Diameter: 4.50"
Passline: 61"
Horn Pass Line: 59"
Right Angle Discharge

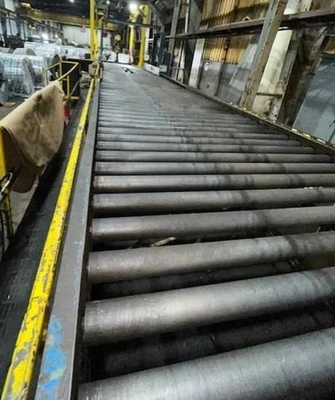

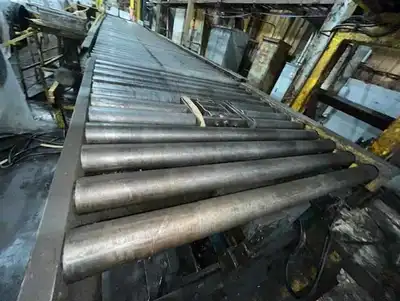

-Conveyor #1: (Sold)
Maximum Weight: 15,000#
Roll Face: 76"
Total Length: 25 Ft.

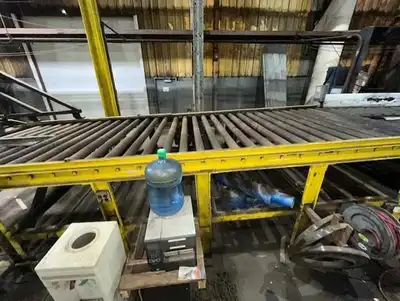

-Conveyor #2:
Maximum Weight: 15,000#
Roll Face: 76"
Total Length: 20 Ft.

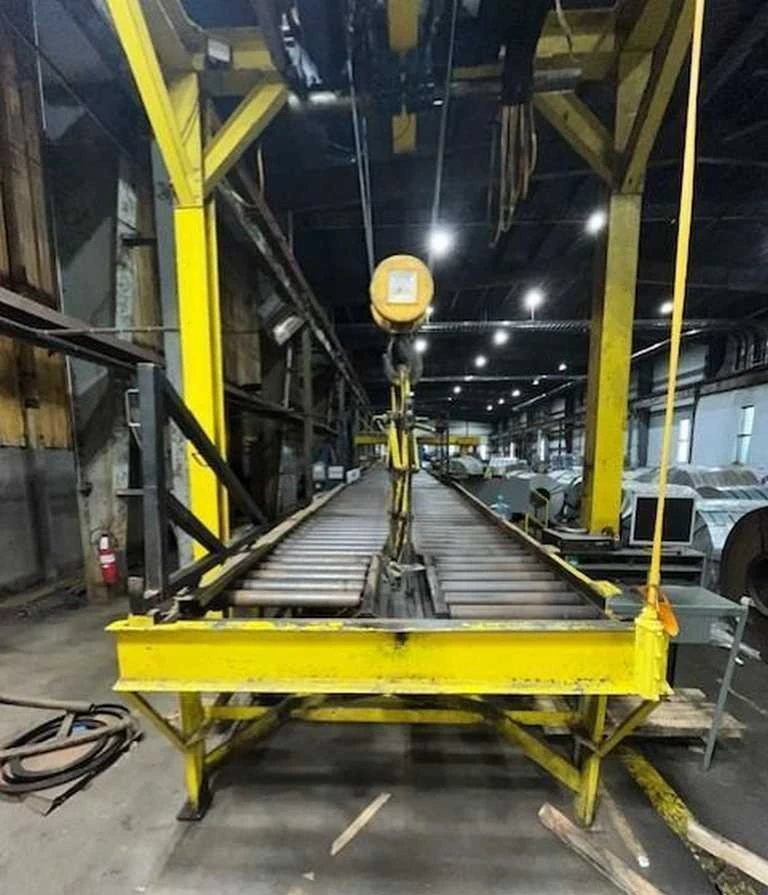

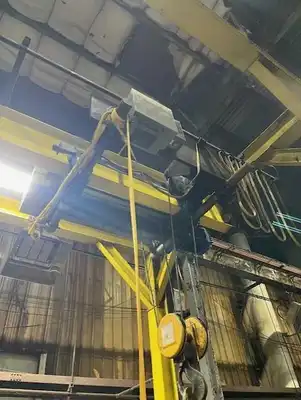

-Monorail Crane Hoist:
Maximum Capacity: 10 Ton (20,000#)
Lift Motor: 16.3 HP, 1730 RPM, 460 V
Traverse Motor: 0.8 HP, 460 V
Under Hook: 128" Approx.

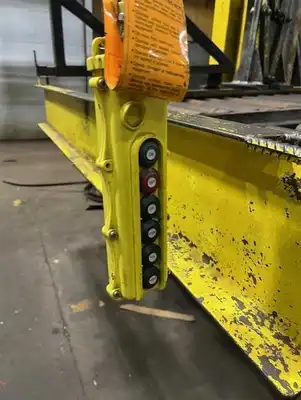

Hand Pendant Control
Was used on a Monorail structure
-In Storge: Toledo, OH.
