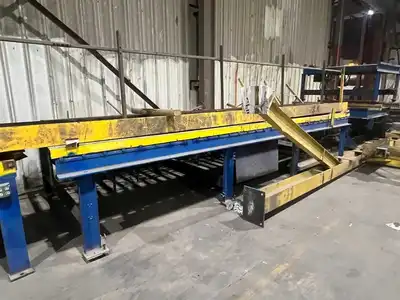

15,000# x 72" Pro Eco Banding Line

15,000# x 72" Pro Eco Banding Line

-15,000 lbs. Capacity
-72" O.D. Maximum
-30" O.D. Minimum
-20" & 24" I.D.
-24" Maximum Coil Width
-1" Minimum Width

Consisting of:

-Downlayer:
75" Roll Face
41" Pass Line
In-Line Discharge

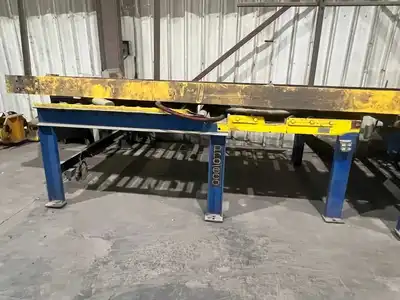

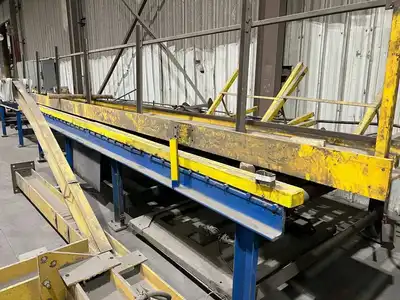

-Conveyor:
6' Long
75" Roll Face
41" Pass Line
Chain Driven

-Conveyor:
10' Long
75" Roll Face
41" Pass Line
Chain Driven

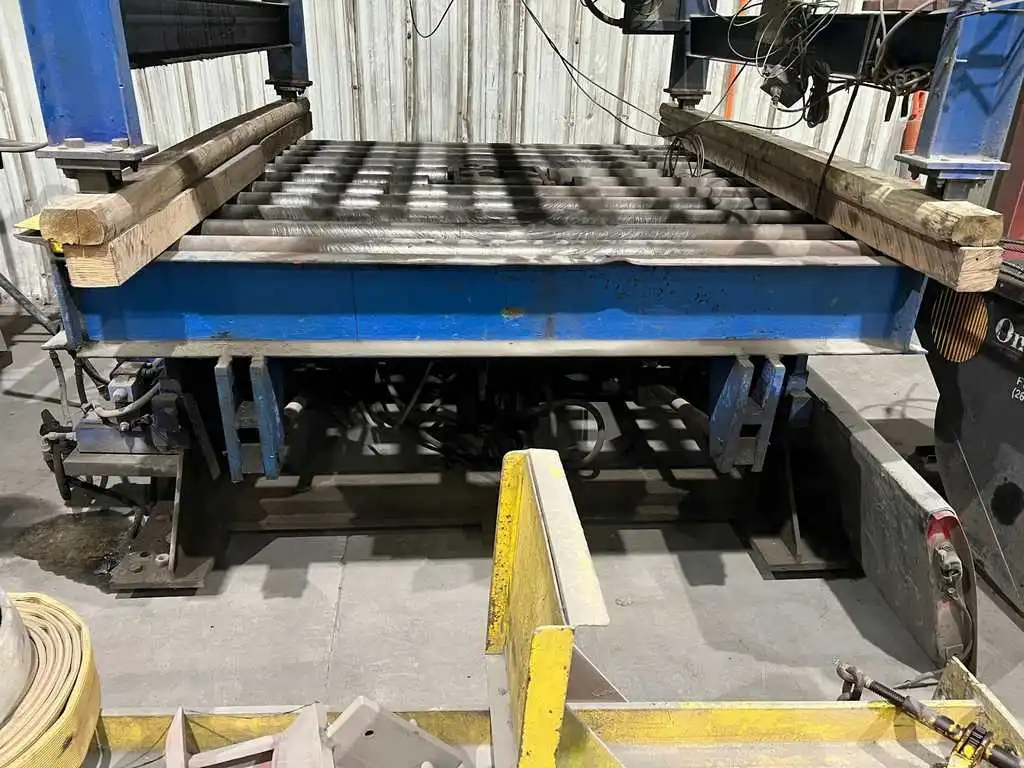

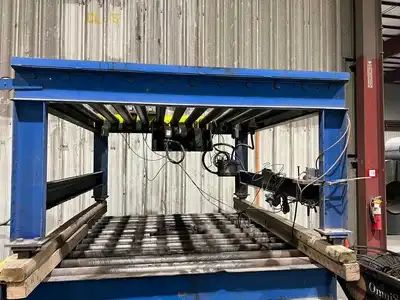

-Banding Table: (No Head)
3 Conical Rolls for rotation
Counter Balance Frame

-Conveyor:
20' Sections
6' Scale
(8) - 6' Sections & 4' Pick
ID Grab

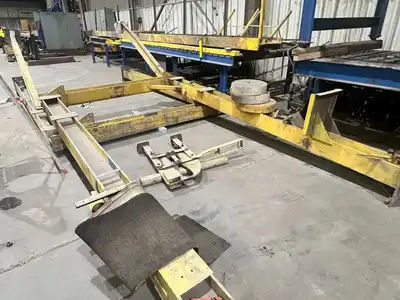

-34' Long Monorail:
12' High

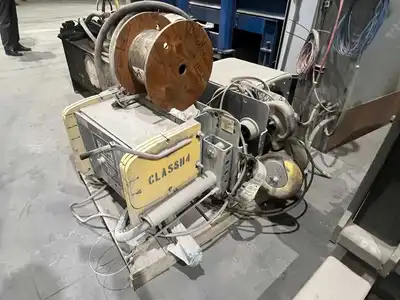

R & M Hoist
Coil ID Grab

-Electrical Characteristics:
460 Volts, 3 Phase, 60 HZ
Operators Stations
Electrical Cabinets

-Hydraulic Power Unit:

-Air Requirement:
10 CFM at 80 PSI

-Removed and in Storage
