YEAR: 2018

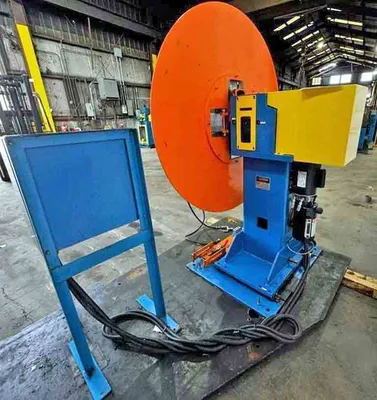

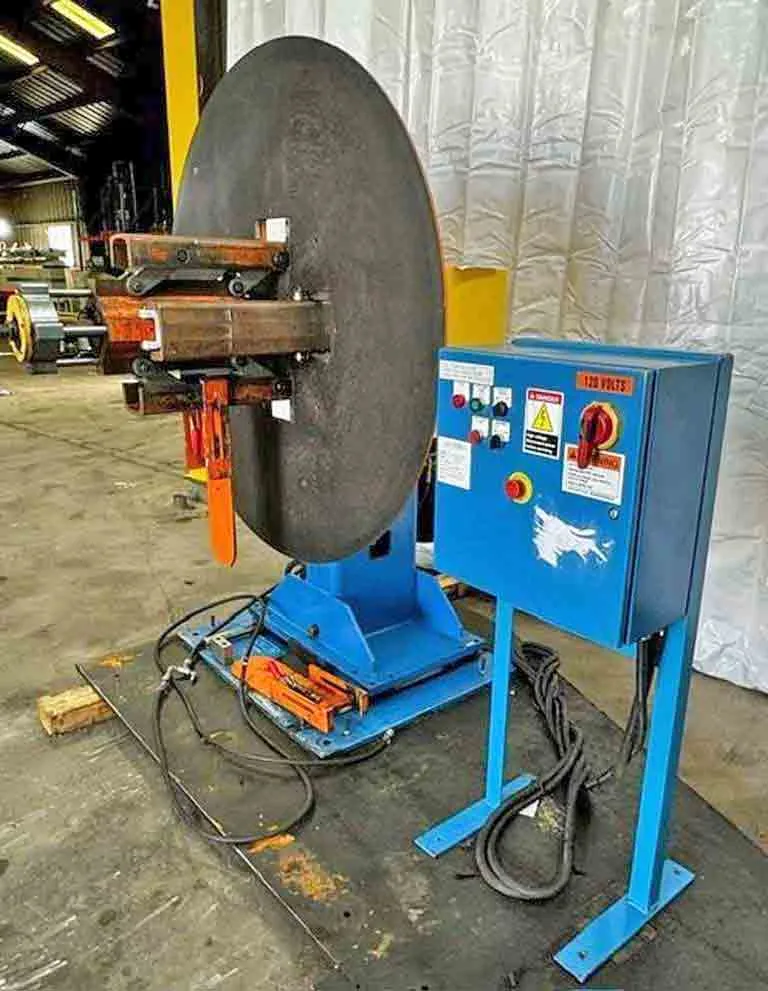

Machine Concepts Uncoiler

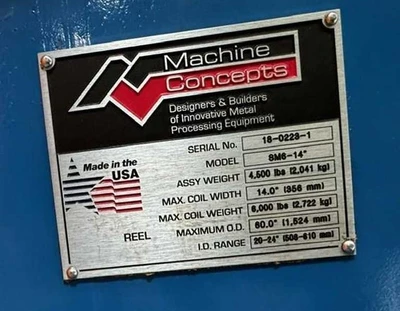

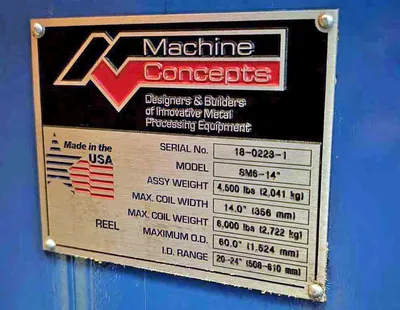

Model: SM6-14
Capacity 6,000 lbs
Width 14"
Coil ID Range 20" to 24"
Coil OD 60"

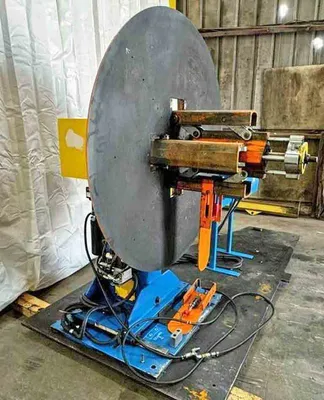

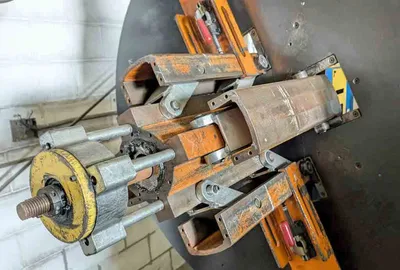

4 Leaf Mandrel; 18.5" Face
Hydraulic Expansion
Sliding Base

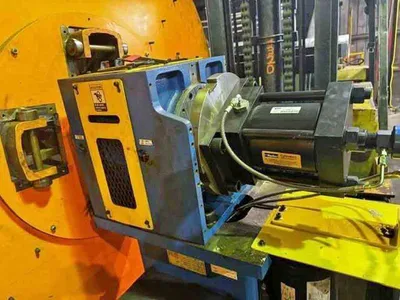

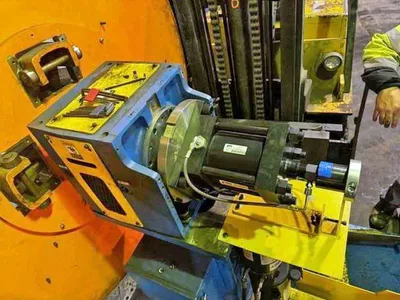

Air Brake

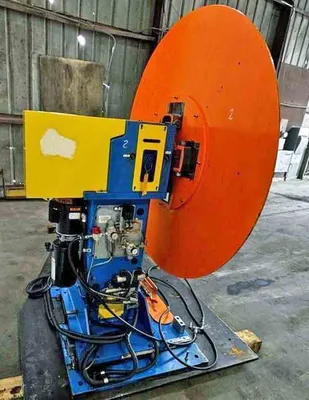

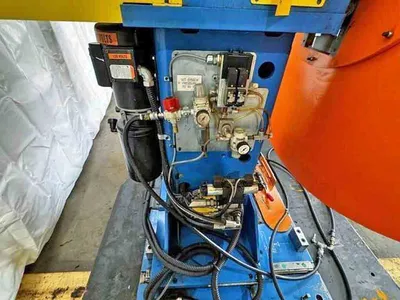

Self-Contained Hydraulic Power Unit
1 HP Leeson AC Motor, 115/208-230 V, 1 Phase, 60/50 Hz.
Full Size Back Plate
(2) Coil Keepers

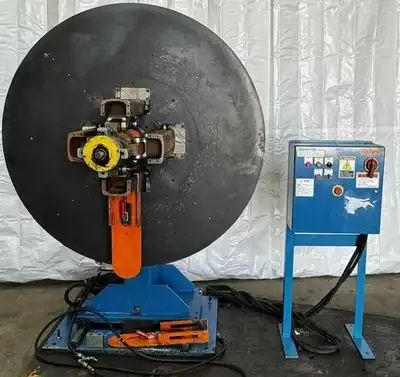

Operators Control Panel
Passline: 50" from Floor to center of Mandrel
Overall Size: 68" L x 62" W x 80" High
4,500 lbs.
Note: Uncoiler and Control Panel are mounted on a 121" L x 60" W plate.
Removed and in storage: Toledo, OH.
