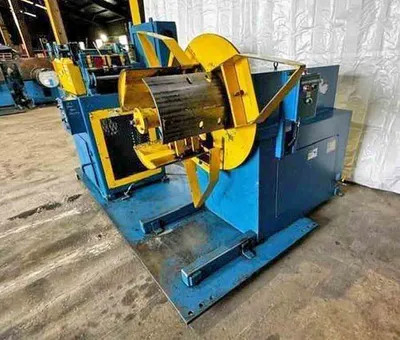

Minster/CHS Uncoiler:
Model: R40-12
SN: 11-6060
Capacity 4,000 lbs
Width 12" With Keepers (20" Face Mandrel)
Coil ID Range 20" to 24"
Coil OD 60"

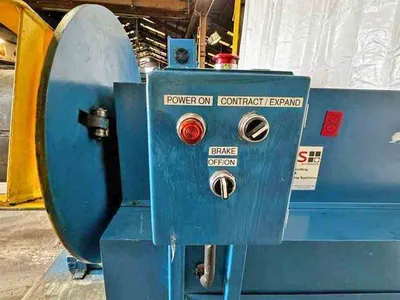

Hydraulic Expansion
3 Leaf Mandrel
Link Type Expansion
Eaton AirFlex Air Brake
36" Dia. Backplate

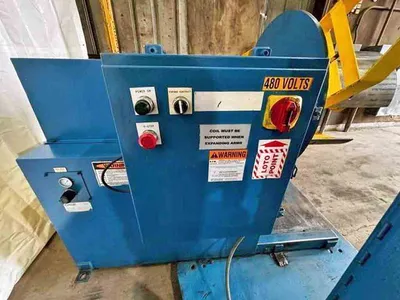

Self-Contained Hyd. Power Unit
Coil Keepers
Non-Driven
Passline: 41" from Floor to center of Mandrel
Overall Size: 80" L x 46" W x 57" High

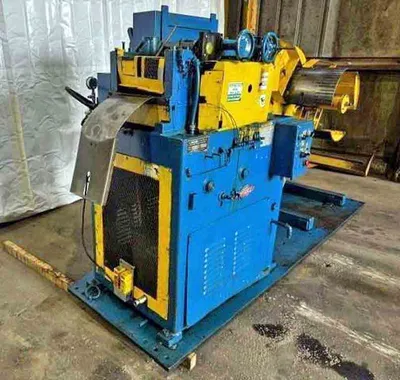

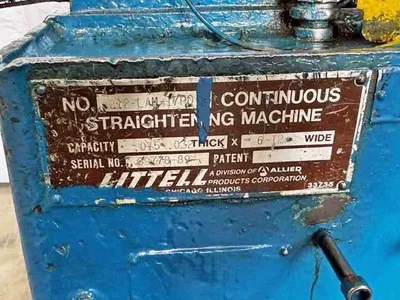

Littell Straightener:
Model: 212 LAM-17PD
S/N: 89778-89
Material Width 6" - 12"
Roll Size 2.0" Dia. x 14" Face
Roll Centers 2.25"
Number of Rolls 17
Thickness 0.015" - 0.032"
Max line speed 250 FPM

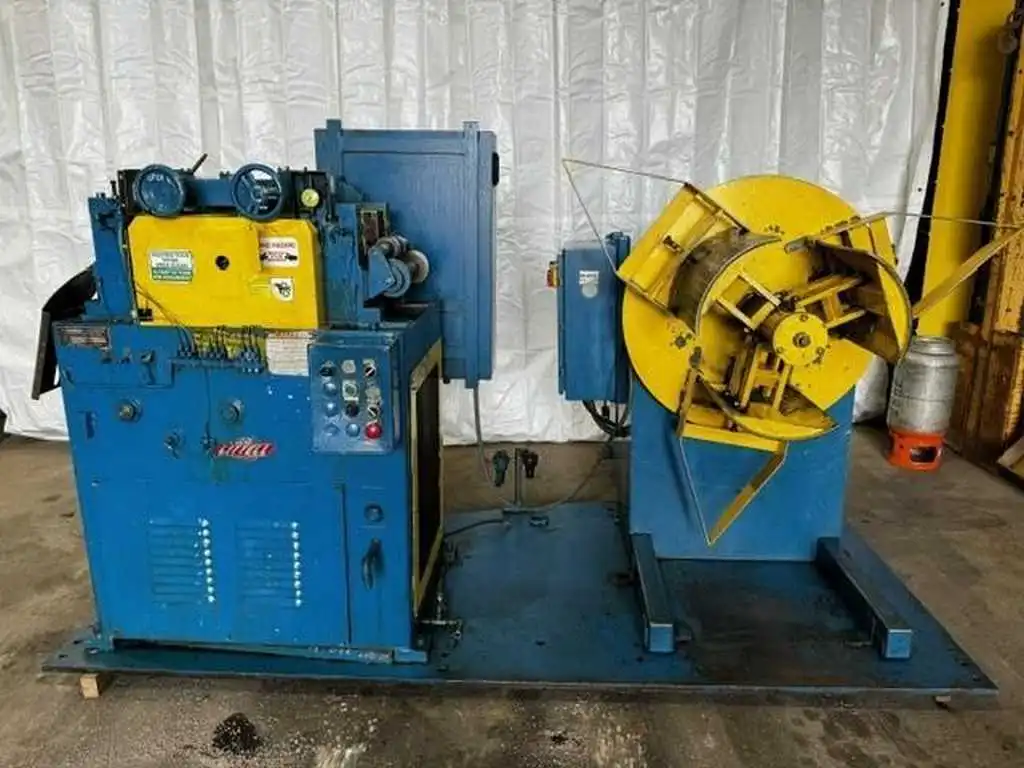

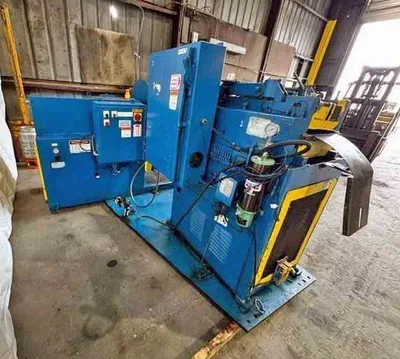

Straightener and Uncoiler mounted on common base
Line Direction: Right to Left
In storage: Toledo, OH.
