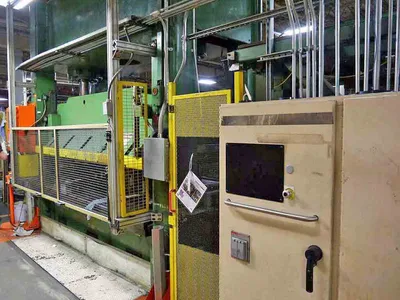

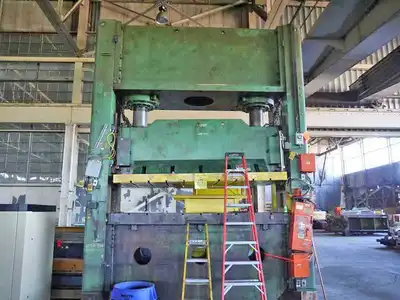

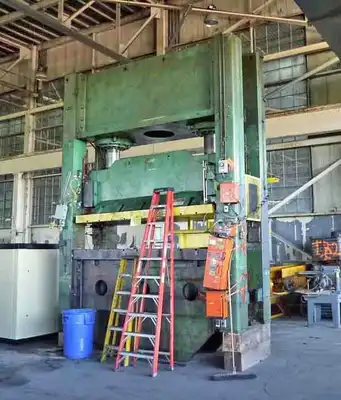

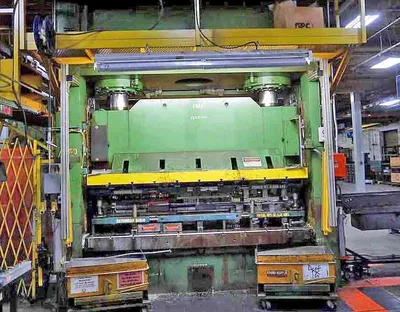

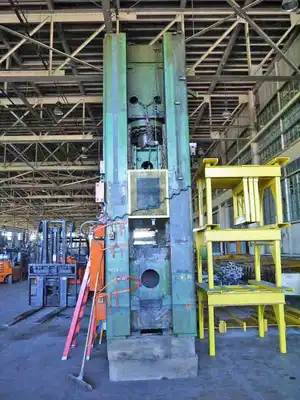

USED 1979 PACIFIC 600-D-10-54

YEAR: 1979

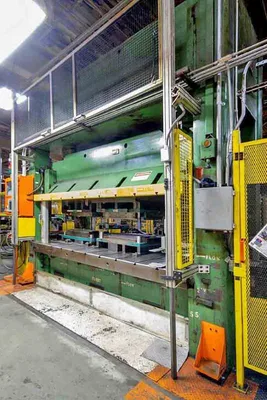

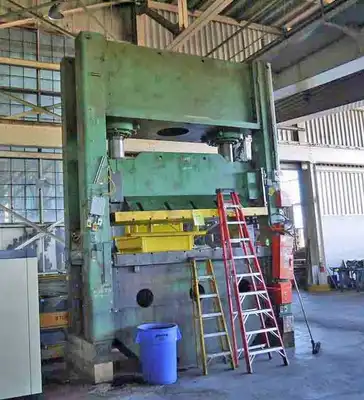

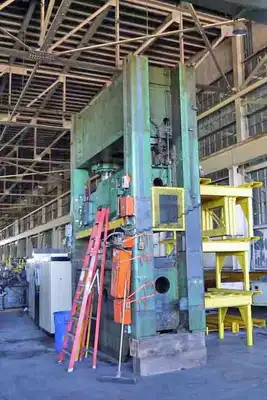

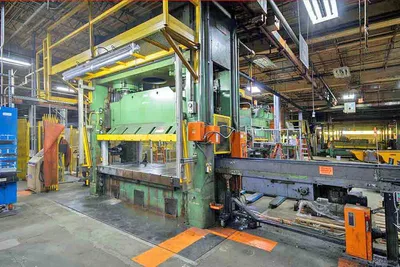

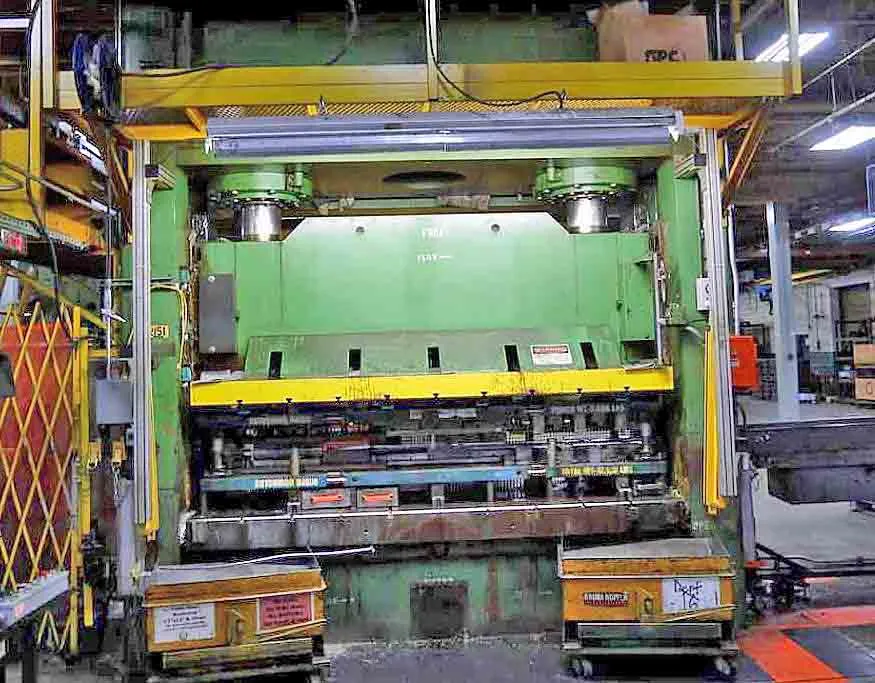

600 Ton Pacific Downstroke Self Contained Hydraulic Press
Housing Type - Gib Guided - Dual Cylinder - "T-Slotted" Bed and Slide

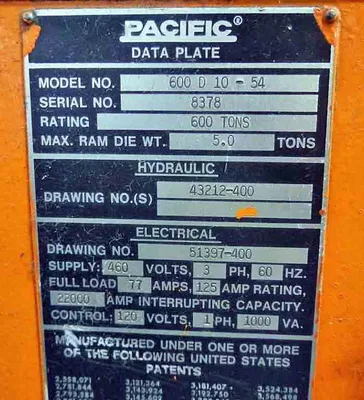

-Model: 600-D-10-54
-Bed Area (Nominal): 123" L-R x 54" F-B (T-Slotted F-B)
-Slide Area (Nominal): 123" L-R x 54" F-B (T-Slotted F-B)
-Distance Between Housings: 25" L-R
-Stroke of Gib Guided Slide: 0" - 18" Max.
-Daylight Opening: 36" Max.
-Max. Upper Die Weight: 10,000 lbs.
-Speeds Approx.: 192 IPM Fast Closing
74 IPM Slow Close
25 IPM Pressing
45 IPM Slow Return
123 IPM Fast Return

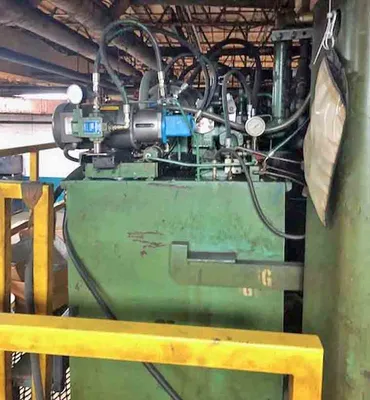

-Power Unit (Top Rear): 60 HP 460 / 3 / 60 Motor Driving Hyd. Unit

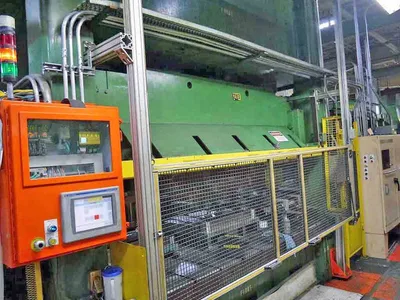

-Controls: Pushbutton Operation with stroke, Pressure and
Speed Control, Allen Bradley PLC added in 2000,

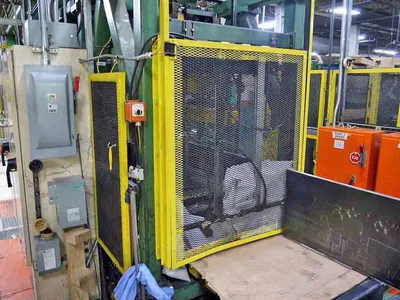

Light Curtains.
-Weight Approx.): 106,000 lbs.
-Overall Dimensions Approx: 13' L-R x 5' F-B x 26' H

-In Storage: Toledo, OH
