USED 1997 FUKUI VKL 84/1.750-19/9 6-HI, LH

YEAR: 1997
400 Ton Fukui Press Blanking Line

Coil Capacity: 72" x 0.090" x 70,000#
Material Thickness: 0.090" @ 72" Wide
0.125" @ 51" Wide

Consisting of the following:

-Pit Coil Car:

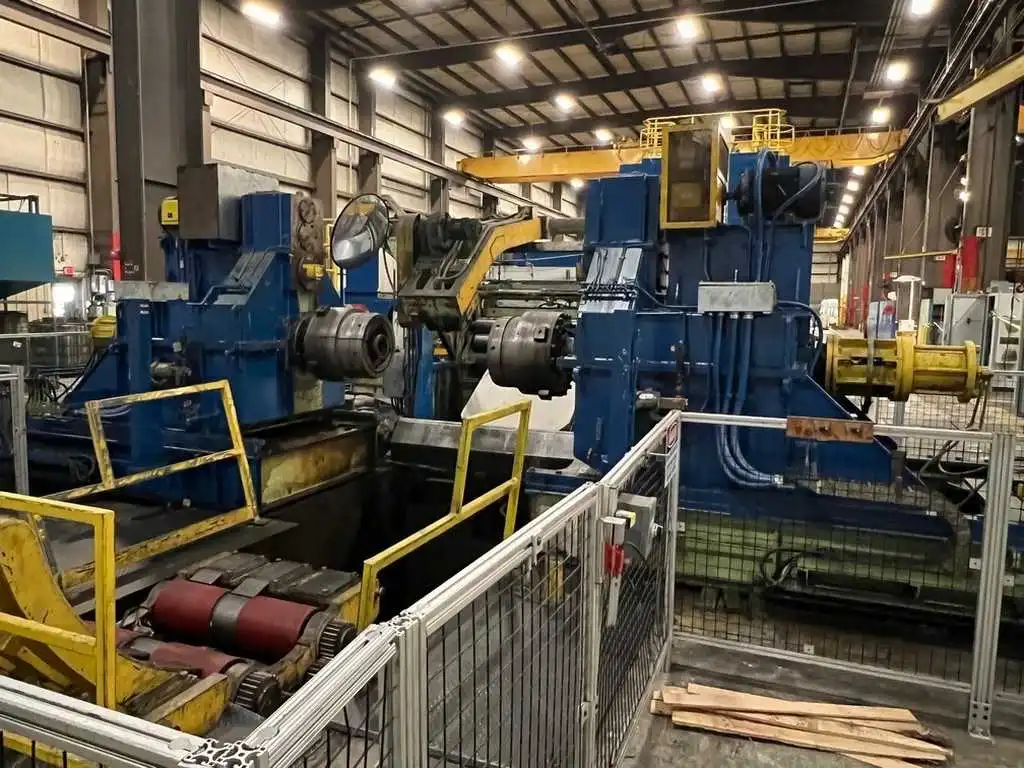

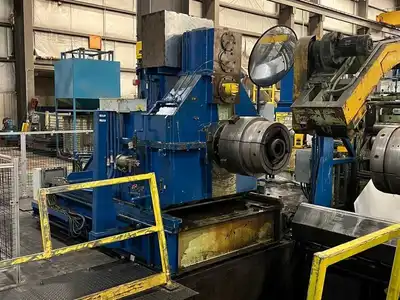

-Double Stub Uncoiler:
Weight Capacity: 70,000 Lbs.
Hydraulic Expansion
Expansion Range: 17.6" - 21.2"
Coil O.D. Capacity: 86"
Holddown Roll
15 HP DC Drive Motor
Sliding Base on Each Head

-Peeler/Pinch Roll Unit:

-Crop Shear:
Hydraulic Downcut Type

-Mashing Unit:

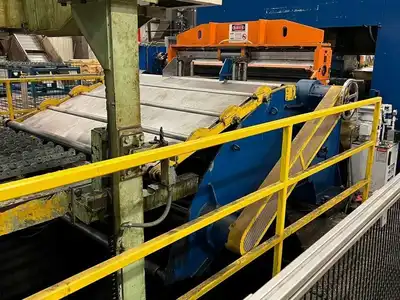

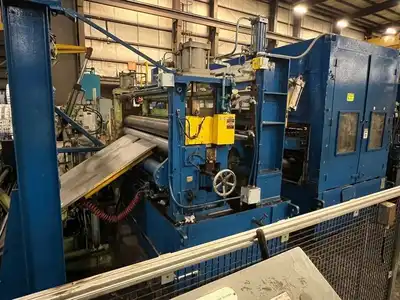

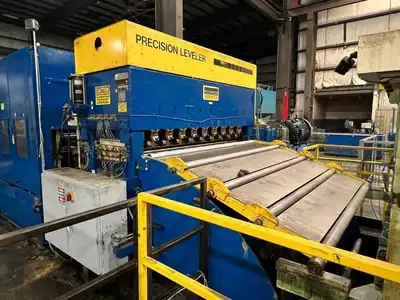

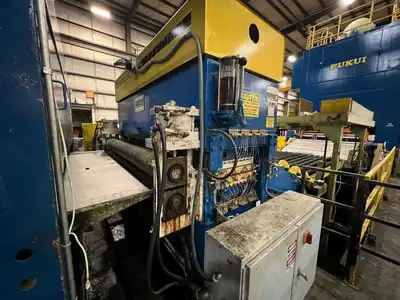

-Herr Voss Leveler - 6 HI
Model VKL 84/1.750-19/9 6-HI, LH
Capacity: 72" x 0.023" - 0.128" @ 60,000 PSI Yield
84" Face x 1.75" Dia. Work Rolls
19 Work Rolls
9 Flights of Motorized Backups
200 HP DC Motor, 1750 RPM
Total weight: Approx. 26,000 lbs.

-Looping Pit:

-Roll Feed Unit:

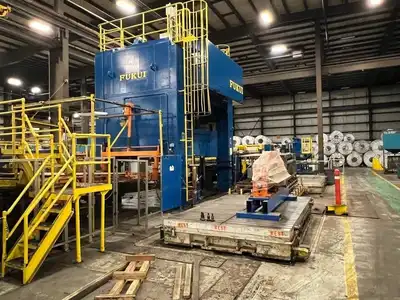

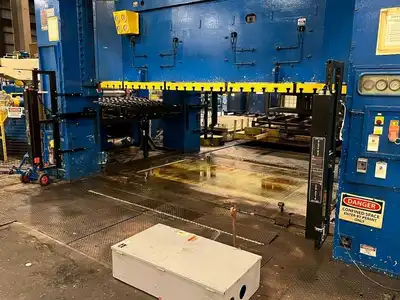

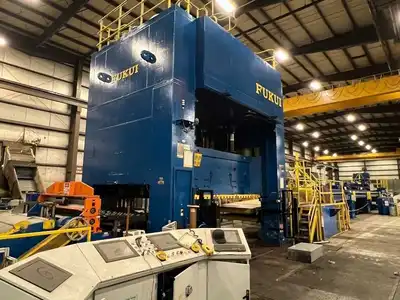

-Fukui SSDC Press:
400 Ton Capacity
15 - 60 SPM
9.8" Stroke
13.8" Slide Adjustment
Slide Area: 157" L-R, 98" F-B

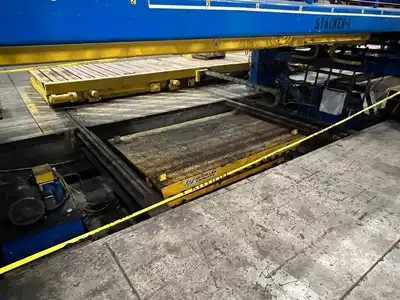

-Moving Bolster:

-Inspection Conveyor:

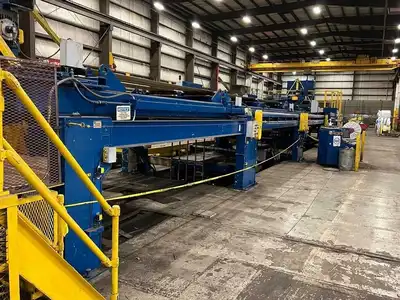

-Automatic Feed Co. Stackers:
Magnetic Bridge Conveyor
(2) - 35,000 lb. Stackers
Reject Stacker
Runout Conveyor

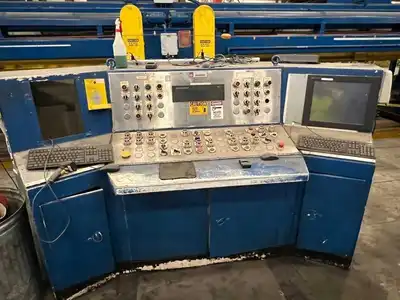

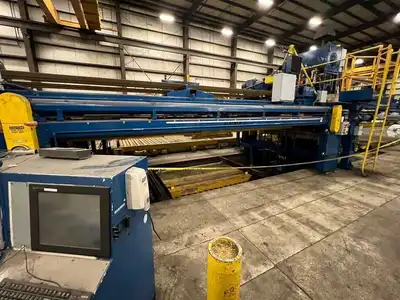

-Operators Control Panel:

-Line Direction: Left to Right

-Line is Installed
