Cauffiel Edging Line
-Coil Width: 2" - 10"
-Gauge Range: 0.064" - 0.250"
-Coil Weight: 10,000 lbs.
-Line Direction: Left to Right
-Operation: Coil to Strip
Consisting of the following:

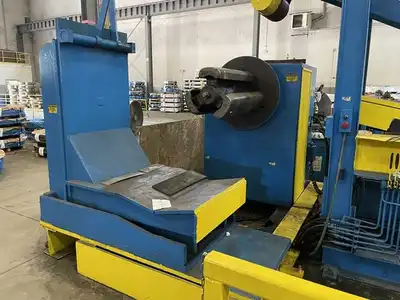

-Coil Lift:
10,000# Capacity
Lift only, no travel
30" Wide Deck
6" Bore x 24" Stroke Hydraulic Lift Cylinder
2 Coil Keepers
-Uncoiler:
10,000# Capacity
16" - 20" Expansion Range
Hydraulic Expansion
Air Brake
Hydraulic Threading Drive
Hydraulic Slide Base
Self-contained Hyd unit
Overall Size W/Coil Lift: 128" L x 98" W x 86" High

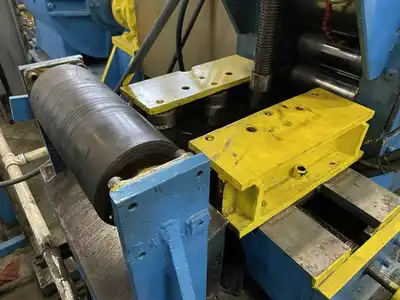

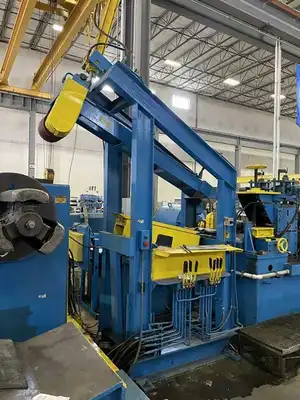

-Peeler / Holddown Unit:
14" W Peeler Blade
Hydraulic Cylinders for up/down, in/out movement
14" Face x 6" Dia. Rubber Coated Holddown Roll
Hydraulic Cylinder Raise/Lower
Overall Size: 165" L x 53" W x 93" High

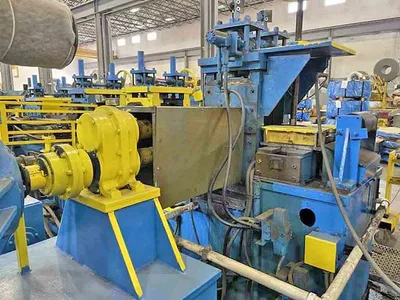

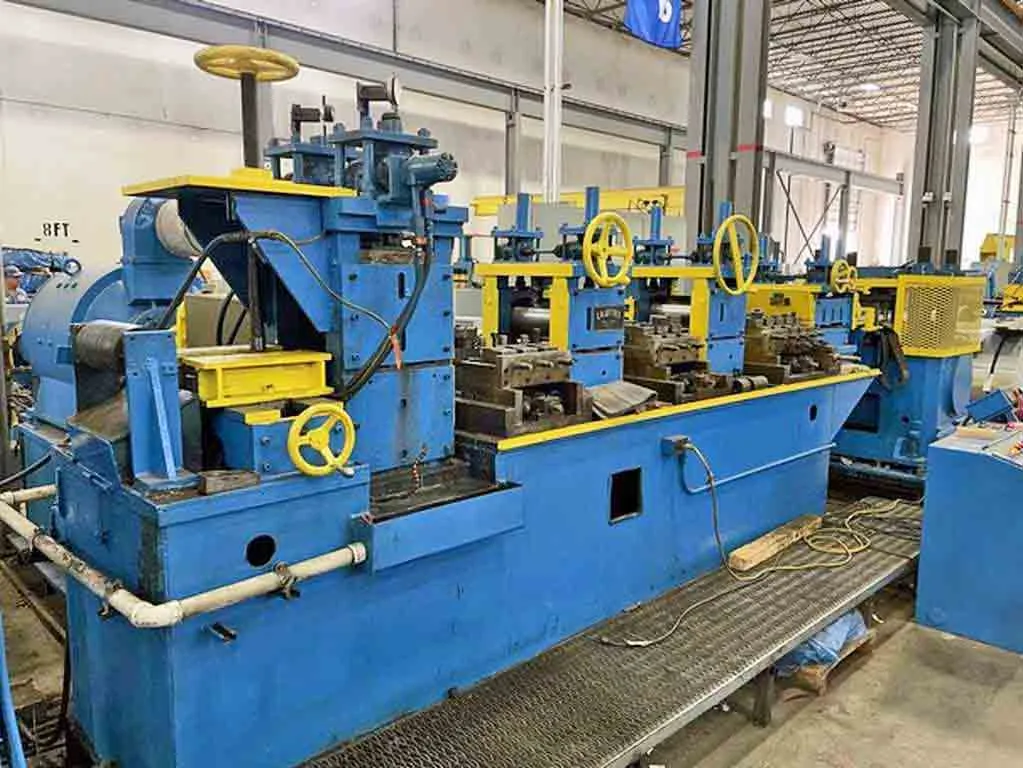

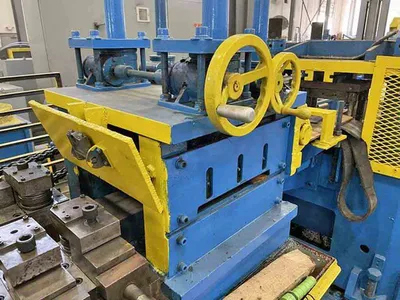

-Edging Unit:
Entry Passline Roll
Entry Edge Guides,
Manual Handwheel Adjustment
3 Roll set per bank
Manually positioned strip holddown screw

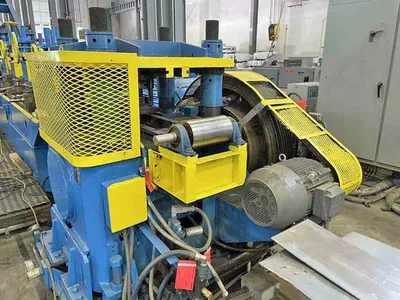

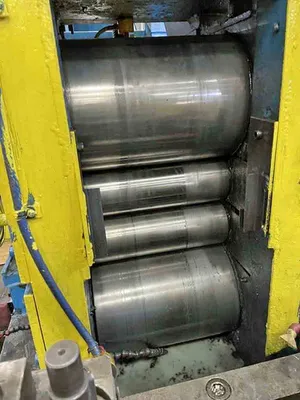

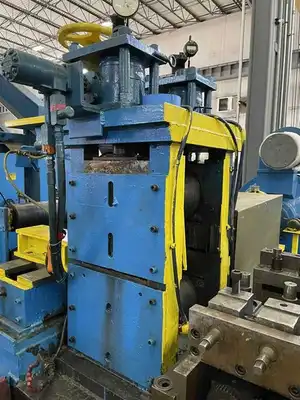

4 HI Rolling Mill:
4.5" Dia. Work Roll, 13" Face
10" Dia. Backup Roll, 13" Face
Hydraulic Motor Adjusted Screwdowns
200 HP DC Motor Driven, W/Blower
Coolant pump and tank in the base
Free standing cooling unit

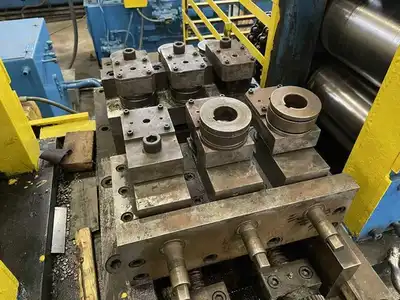

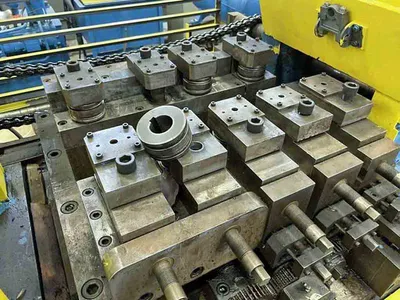

Edging Die Set #1
3 Roll set per bank
"Missing the top die retainer block on 3 units"

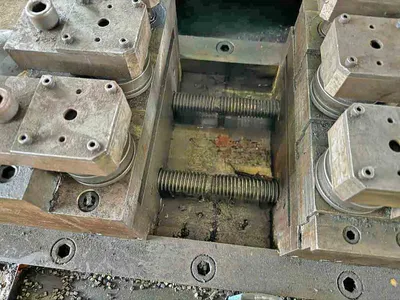

Single point adjustment for both banks of dies
Operators side each die is independently adjustable

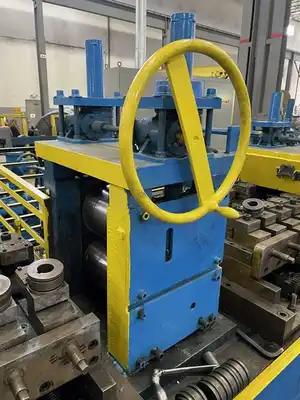

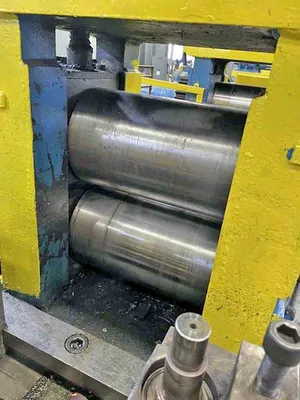

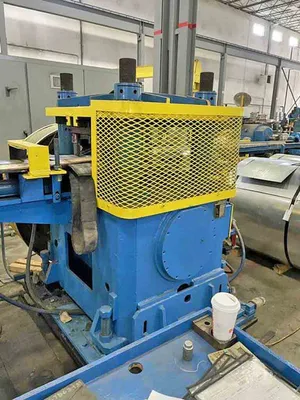

2 HI Mill #1
8" Dia. Work Roll,
Manual screw down Adjustment
Hydraulic Motor Driven, bottom roll

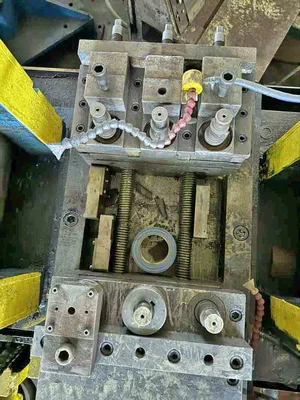

Edging Die Set #2
3 Roll set per bank
Single point adjustment for both banks of dies
Operators side each die is independently adjustable
2 HI Mill #2
8" Dia. Work Roll,
Manual screw down Adjustment
Hydraulic Motor Driven, bottom roll

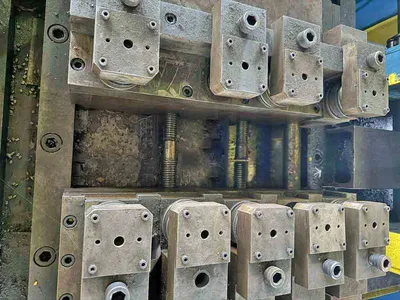

Decambering Section
Operators side bank; 5 sets of dies
Drive side bank; 4 sets of dies
7 total dies make up the decambering section
Dies #8 and #9 are set up as an edging section and are
independently adjustable
Single point adjustment for the entire bank in and out

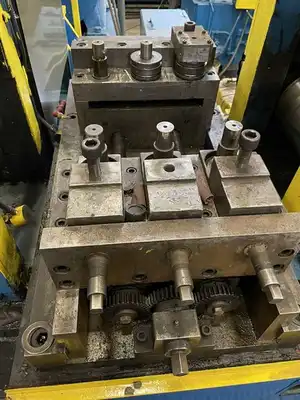

Straightener Unit
4" Dia. Rolls, 3 over 2
Bottom Rolls chain driven from 2 HI Mill Stand
Exit Passline Roll
Overall Size - Edging Mill: 192" L x 62" Wide x 95" High
4 Hi Mill Stand Drive: 110" L x 45" W x 86" High
-4 Post Cutoff - Proma:
60 Ton Capacity
Model 60 CP-2
13" Max. Shut Height
4" Stroke
25 Cuts/Min.
11.5" Between Posts
12" Shear Blade w/Hydraulic Cylinder Die return
15 HP AC Motor, 1175 RPM, 230/460 V
Exit Passline Roll
Overall Size: 103" L x 72" W x 78" High

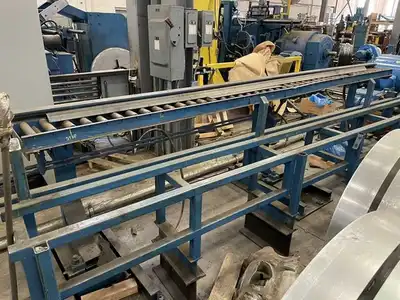

-Runout Conveyor Section: 15' long
Hydraulic Cylinder dump
-Stacker Table: 15' Long

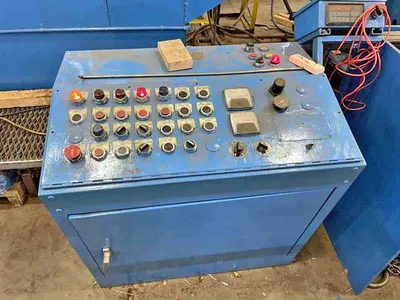

-Main Operators Control Panel:
Overall Size: 46" L x 25" W x 43" High
-Hydraulic Power Units:

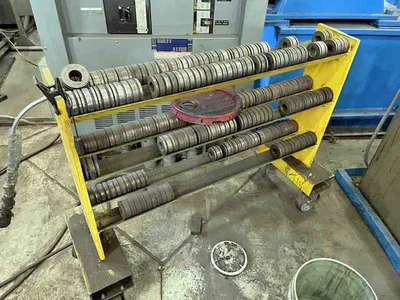

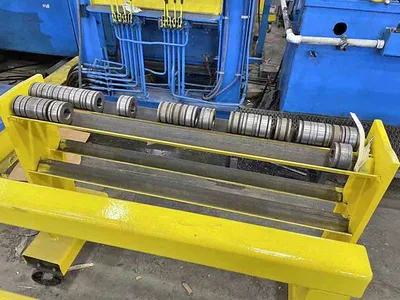

-Spare Mill Rolls:
-Edging Dies:
-Line is removed and in storage: Toledo, OH.
