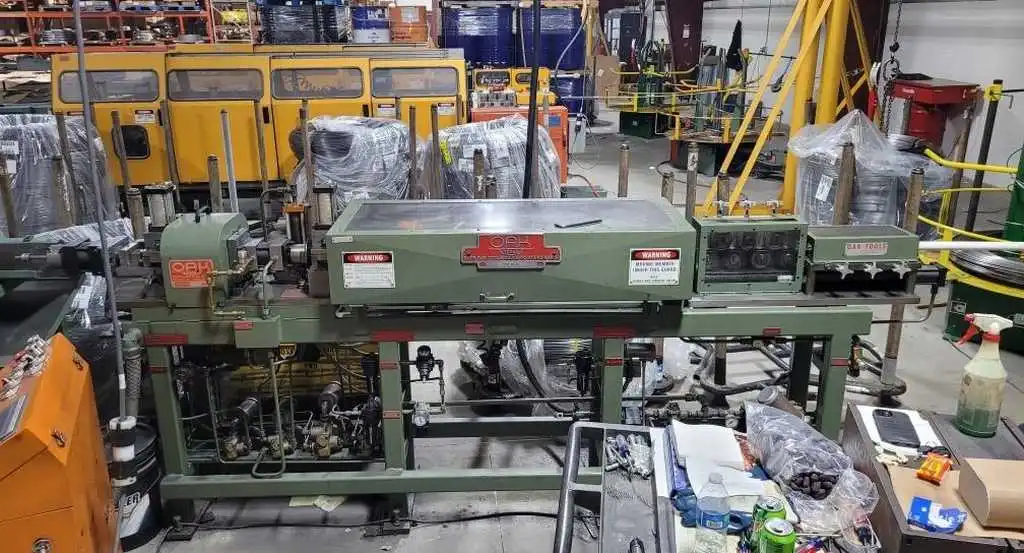

USED 1988 OAK STCOS-M5-868-RH

YEAR: 1988
Model: STCOS-M5-868-RH

-Tube O.D. Capacity: 0.187" (4.75mm) - 1.125" (28.57mm)
-Wall Thickness: 0.010" (0.25mm) - 0.060" (1.52mm)

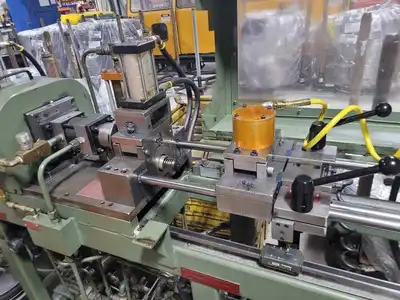

-Two Plane Straightener
-Single Hitch Feed - Model STHF-M5-147

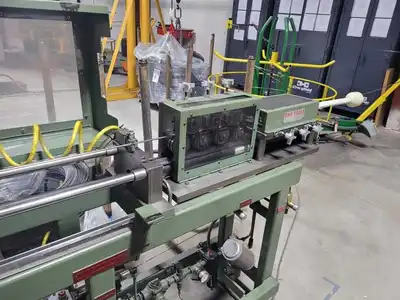

-Powered Tube Puller

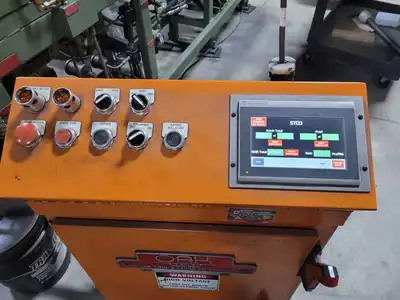

-Brand New Control Unit
-Fully Rebuilt in 2017 with close to $20,000. in Oak Factory Parts
-Estimated Shipping Weight: 4,200 lbs.

Includes:

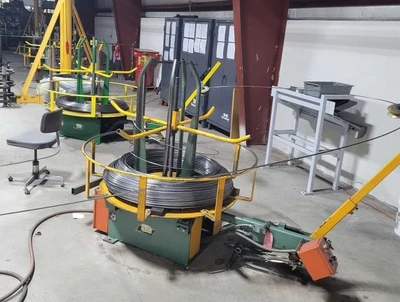

(1) - Accra-Wire Tubing Uncoiler

Model: D-30T

-Capacity: 3,000 lbs.
-Speed RPM: 0 - 46
-Table Size/Spool O.D.: 45 / 50"
-Tubing Size: 0.050" - 0.500" Dia.
-Voltage: 115/230, 1 PH, 50-60 HZ
-Dimensions (L x W): 90" x 45"

-Regenerative DC drive and accumulation provide balanced tension control
-Uncoiler will not change or distort tubing cast
-Speed, acceleration and deceleration are electronically controlled
-UHMW Pulleys provide a high-wear, non-marking surface for guiding tubing
-Tension is adjustable to handle a variety of material sizes and shapes

-Video available upon request.

-In Storage: Toledo, OH
