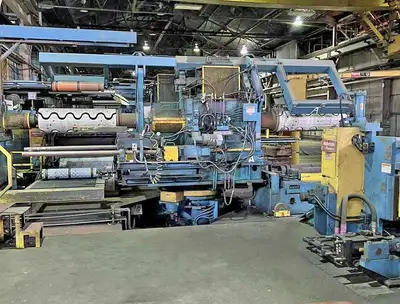

52" x 8.00" x 35,000# Stamco Dbl-Loop Slitting Line

Stamco Dbl-Loop Slitting Line

Width: 52"
Weight: 35,000 lbs.
ID Range: 16" - 20" - 24"
Gauges Processed: 0.010" - 0.100"
Line Direction: Right to Left
Line Speed: 500 and 1200 FPM

Consisting of the following:

-Entry Coil Car:
L Type
Self-Contained Hydraulic Power Unit
Hydraulic Lift and Travel

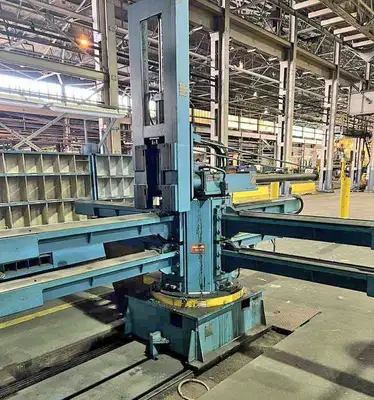

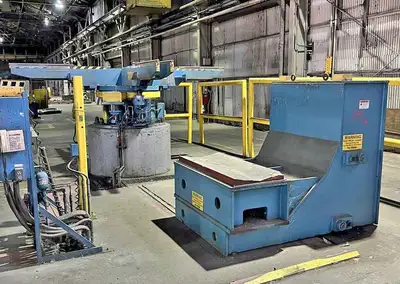

-4 Arm Entry Turnstile:
C-Hook Type Arms
Power Rotation

-Coil Prep Station:
Powered Pull Rolls
Mechanical Crop Shear
Scrap Conveyor

-Scissor Lift Coil Car:
Powered Roller Top
Self-Contained Hydraulic Power Unit
Hydraulic Lift & Travel

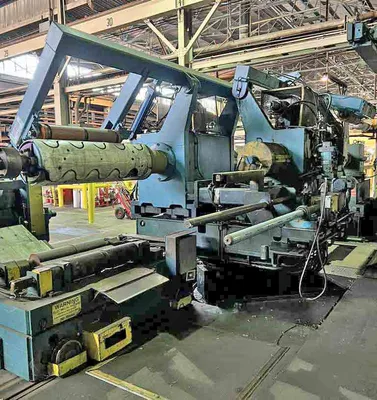

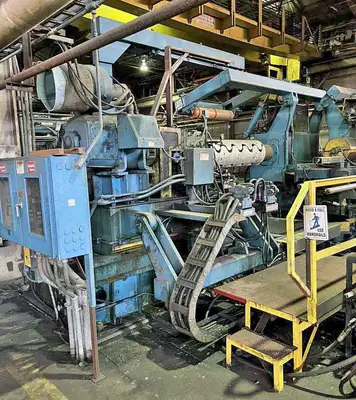

-Turret Type Uncoiler:
Hydraulic Expansion
Pumpkin Tooth Mandrels
Overarm Holddown Roll
DC Motor Drive & Brake
Slide Base

-Entry Unit:
Entry Pinch Roll
Traveling Design - delivers metal over
Pit to Slitter Head
Crop Shear

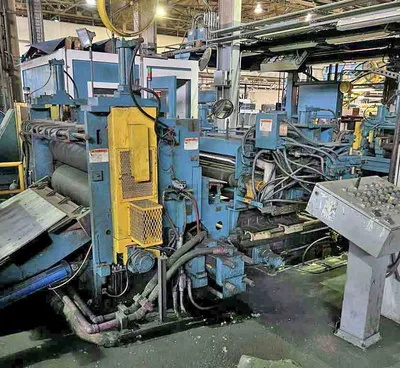

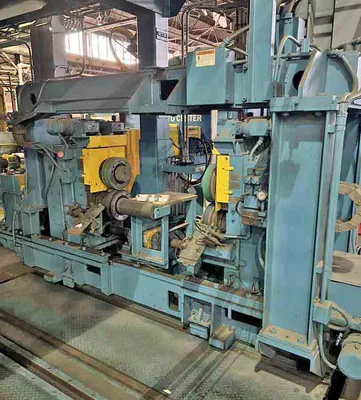

-Injector Slitter Head:
Driven Entry Pinch Roll Stand

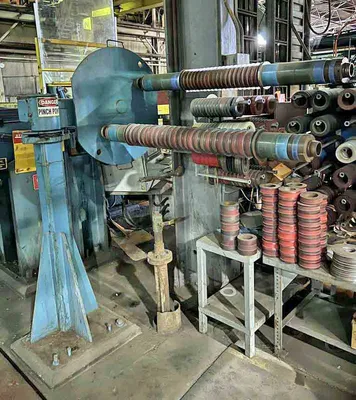

Tooling Change by 4 Arm Turret
(1) Slitter Head
(1) Double-Stub Edge Trimmer
Hydraulic Tooling Lock Up
200 HP DC Motor Drive

-Scrap Baller:

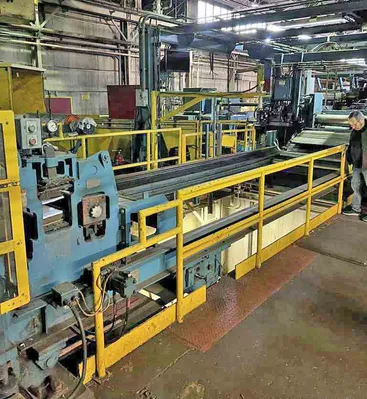

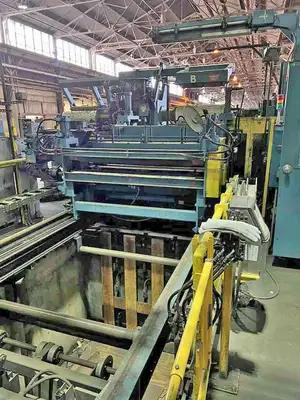

-Pit Carry Over Unit:
Cascade Rolls Entry & Exit
Pad Tension Unit Travels

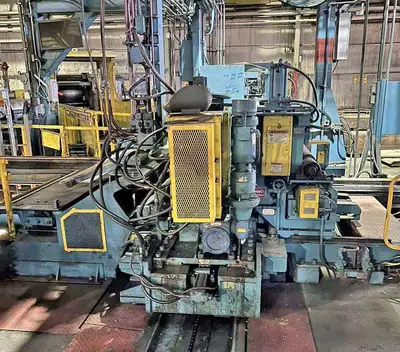

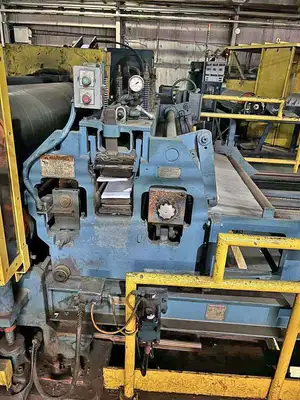

-Combination Pad & Roll Type Tension Stand:
Pneumatic Air Bag Type Pad Tension
DC Motor Drive / Brake for Rolls
16" Diameter Urethane Covered Rolls
Hydraulic Crop Shear

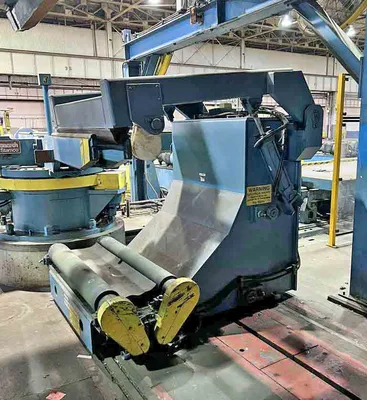

-Free Standing Overarm Separator:
Entry Deflector Roll
Threading Table

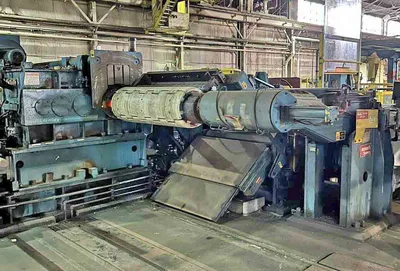

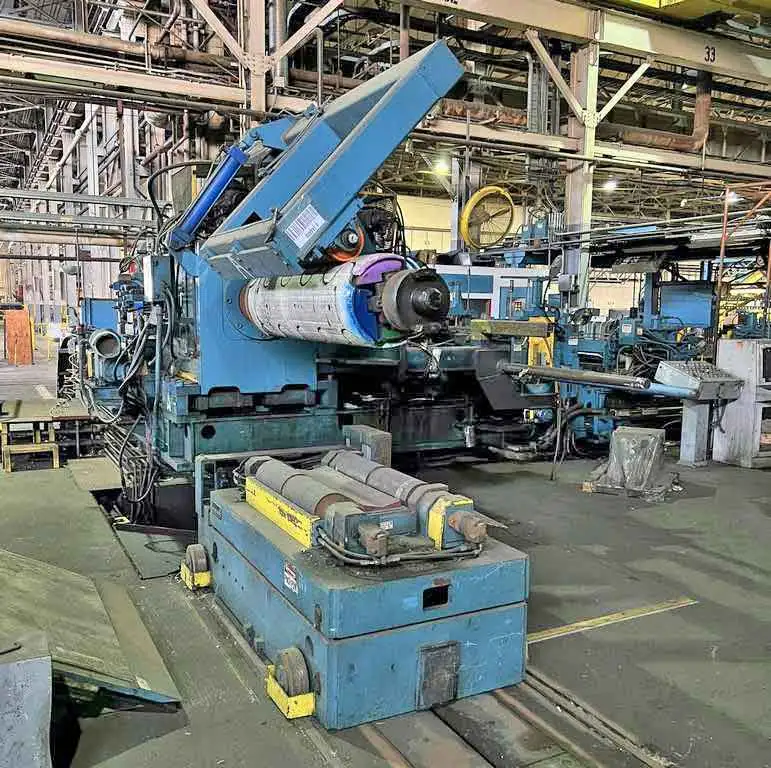

-Recoiler:
16" Dia. Drum
20" & 24" Bolt-On Pads
Hydraulic Gripper & Expansion
Hydraulic Pushoff
200 HP DC Motor Drive, 500 V
2 Speed Reducer
Outboard Bearing Support

-Exit Coil Car:
L Type
Powered Rollers on Bed
Self-Contained Hydraulic Power Unit
Hydraulic Lift & Travel
Overarm Holddown Arm

-4 Arm Exit Turnstile:
C-Hook Type Arms
Power Rotation

-Delivery Coil Car:
L Type
Self-Contained Hydraulic Power Unit
Hydraulic Lift and Travel

-Line is Installed
