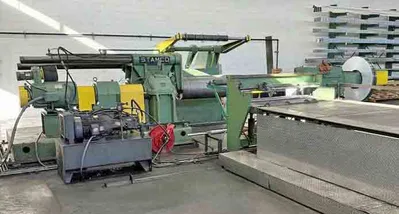

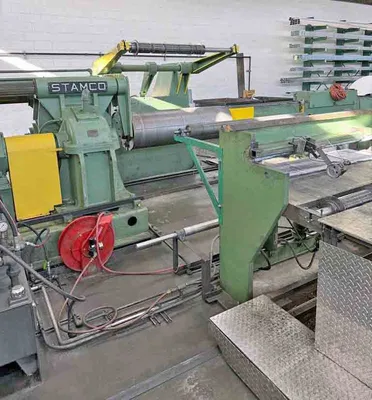

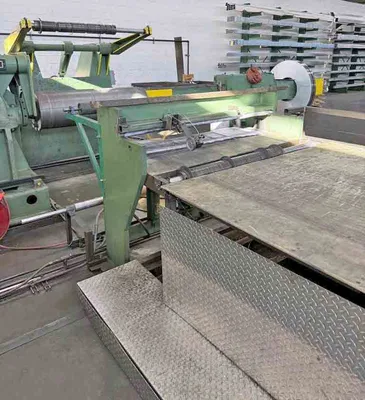

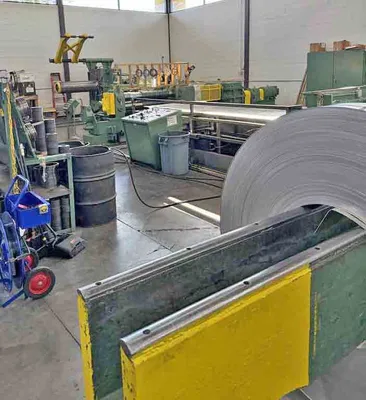

54" x 6.50" x 20,000# Stamco Slitting Line

Weight Capacity: 20,000 lbs.
Width: 54"
Coil I.D. Entry: 16" - 20"
Coil I.D. Exit: 20"
Coil O.D.: 72"
Line Direction: Left to Right
Line Speed: 250/300 FPM (Constant)

Consisting of the following:

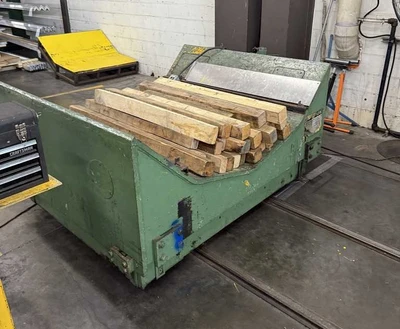

-Entry Coil Car: Paxson
Hydraulic Motorized Screw Jack Lift
Hydraulic Motorized Travel
Removable Riser for Small Coil O.D.'s
Self-Contained Hydraulic Power Unit
Hand Pendant Control

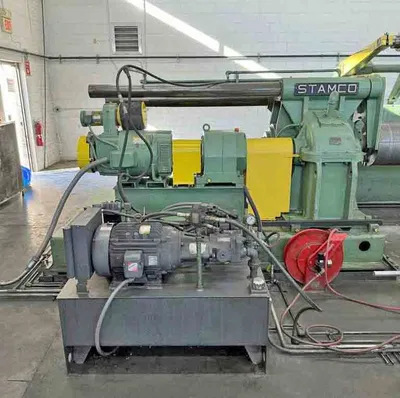

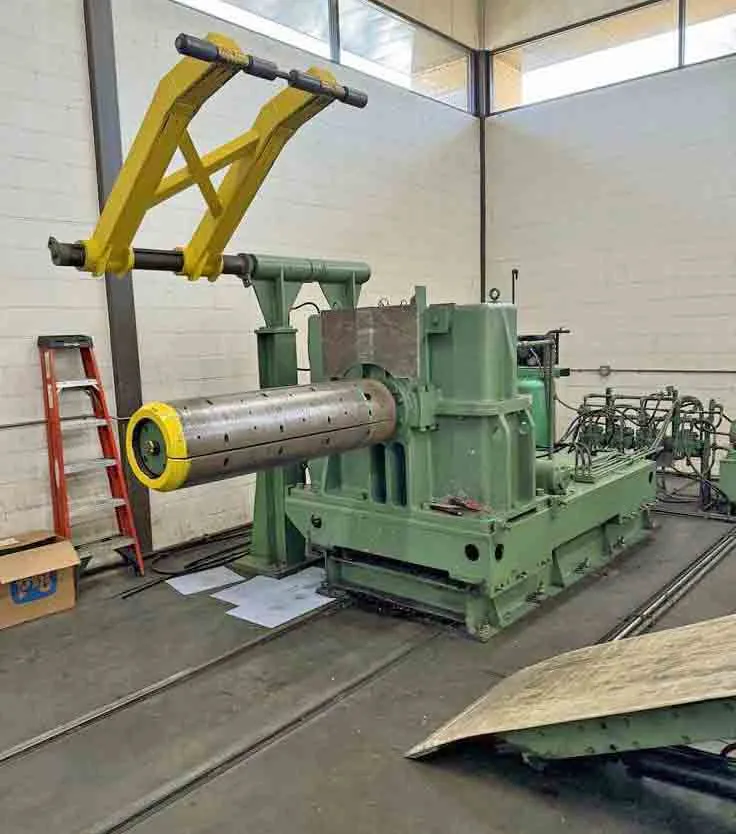

-Mandrel Uncoiler:
56" Face Mandrel
Hydraulic Expansion
Slide Base
(2) Fawick Water Cooled Brakes
1.5 HP AC Gearmotor Feedup Drive, 220/440 V
Stamco Integral Reducer w/5.4:1 ratio
Lube Pump
Passline: 52" from Floor to center of Mandrel
Shipping Weight: 17,500#

-Free Standing Overarm Holddown Roll:

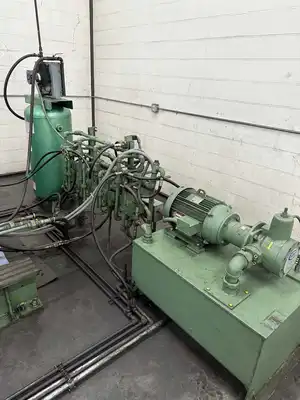

-Entry Hydraulic Power Unit:
20 HP Baldor AC Motor, 1760 RPM, 230/460 V
60 Gallon Tank
Valve Stand

-Peeler Table:
Hydraulic Lift and Extend
60" Wide Passline Roll

-Slitter Entry Unit:
Entry Passline Roll
Adjustable Roller Side Guides
Driven Pinch Rolls

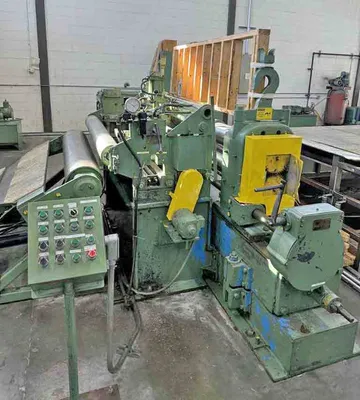

-(1) Removable Head Slitter:
6.50" Dia. x 60" Face Arbors
Eccentric Arbor Adjustment

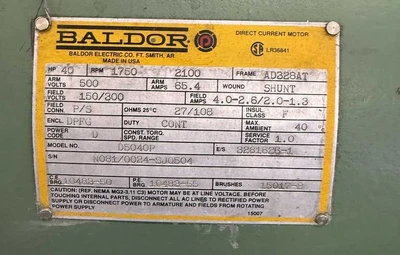

40 HP Baldor DC Motor, 1750/2100 RPM, 500 V
Stamco Reducer/Pinion Box 3.2:1 Ratio
Hansen Secondary Reducer 8.3:1 Ratio

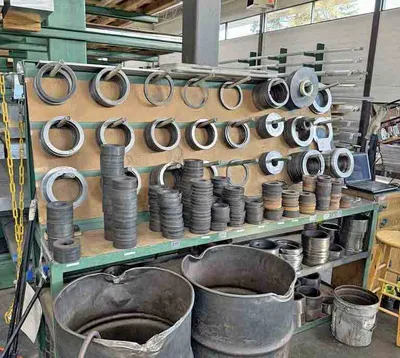

Slitter Tooling

-Drag Board Tension Stand:
Entry Separator Tooling Bar
Exit Passline Roll
(3) Air Cylinder Tension Control

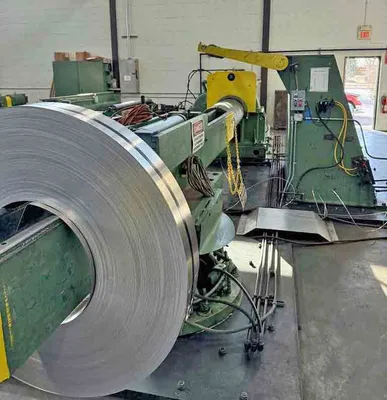

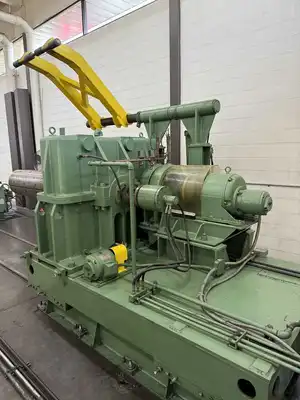

-Recoiler:
20" Dia. x 60" Face Drum
Manual Clamp and Expansion
Hydraulic Pushoff

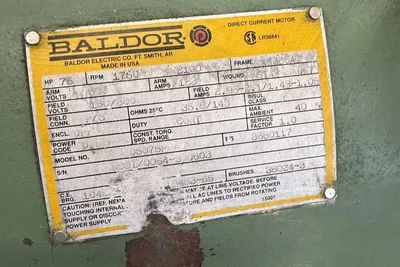

75 HP Baldor DC Motor, 1750/2100 RPM, 500 V, w/Blower
Stamco Integral Reducer w/3.697:1 Ratio
Hansen Secondary Reducer w/10:1 Ratio
Shipping Weight: 17,000#

-Overarm Separator:
Free Standing

-Paper Unwinder:

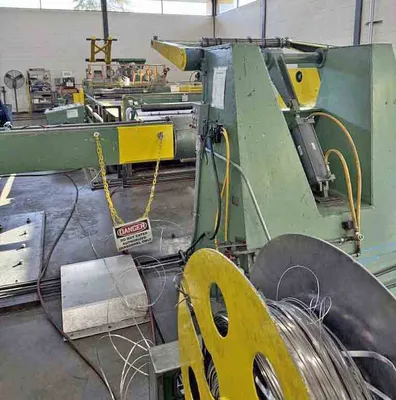

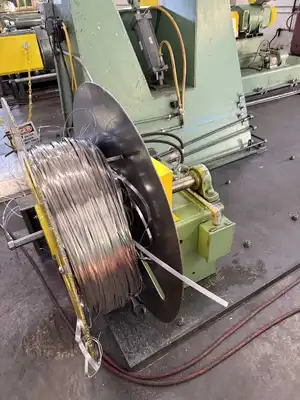

-Scrap Winder:
Hydraulic Motor Drive
Level Wind
Manual Ball Removal

-Exit Hydraulic Power Unit:

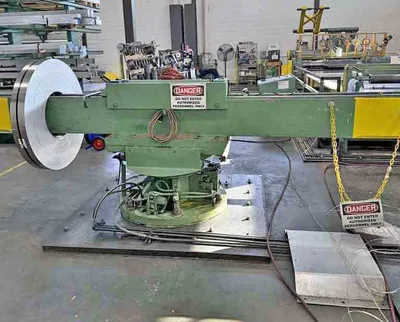

-2 Arm Exit Turnstile:
C-Hook Type Arms
6.5" Wide x 12" High Slot in Arm
67" Long Arms
18" Minimum ID
47" Floor to Top of Arm
Hydraulic Pushoff
Power Rotation
Overall Size: 184" L x 48" W x 54" High
Shipping Weight: 11,000#

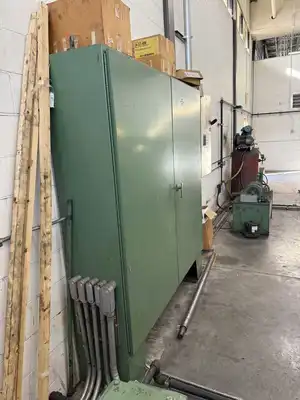

-Operator Controls:

-Removed and in storage: Toledo, OH.
