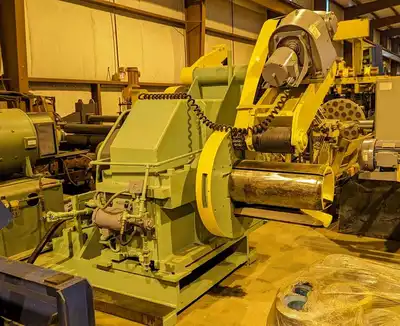

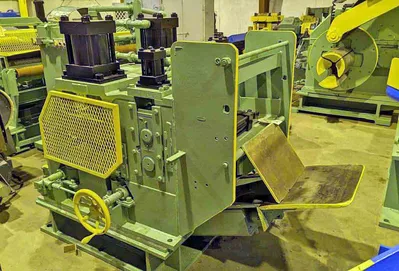

24" x 5.00" x 20,000# Stamco / Nash Slitting Line

Consisting of:

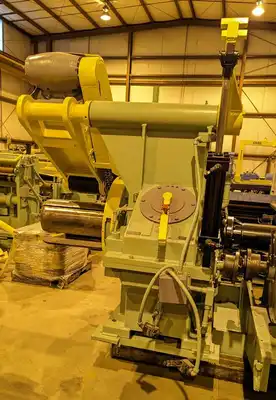

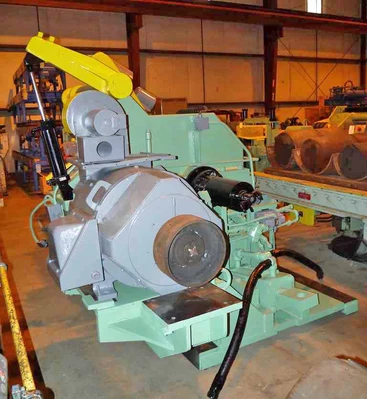

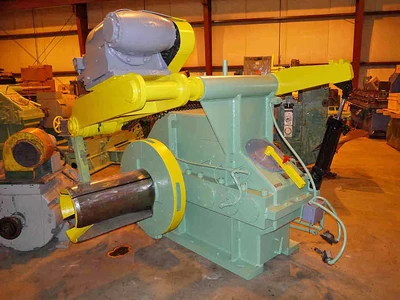

-Uncoiler:
Hydraulic Expansion
16" - 20" Coil I.D. range
4 Segment Mandrel
28" Mandrel Face width
Powered Holddown Roll
AC Motor thru Reducer
60" Coil O.D. Max.
Less Sliding Base
2 Speed Gearbox
60 HP GE DC Motor, 500/2000 rpm, 240 v

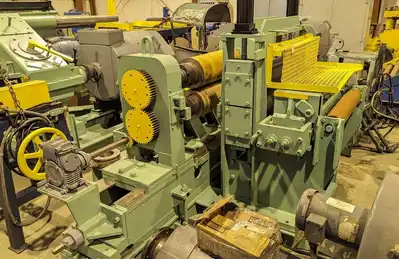

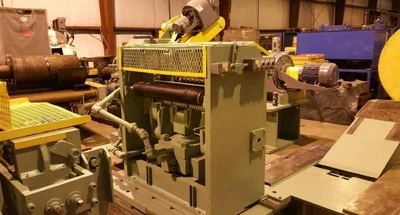

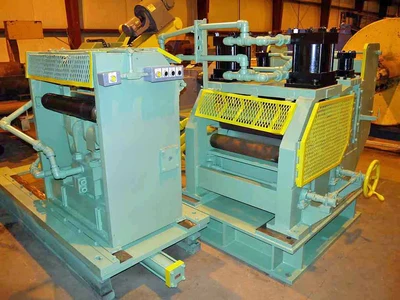

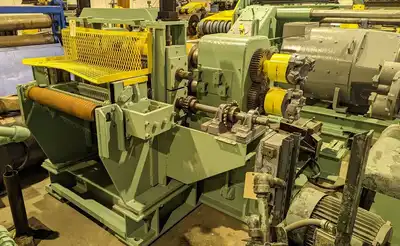

-Entry Coil Flattener:
Entry Peeler Table
Entry Driven Pinch Rolls
7.5" dia. x 30" face rolls
Top Roll rubber covered
Bottom Roll driven
5 Work Rolls, 2 over 3 Rolls
5" dia. x 30" face rolls
Top rolls driven
7.5 HP AC Motor drive, 1760 rpm, 460 v

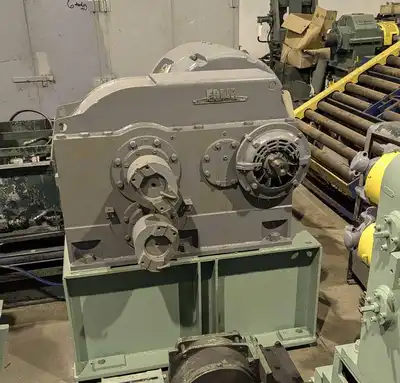

Falk reducer w/45.65:1 ratio
Threading speed: 50 fpm

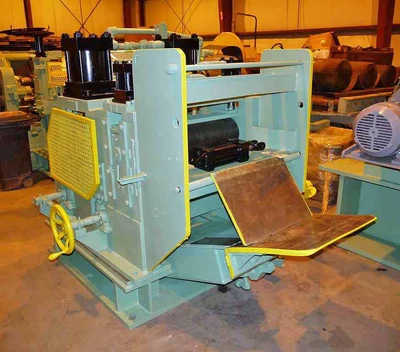

-Entry Crop Shear:
Hydraulic upcut type
Entry and Exit passline rolls
Blade size: 30" x 3" x 1"
Traversing base by hyd. cylinder
Overall size: 42" L x 25" W x 60" High

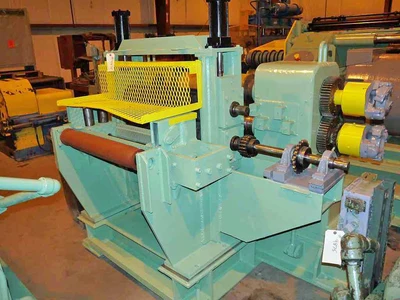

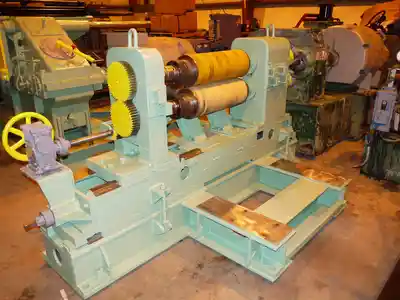

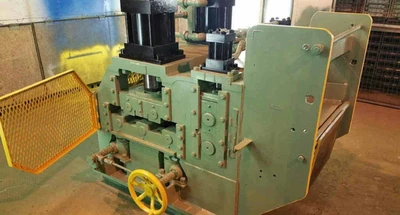

-Driven Pinch Rolls:
8" Dia. x 30" face width Rolls, rubber covered
Bottom Roll driven
Air cylinder loaded
Entry Side Guides, manual adjustment
Entry Passline Roll
Passline: 31"
15 HP AC motor
Overall size: 76" L x 36" W x 59" High

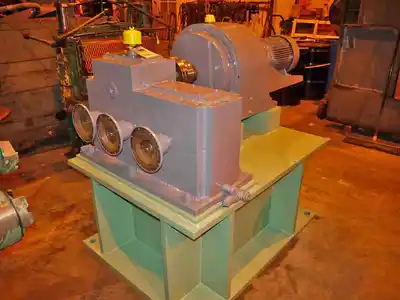

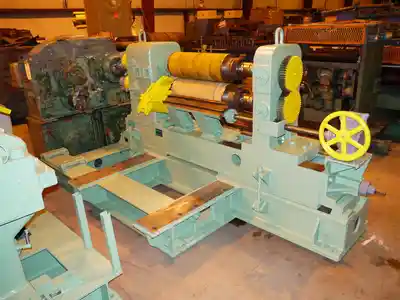

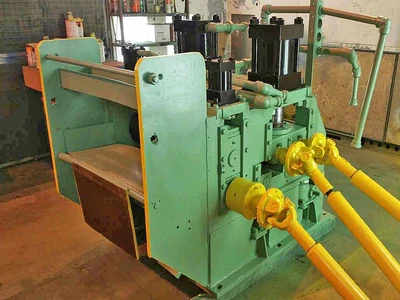

-Slitter Head:
Removable Head
5" dia. x 30" face Arbors
Double eccentric arbor adjustment

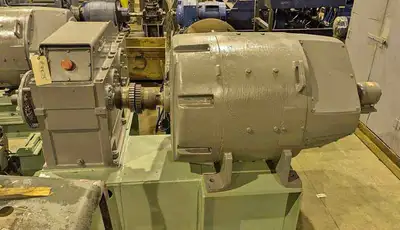

125 HP GE DC Motor, 650/1900 rpm, 240 v
Falk reducer w/9.212:1 ratio, rated at 125 HP
Less (2) Universal Drive Shafts
Less Slitter Tooling

-Scrap Winder:
Production Machinery
Hydraulic motor driven
Oscillate wind
Approx. 17" W x 30" dia. scrap ball capacity
Manual dump
Self-contained Hyd. Power unit
20 HP AC motor, 1750 rpm, 230/460 v
Vickers pump

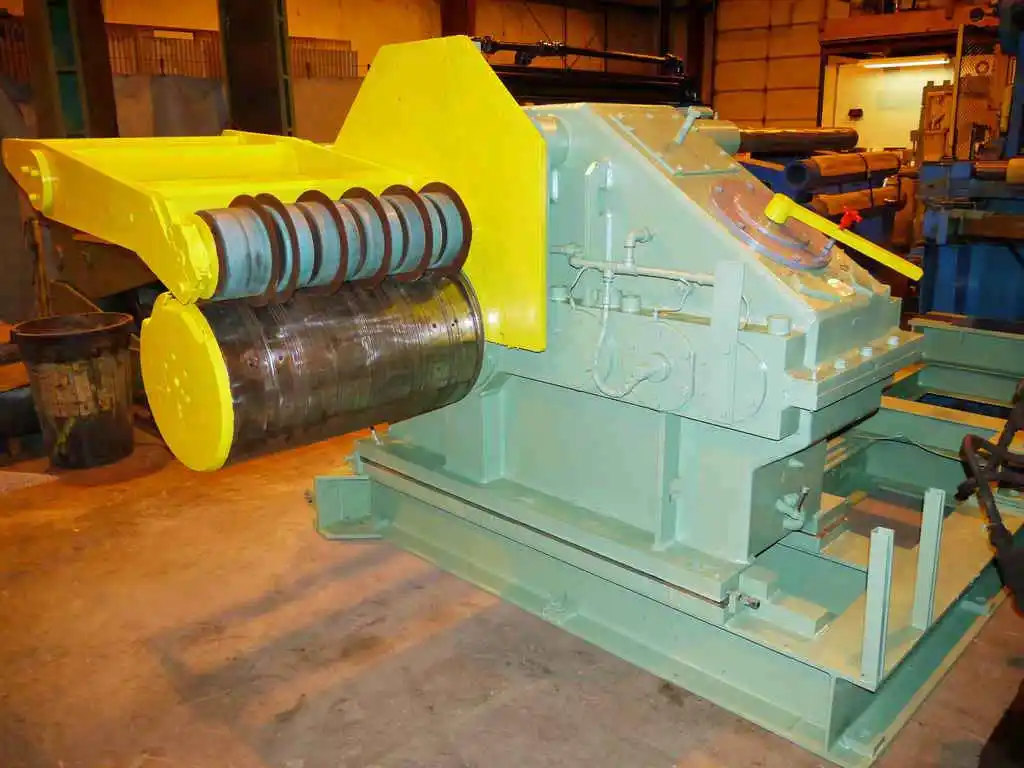

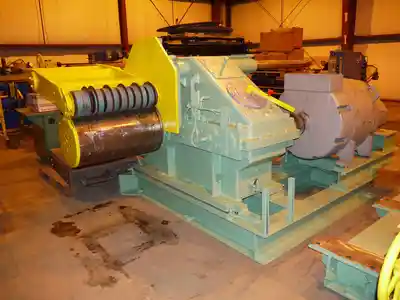

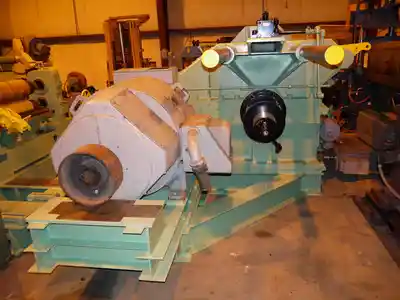

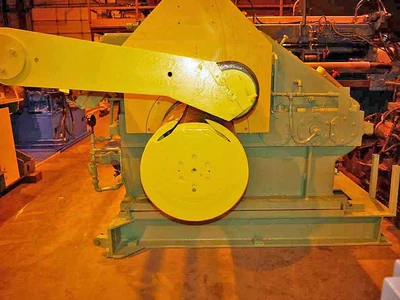

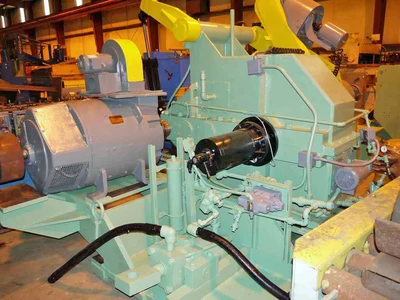

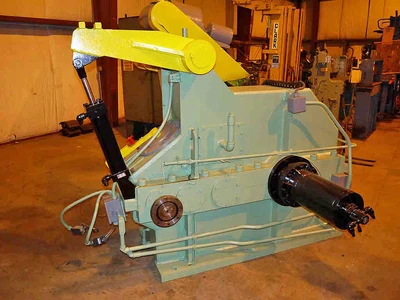

-Recoiler:
20" dia. x 32" Face Drum
Hydraulic Clamp and Expansion
Dual Direction Gripper
Hydraulic Pushoff
Overarm Separator (Less Cylinder)
60" Coil O.D. Max.
2 Speed Gearbox w/8.5:1 and 21.3:1 ratios
75 HP GE DC Motor, 300/1800 rpm, 240 v
Additional Drums included: 12", 14", 16" and 18" I.D.

-Hydraulic power unit:
20 HP AC motor, 1750 rpm, 230/460 v
Vickers pump
Overall size: 87" L x 42" W x 60" High

-Less Electrics

-Line Direction: Right to Left

-Removed and in Storage: Toledo, OH.
