YEAR: 2010

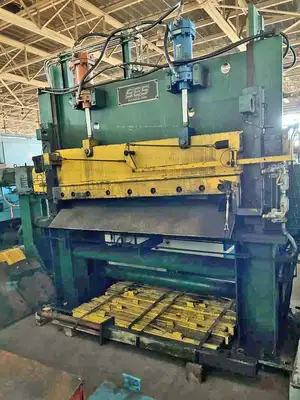

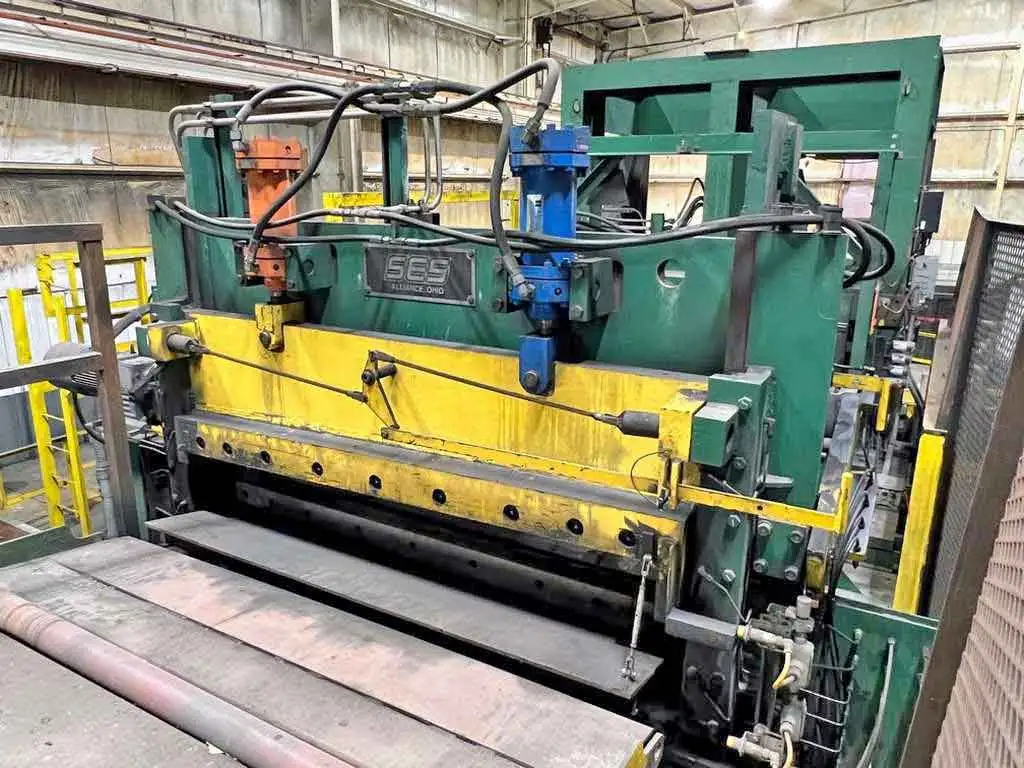

SES Crop Shear
-Strip Width: 66"
-Material Thickness: 0.080" @ 80,000 PSI
0.100" @ 50,000 PSI
-Hydraulic Operation
(2) - 5" Bore x 10.5" Stroke Lynair Mill Duty Cylinders
-72" Long Blade

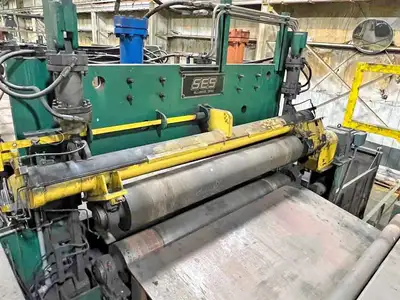

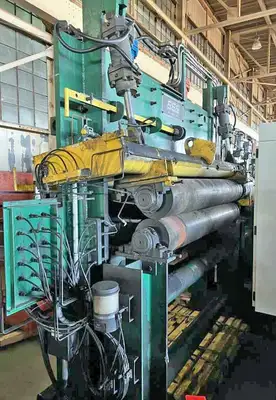

-Entry 10" Dia. x 72" Face Driven Pinch Rolls
Top Roll Actuated via (2) - 4" Bore x 7" Stroke Cylinders

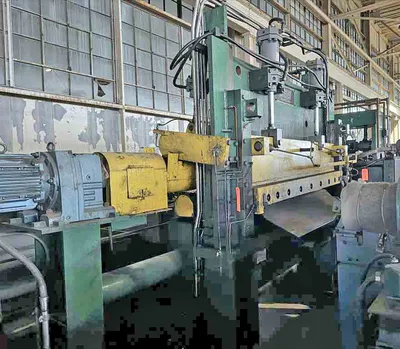

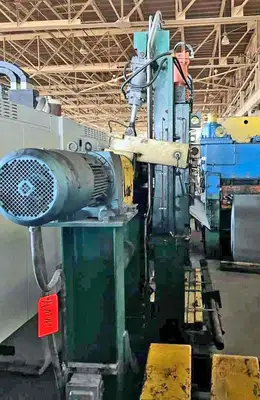

10 HP Gearmotor Drive, 230/460 V
-Passline: 56"
-Line Direction: Right to left
-Approx. Overall Size: 180" L x 48" W x 121" High
15,000 lbs.
-In Storage: Toledo, OH.
