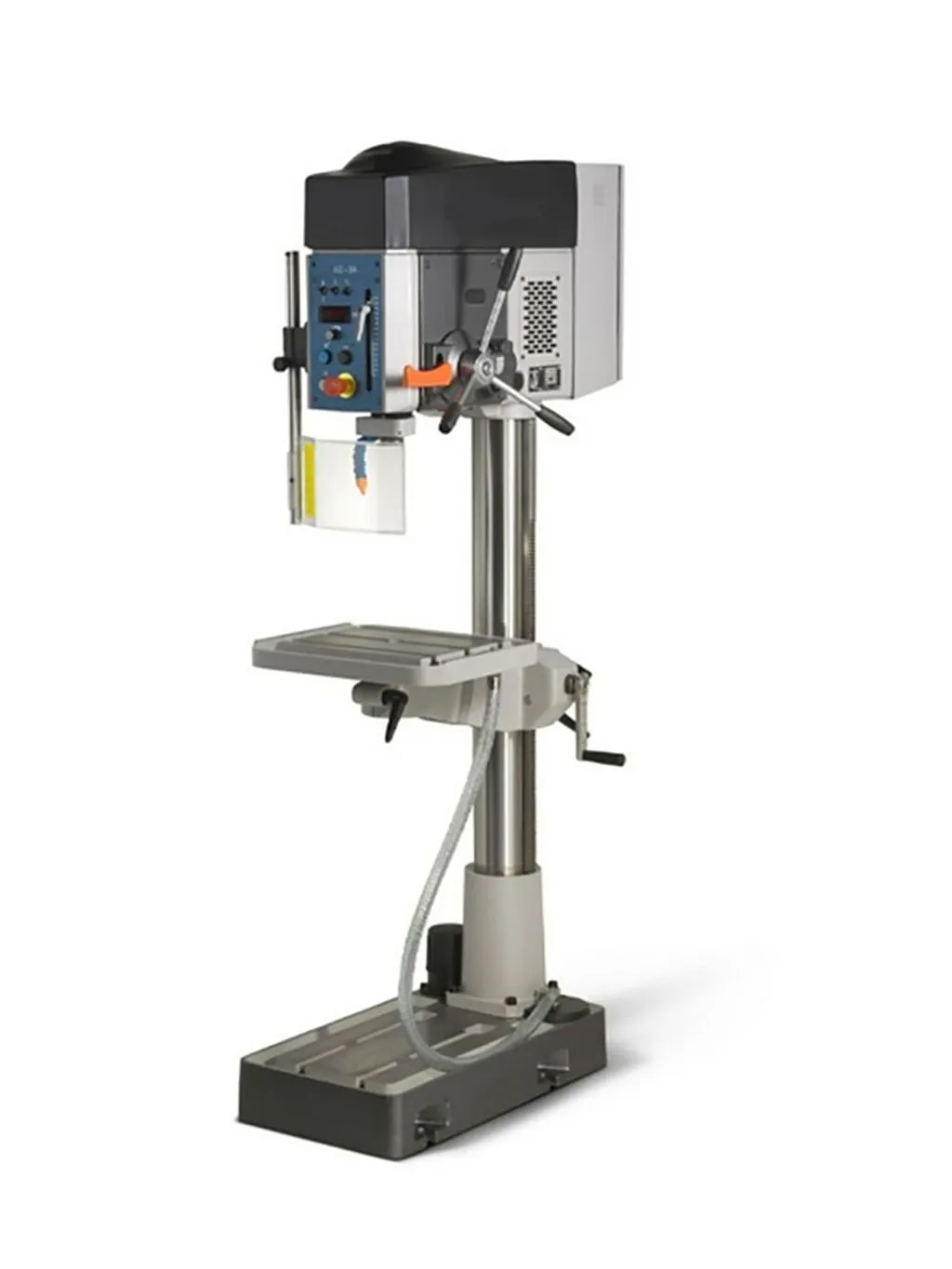

NEW 2025 CLAUSING AZ40
Overview
Clausing Iberdrill 27.56” Floor Drill Press Variable Speed Belt Drive Adjustable Work Table and Base, 100 – 2000 RPM by electronic inverter, 2.95” diameter quill, 4MT taper spindle, mechanical clutch quill feed, 5.5 hp spindle motor, 1.57” drill capacity steel, 230/460 volt 3 Phase voltage
Specs
Machine Style.......... Floor Drill W/Adjustable Table
Drive Type.......... Electronic Inverter Drive
Number of Speed Steps.......... Infinite
Spindle Speeds (RPM).......... 100 – 2000
Column to Spindle Center (in).......... 13.78
Spindle Nose.......... 4MT
Spindle Travel (in).......... 7.09
Quill Feed.......... Mechanical Clutch
3 Feed Range (in/rev).......... 0.0039, 0.0079, 0.0118
Spindle to Work Surface Min/Max. (in).......... 1.97 / 28.5
Column Diameter (in).......... 5.91
Adjustable Table Surface (in).......... 18.9 x 22.05
Work Table T-Slots (in).......... 1/2
Base Size (in).......... 31.5 x 18.8
Drill Capacity with Manual Feed (in).......... 1.34
E-Stop Switch.......... Yes
Voltage.......... 230 or 460
Phase.......... Three
Motor Horsepower.......... 5.5
Machine Weight (lbs.).......... 1,014
Machine Dimensions (WxDxH in).......... 20 x 38 x 76.8
Shipping Weight (lbs.).......... 1,124
Shipping Dimensions ships laying down (LxWxD in).......... 92 x 24 x 43.3
