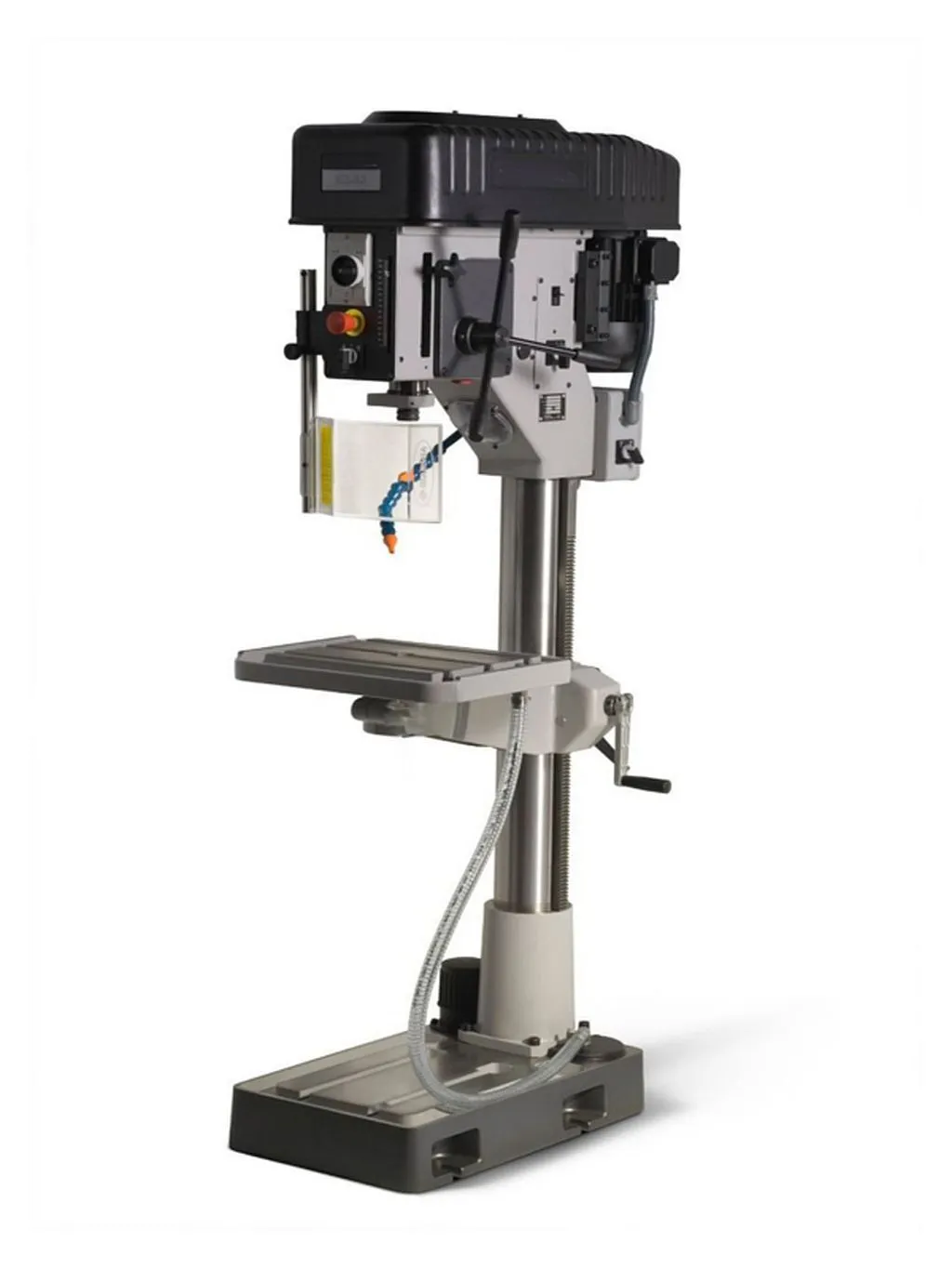

Clausing Iberdrill 23.62” Floor Drill Press Step Pulley Belt Drive Adjustable Work Table and Base, 170 – 2070 RPM 5 step pulley, 2.44” diameter quill, 3MT taper spindle, manual quill feed, 1.8 hp 2 speed spindle motor, 1.26” drill capacity steel, 230/460 volt 3 Phase voltage
| Swing | 23.62" | 599.95 mm |
| Capacity (Mild Steel) | 1.26" | 32.004 mm |
| Capacity (Cast Iron) | 1.38" | 35.052 mm |
| Power | 1.8 hp | 1.3 kW |
| RPM | 2,070 RPM | 2,070 RPM |
| Dimensions | 20 x 32 x 76.8 | 20 x 32 x 76.8 |
| Weight | 573 lbs. | 573 lbs. |
Machine Style........... Floor Drill W/Adjustable Table
Drive Type........... Step Pulley Belt Drive
Number of Speed Steps........... 10
Spindle Speeds (RPM)........... 170, 265, 340, 415, 530, 650, 1035, 830, 1300, 2070
Column to Spindle Center (in)........... 11.81
Spindle Nose........... 3MT
Spindle Travel (in)........... 5.91
Quill Feed........... Manual
2 Feed Range (in/rev)........... N/A
Spindle to Work Surface Min/Max. (in)........... 4.13 / 50.59
Column Diameter (in)........... 4.92
Adjustable Table Surface (in)........... 15.75 x 18.9
Work Table T-Slots (in)........... 1/2
Base Size (in)........... 26.8 x 16.5
Drill Capacity with Manual Feed (in)........... 1.26
E-Stop Switch........... Yes
Voltage........... 230 or 460
Phase........... Three
Motor Horsepower........... 1.8
Machine Weight (lbs.)........... 573
Machine Dimensions (WxDxH in)........... 20 x 32 x 76.8
Shipping Weight (lbs.)........... 683
Shipping Dimensions ships laying down (LxWxD in)........... 91 x 24 x 43.3
