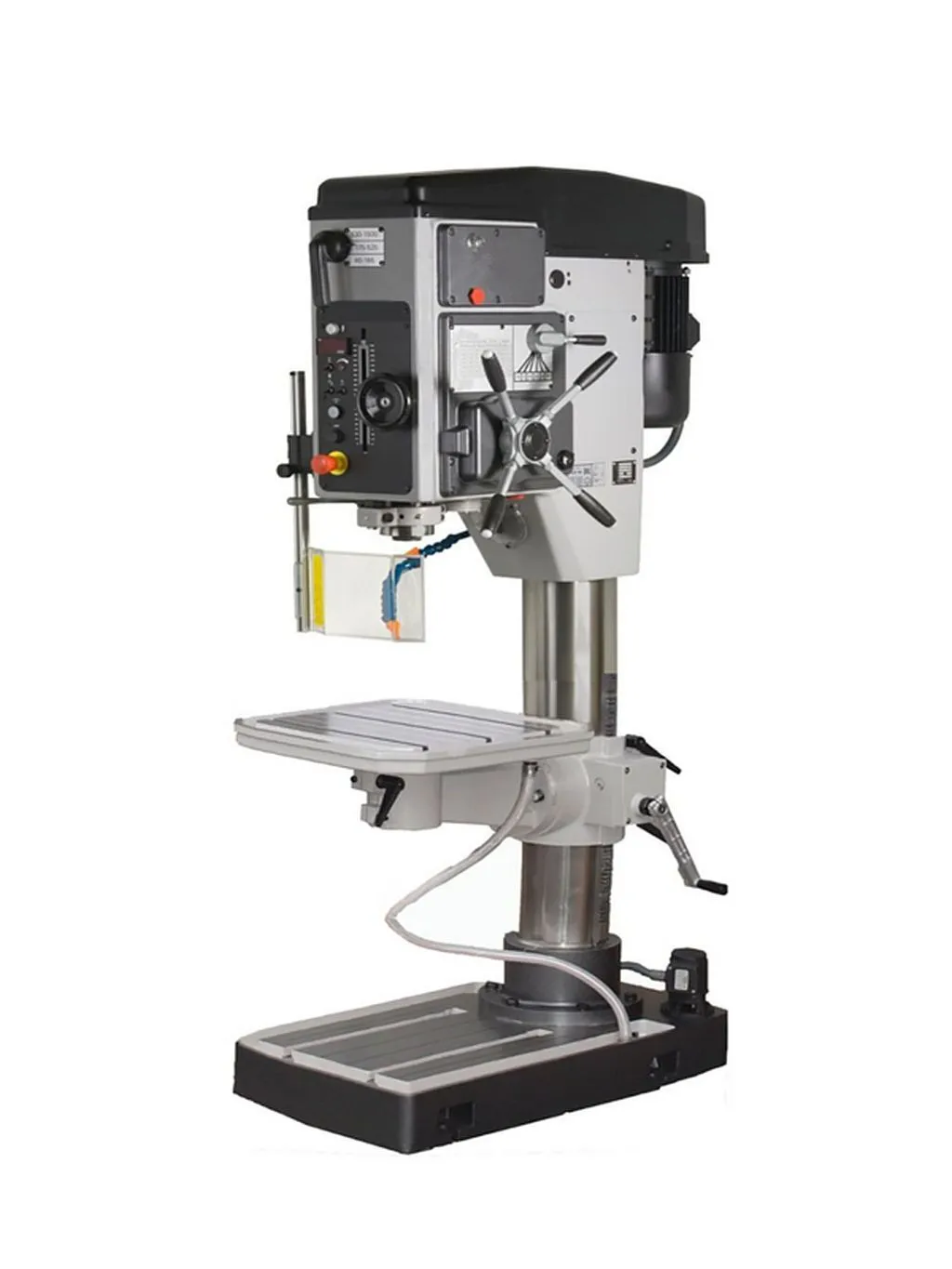

NEW 2025 CLAUSING IBARMIA BC50VE

Clausing Iberdrill 28.34” Floor Drill Press Belt Drive 3 Speed Gear Head Drive, Adjustable Rotating Work Table, 36 – 2280 RPM by electronic inverter variable speed, 3.46” diameter quill, 4MT taper spindle, Electromagnetic clutch quill feed, 5.5 hp spindle motor, 1.97” drill capacity steel, 230/460 volt 3 Phase voltage

Machine Style.......... Floor Drill W/Adjustable Table
Drive Type.......... Belt Head Drive Electronic Inverter Variable Speed
Number of Speed Steps.......... 3
Spindle Speeds Range 1 (RPM).......... 36 – 360
Spindle Speeds Range 2 (RPM).......... 108 – 1080
Spindle Speeds Range 3 (RPM).......... 228 – 2280
Column to Spindle Center (in).......... 14.17
Spindle Nose.......... 4MT
Spindle Travel (in).......... 7.87
Quill Feed.......... Electromagnetic Clutch
4 Feed Ranges (in/rev).......... 0.0039, 0.0079, 0.0118, 0.0157
Spindle to Work Surface Min/Max. (in).......... 1.57 / 26
Column Diameter (in).......... 6.89
Adjustable Table Surface (in).......... 21.65 x 21.65
Work Table T-Slots (in).......... 1/2
Base Size (in).......... 33.9 x 26.3
Drill Capacity with Manual Feed (in).......... 1.97
E-Stop Switch.......... Yes
Voltage.......... 230 or 460
Phase.......... Three
Motor Horsepower.......... 5.5
Machine Weight (lbs.).......... 1,675
Machine Dimensions (WxDxH in).......... 26 x 45 x 81.9
Shipping Weight (lbs.).......... 1,874
Shipping Dimensions ships laying down (LxWxD in).......... 91 x 28 x 51.2

Machine Features:

• Electronic inverter variable speed belt drive
• LED Speed Display
• 3 Speed Gear head with shift lever on the face of the drill
• Gear box lubrication by automatic pump
• Hardened and Ground high quality steel gears
• 5.5 Hp spindle motor
• Built in low voltage electrical equipment
• Depth scale and adjustable depth stop
• Electromagnetic clutch quill feed system
• Adjustable work table, rotating and tilting
• Work light
• Manual fine feed control handwheel
• Automatic spindle reversing system for tapping
• Thermomagnetic motor breaker switch
• Machined base with coolant tank
• Safety drill guard with microswitch
• Automatic tool ejector
• Emergency stop button
• CE mark

Optional Equipment:

Rotating table and tilting support

8" column riser

Automatic pitch control tapping with single speed brake motor

Automatic pitch control tapping with pneumatic rapid approach

Master guide spindle and nut set for automatic pitch control tapping

Pneumatic counterbalance with rapid approach and retract

Pneumatic counterbalance with rapid approach and retract for tube and profile drilling

Pneumatic counterbalance with rapid approach and retract with pitch controlled tapping

50% lower feed range

Mechanical spotface device

Pneumatic counterbalance

Multi-spindle head guide rod

Union, dragging cone and assembly for multi-spindle head

START-STOP and emergency STOP pendent control

Cross slide table

Worklight with magnetic base

Cycle start foot pedal

Foot pedal for reversing

Coolant system with independent container
