Wysong 1025 Mechanical Power Squaring Shear #7902 #2, used. Specs: 1/4” x 10’ capacity, 55 strokes/min, 15 HP motor. Equipped with programmable power back gauge, Toshiba inverter, squaring arm, dual front supports. Dimensions: 205”L x 88”W x 70”H. Weight: 19,000 lbs.
| Max Thickness | 0.25" | 6.35 mm |
| Length of Blade | 10' | 3 m |
| Hyd/Mech | Mech | Mech |
| Back Gauge | 36" | 914.4 mm |
| Power | 15 hp | 11.2 kW |
| SPM | 55 strokes/min. | 55 strokes/min. |

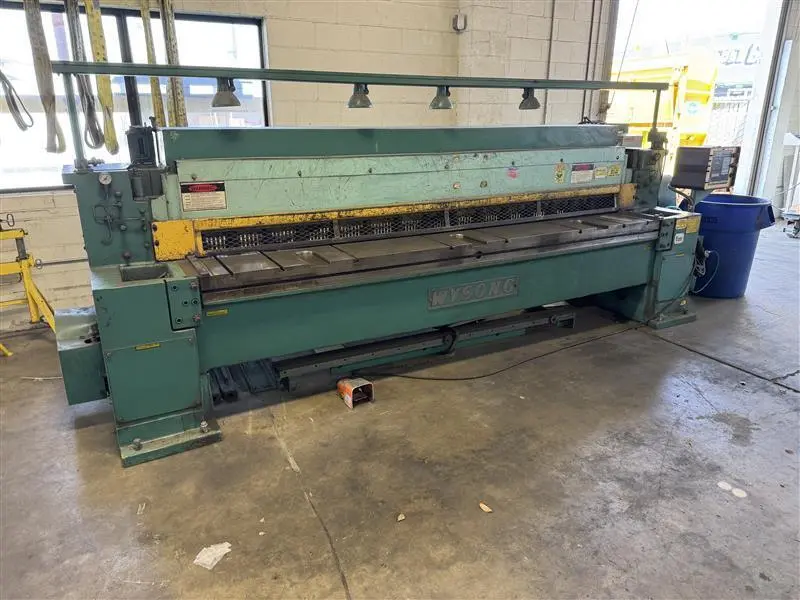

WYSONG 1025 Mechanical Power Squaring Shear #7902 #2
SPECIFICATIONS:
Capacity (Mild Steel): 1/4” X 10’
Strokes Per Minute: 55
Rake Angle: 3/8” Per Foot
Back Gage Range: 0.5 To 36”
Main Motor Horsepower: 15
Approximate Overall Weight: 19,000 LBS
Approximate Overall Dimensions: 205” L X 88” W X 70” H
EQUIPPED WITH:
Wysong PC 100 Programmable Power Back Gauge
Toshiba Inverter
Slots In Table
Squaring Arm
Dual Front Supports
Flush Floor Design
