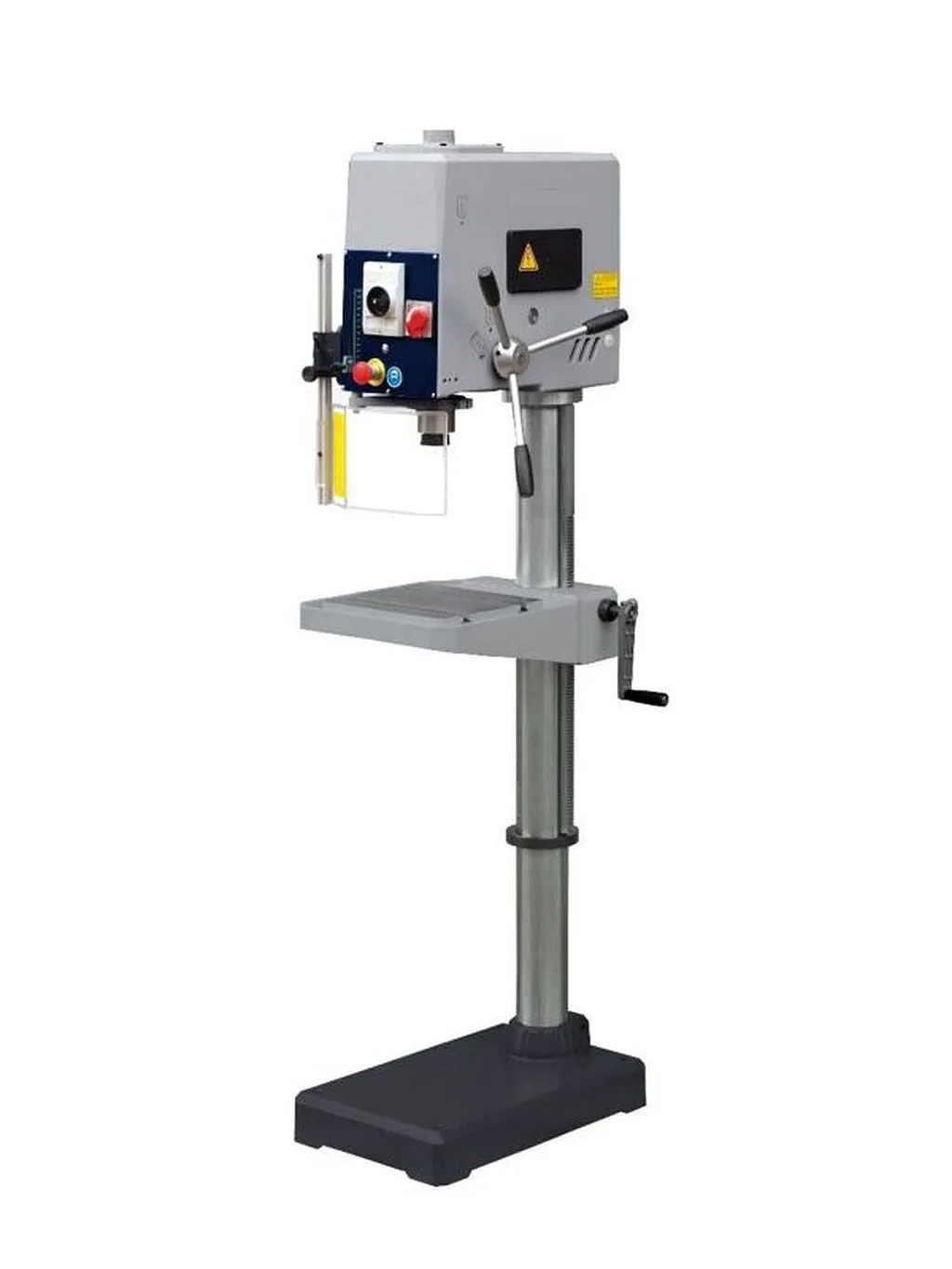

NEW CLAUSING IBARMIA KL25EV

Specifications:
• Machine Style..........Floor Drill W/Adjustable Table
• Drive Type..........Electronic Inverter Drive
• Number of Speed Steps..........Infinite
• Spindle Speeds (RPM)..........300 – 4800
• Column to Spindle Center (in)..........9.84
• Spindle Nose..........3MT
• Spindle Travel (in)..........4.72
• Quill Feed..........Manual
• Spindle to Work Surface Min/Max. (in)..........4.13 / 25.2
• Column Diameter (in)..........3.94
• Adjustable Table Surface (in)..........10.6 x 11.8
• Work Table T-Slots (in)..........1/2
• Base Size (in)..........24 x 15
• Drill Capacity with Manual Feed (in)..........1
• E-Stop Switch..........Yes
• Voltage..........230 or 460
• Phase..........Three
• Motor Horsepower..........1 1/2
• Machine Weight (lbs.)..........408
• Machine Dimensions (WxDxH in)..........20 x 32 x 75.8
• Shipping Weight (lbs.)..........496
• Shipping Dimensions ships laying down (LxWxD in)..........84 x 24 x 36

Machine Features:
• Belt Drive – electronic inverter
• Depth scale and adjustable depth stop
• Adjustable work table
• Work light
• Manual spindle reversing switch
• “RS” Models are equipped with automatic
• spindle reversing system for tapping
• Thermomagnetic motor breaker switch
• Low voltage electric equipment
• Safety drill guard with microswitch
• Automatic tool ejector
• Emergency stop button
• CE mark
