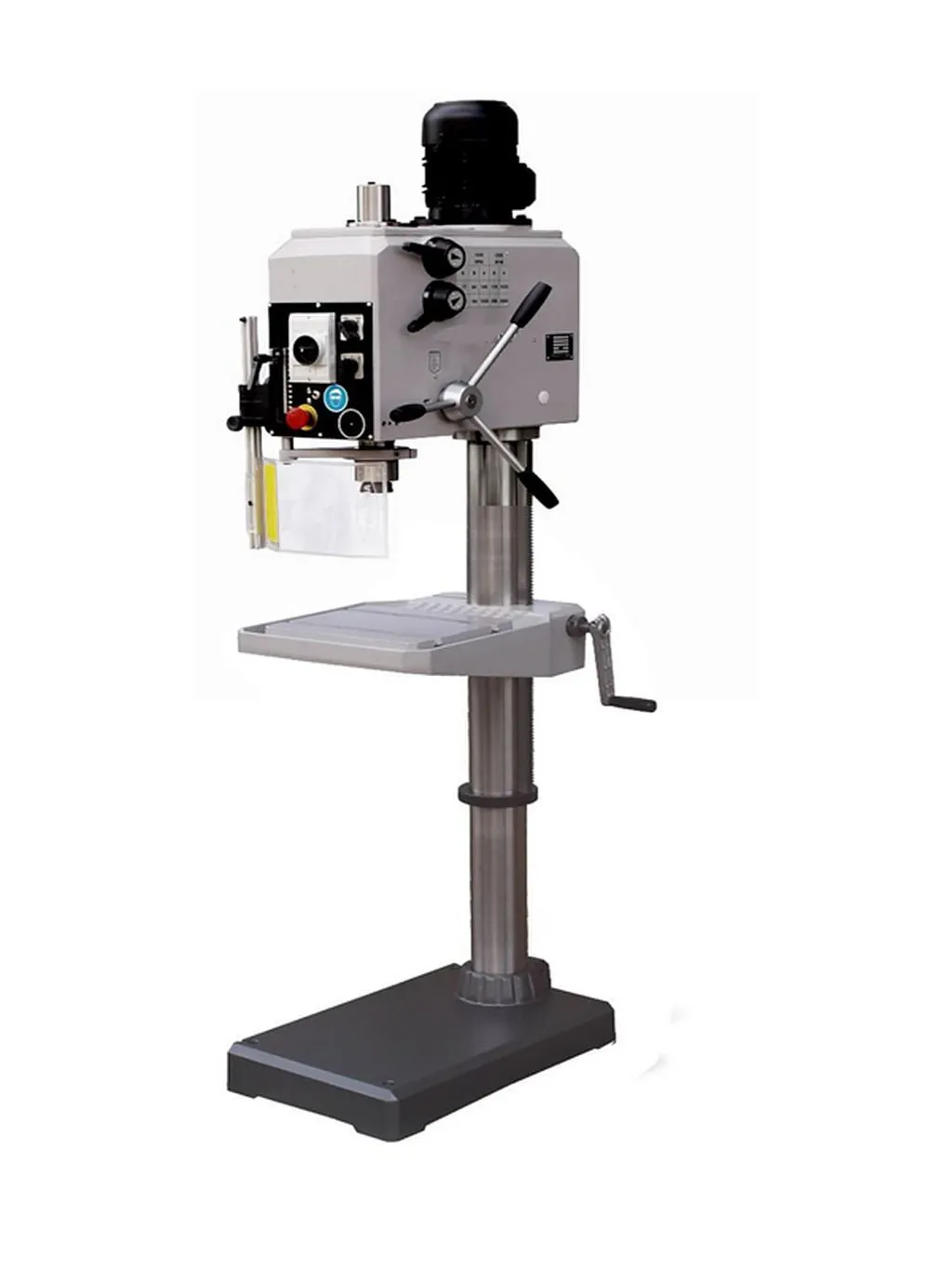

NEW 2025 CLAUSING TL25
Overview
Clausing IberDrill Geared Head Drill Press with state of the art technology, allows you to select the best rpm for the tool with easy to use shift handles. 8 speeds 90 – 3360 rpm for drilling large holes, small holes to spot-face, counter-bore and ream. 2 Speed selector switch for greater capacity production rated 1” in steel 1.18” in cast iron, Adding to the end of the model number “RS” adds the automatic tapping feature to this drill press. By setting a limit stop once the quill reaches this the spindle will automatically reverse. 230 or 460 volt 3 phase voltage.
Specs
Specifications:
• Machine Style..........Floor Drill W/Adjustable Table
• Drive Type..........Geared Head
• Number of Speed Steps..........8
• Spindle Speeds (RPM)..........90, 192, 300, 504, 612, 1020, 1740, 3360
• Column to Spindle Center (in)..........9.84
• Spindle Nose..........3MT
• Spindle Travel (in)..........4.72
• Quill Feed..........Manual
• Spindle to Work Surface Min/Max. (in)..........4.13 / 25.2
• Column Diameter (in)..........3.94
• Adjustable Table Surface (in)..........10.6 x 11.8
• Work Table T-Slots (in)..........1/2
• Base Size (in)..........24 x 15
• Drill Capacity with Manual Feed (in)..........1
• E-Stop Switch..........Yes
• Voltage..........230 or 460
• Phase..........Three
• Motor Horsepower..........1 1/2
• Machine Weight (lbs.)..........408
• Machine Dimensions (WxDxH in)..........20 x 32 x 75.8
• Shipping Weight (lbs.)..........496
• Shipping Dimensions ships laying down (LxWxD in)..........84 x 24 x 36
Machine Features:
• Geared Head Speed Drive – with 8 step speeds
• High/Low speed range selector
• Depth scale and adjustable depth stop
• Adjustable work table
• Work light
• Manual spindle reversing switch
• “RS” Models are equipped with automatic spindle reversing system for tapping
• Thermomagnetic motor breaker switch
• Low voltage electric equipment
• Safety drill guard with microswitch
• Automatic tool ejector
• Emergency stop button
• CE mark
